Fitting the CLR-...
S Place the CLR-... so that no objects project into the swivel range of the
clamping finger.

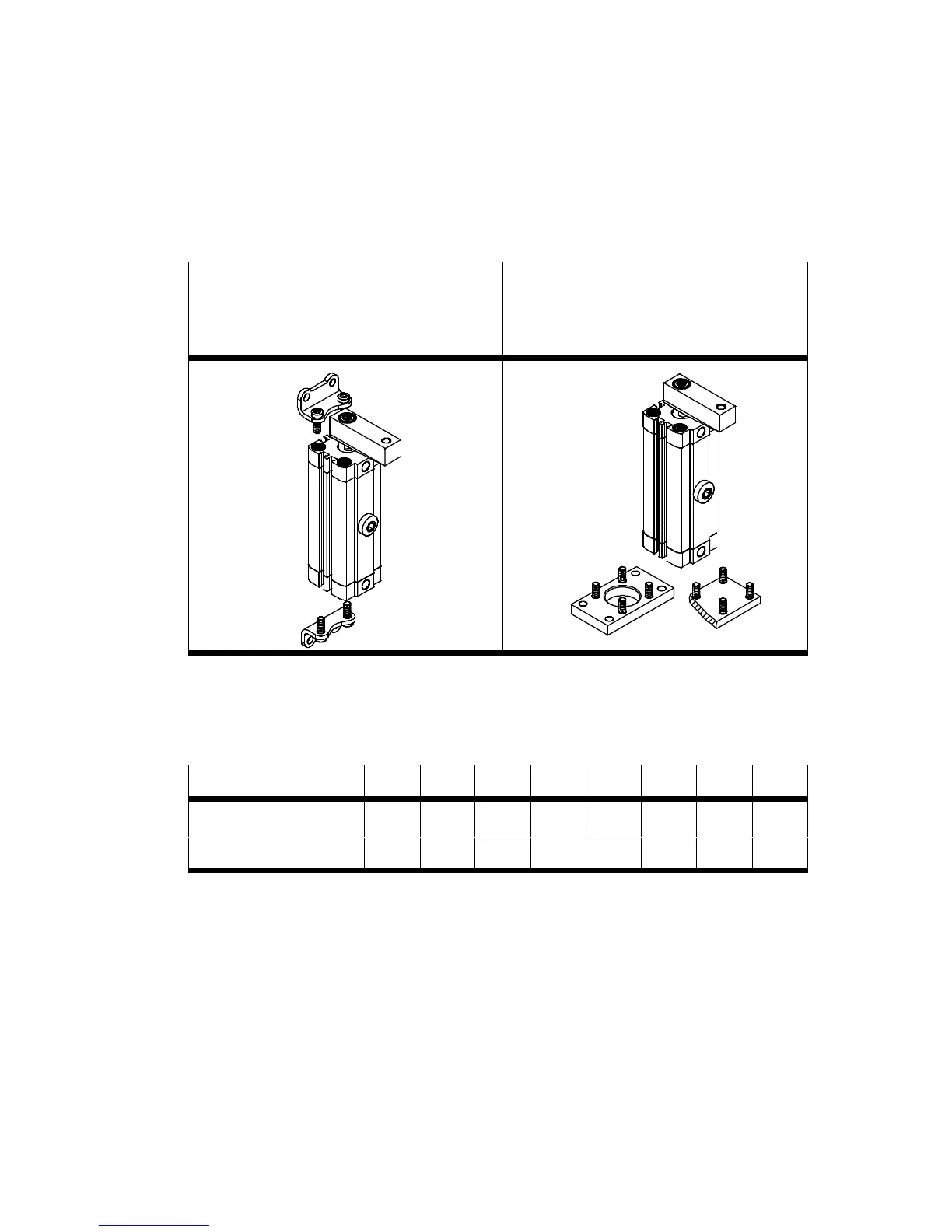

S Select one of the fastening possibilities listed in the following table.
Double screw connector with foot
fastening type HNA-... in the threaded
holes of the cover screws
With four screws in the threaded
holes of the cover screws:
– with flange mounting type FNC-...
– direct fastening
Bild 13
The different product sizes have connector threads of the following design and
with the following tightening torques:
CLR-...
12 16 20 25 32 40 50 63
Connecting thread M4 M4 M5 M5 M6 M6 M8 M8
Tightening torque [Nm] 3 3 5 5 8 8 23 23
Bild 14
S Tighten the screws evenly.
