CLR
Festo – CLR – 2017-05e English 9

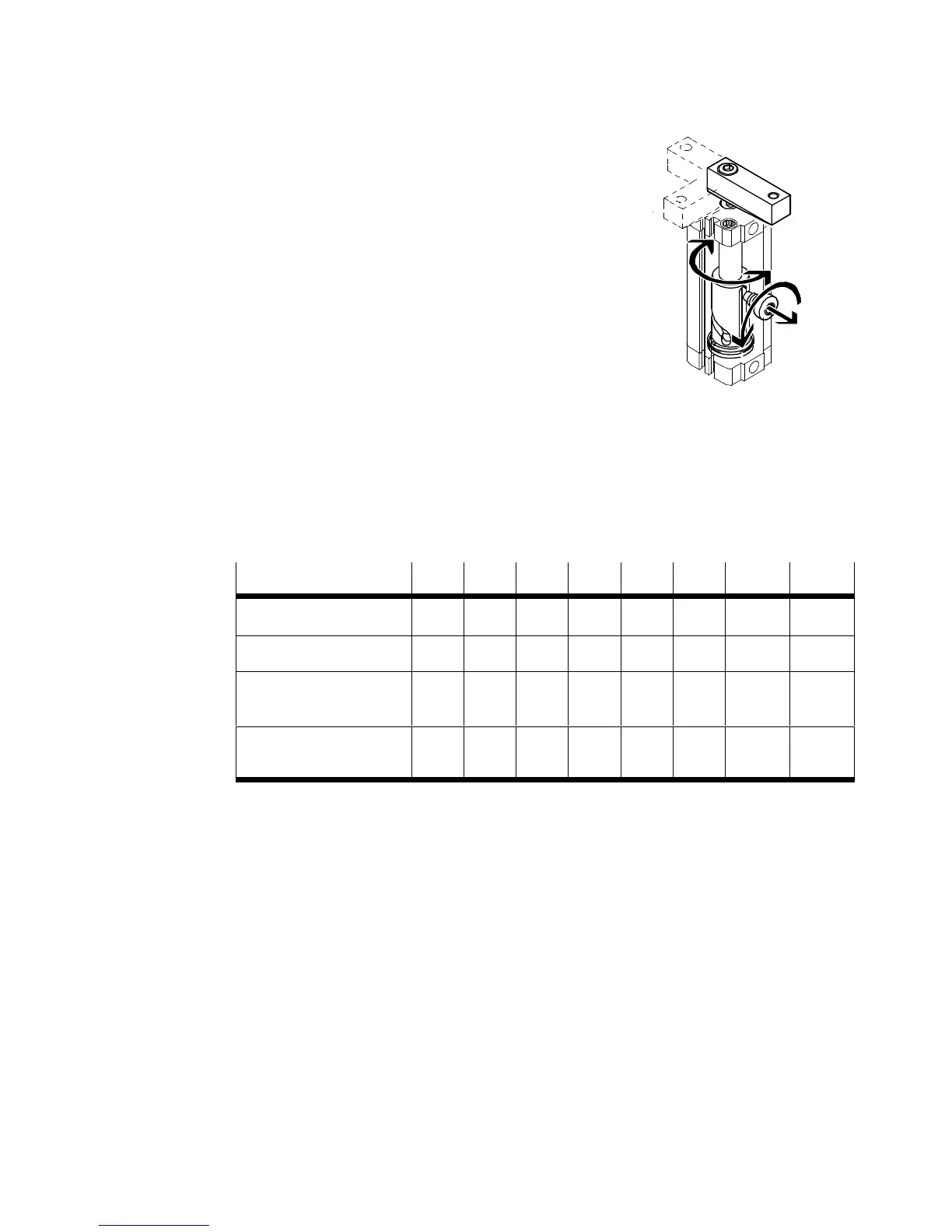

In order to modify the swivel movement:
1. Unscrew and remove completely the
guide bolt from the cylinder housing of
the CLR-... The piston rod can then be
turned freely with the clamping finger.
2. Swivel the clamping finger to the desired
groove in the guide sleeve.
The search for the groove is facilitated if a
bolt is pushed into the threaded hole in
the guide bolt at the same time. Please
refer to the following table for the
necessary bolt diameter.
3. Screw the guide bolt in again completely. When doing this note the following
points:
– Check that the seal on the guide bolt is positioned correctly.
– The guide bolt must be locked with Loctite 24333.
– Observe the tightening torque as specified in the following table:
CLR-...
12 16 20 25 32 40 50 63
Bolt diameter [mm] 2.5 2.9 5.9 5.9 5.9 6.9 7.9 8.9
Thread M4 M4 M8 M8 M10 M10 M12x1 M12x1
Width across flats
(A/F) (guide bolt)
3 3 5 5 6 6 8 8
Tightening torque [Nm]
(+20 %)
2.5 2.5 6 6 20 20 40 40
Bild 12
Bild 11
