Linear swivel clamp type CLR-...
1 Operating elements and connections
For all available product documentation è www.festo.com/pk
1
2
3
4
5
6
7

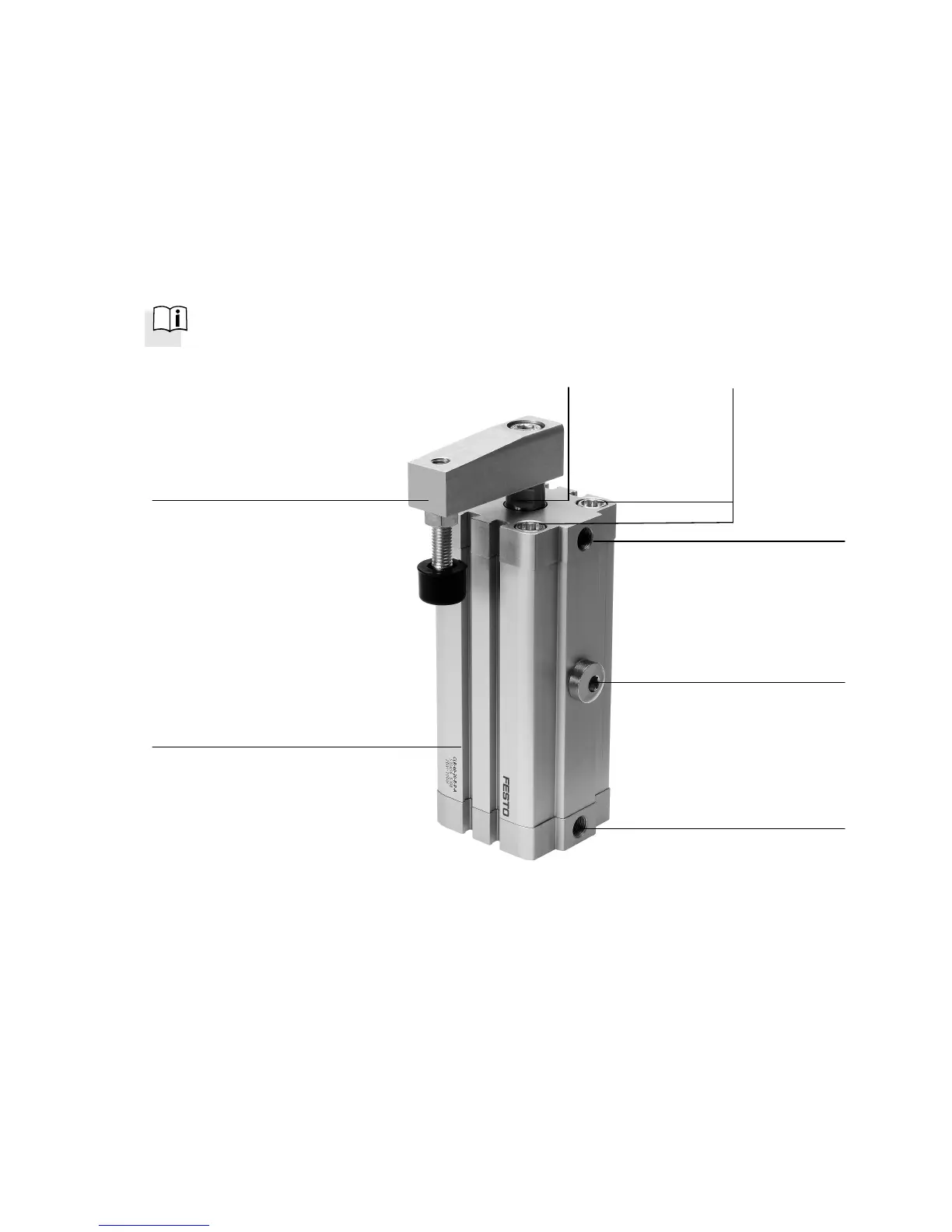

1 Compressed air connection for clamping
2 Guide bolt for motion control of the
linear and swivel movements
3 Compressed air connection for releasing
4 Groove for proximity switch
5 Clamping finger set with clamping
screw (not included in delivery)
6 Spanner flat on the piston rod
7 Flange screws with threaded holes for
fastening
Bild 1
