Start up
46 -transfer system
The modules can be connected via I/O, ASI or Profibus. The systems are described in
the following. The operation panel and the module distributor are described in the
next chapter.

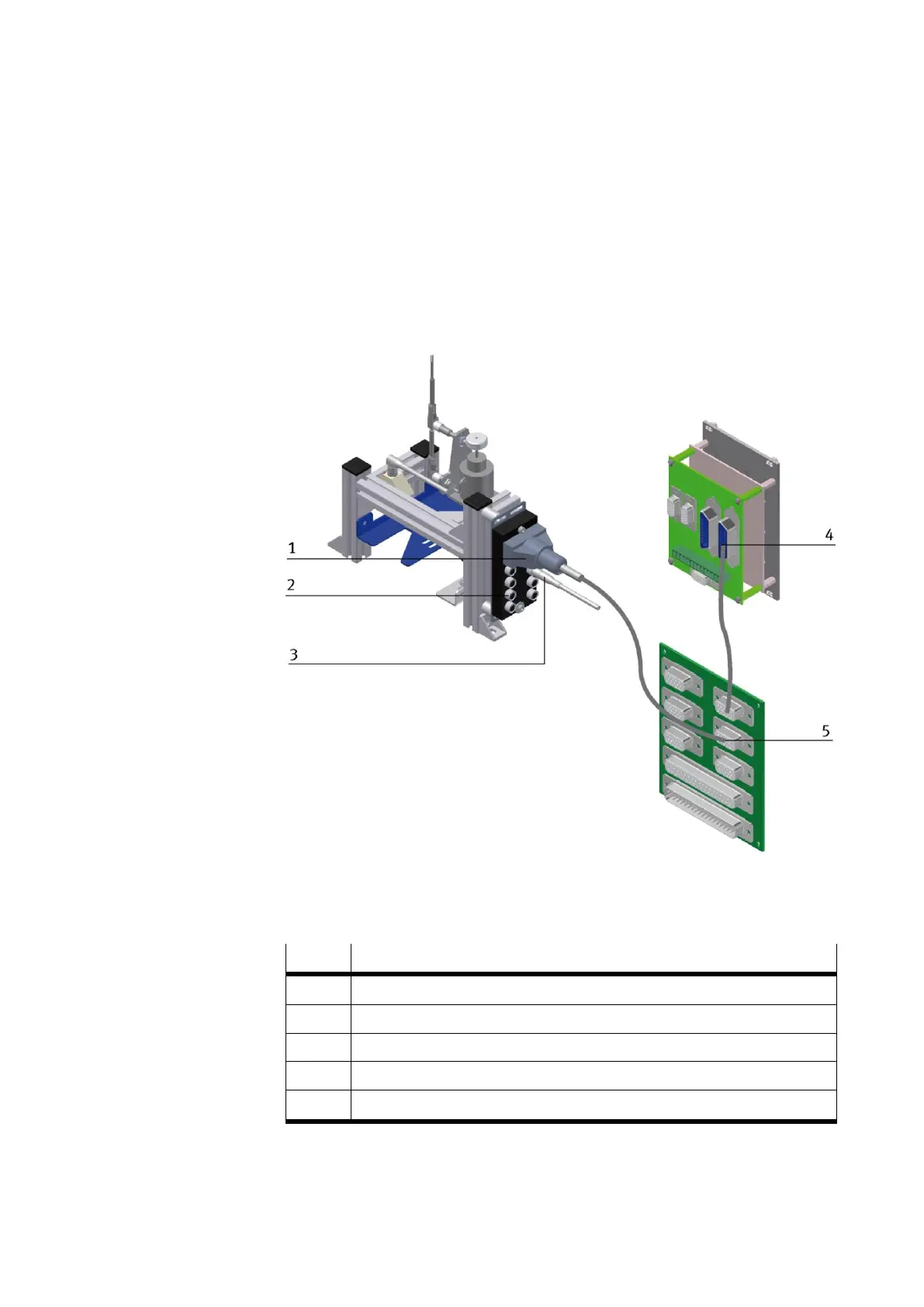

Electrical connection with I/O
Pos.
Description / function
1
Cable with Sub-D connector
2
Mini-Terminal (378355)
3
Plugs for sensors and actuators of the modules
4
Plug for module if a operation panel is used
5
Plug for a module if a module distributor is used
Connection via Sub-D plugs
