Start up
© Festo Didactic GmbH & -transfer system 47

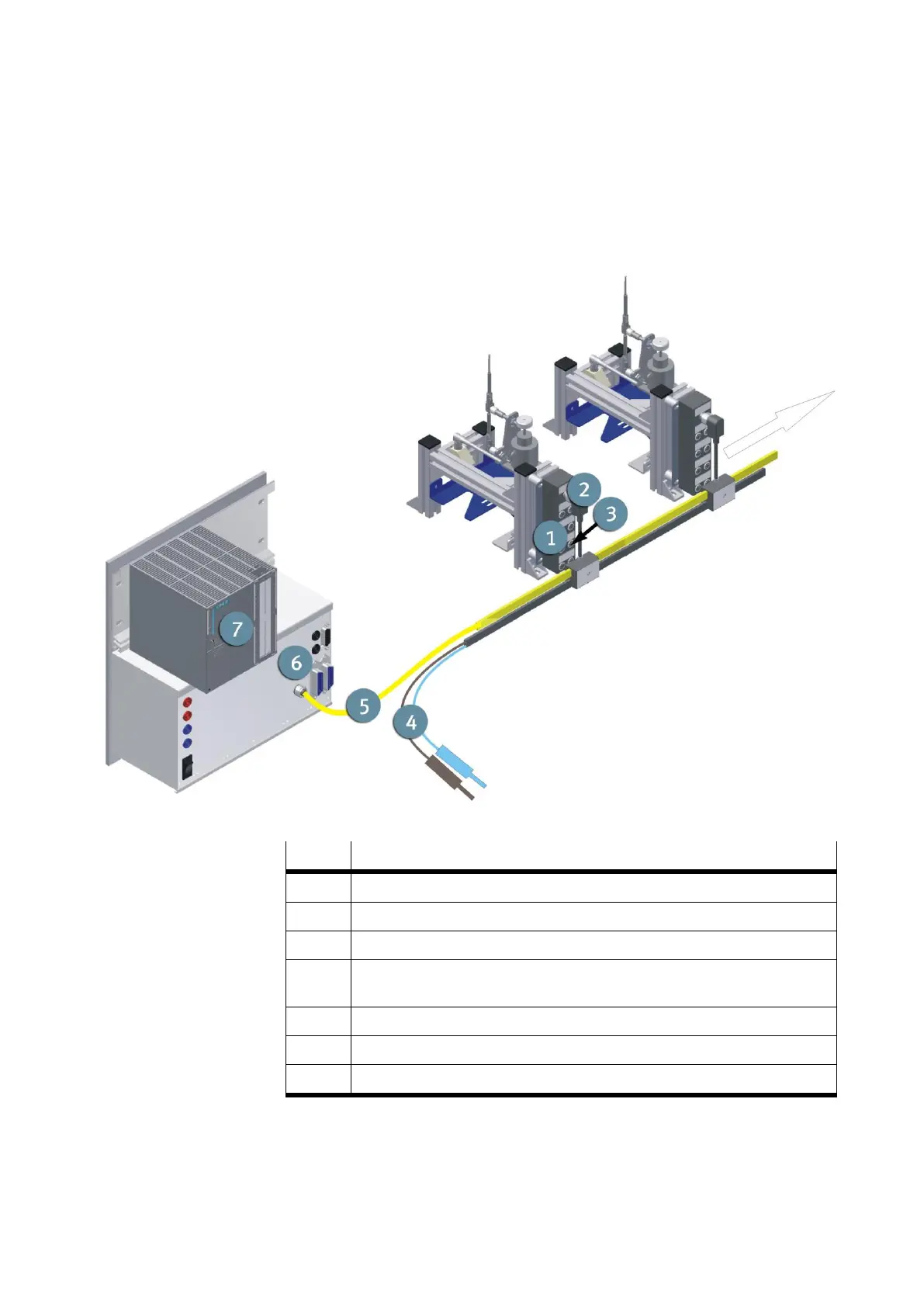

Electrical connection with AS-Interface
Pos.
Description / function
1
Mini-terminal with ASi Interface (56419)
2
AS-I adapter cable 3RK1901-1NR21
3
Plugs for sensors and actuators of modules
4
Power supply for ASI-Bus (24V)  if a emergency stop system is used, take care that this
cable is also integrated
5
AS-I cable
6
AS-I Module EDU TRAINER
7
PLC with AS-I card
Because a AS-I filter is integrated in the Edu Trainer there is no AS-I powers supply
unit necessary. Connect the black cable to 24 V for power supply.
