Specified switch-on sequence
Application Note Quick Start Guide for fault clearance and troubleshooting 1.10 Seite 9 von 16
4 Specified switch-on sequence
The specified sequence during start-up is essential for fault-free operation and must be followed at all times.
Further information
Operating pressure
Compressed air quality
Operating voltage (switch-on sequence)
Operating voltage (specification)
Enable signal
Specifications of the enable signals
Operational principle of the NECA multi-pin
plug socket
4.1 Operating pressure
The operating pressure must be between 3.5 and 10 bar. Avoid pressure drop or pressure fluctuations. Short-term
pressure drop when switching on due to a line cross-section that is too small or excessive air consumption before
the MS6-SV may cause malfunction. A sufficient compressed air supply is required for the function of the pilot
valves. If the supply is not sufficient, the valve will output error code 6.
Note
It is important always to apply the operating pressure first during start-up of the system.
Operating pressure
3,5 to 10 bar
Yes
No
Check pressure
supply
Operating voltage
24 V DC +/- 10%
Yes
No
Only when the LED flashes green is the valve ready
for operation and the next step can take place.
Enable signal
Observe specification
Valve ready for operation and connected
through
LED lights green
Check supply
voltage
Check enable
signals
Yes
No

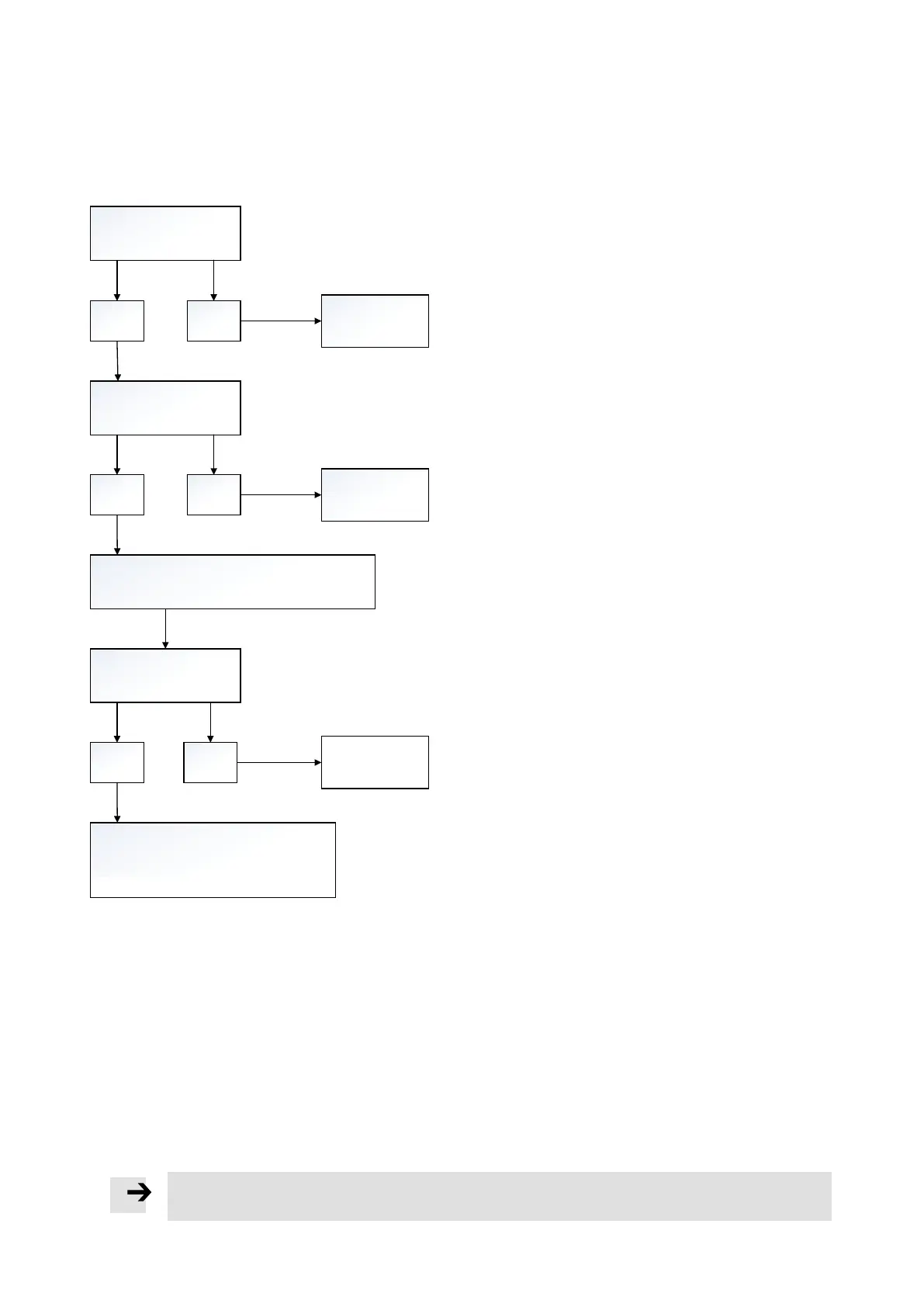

Fig. 1: Switch-on sequence
