Festo MS6 SV E 10V24 Series User Manual

1

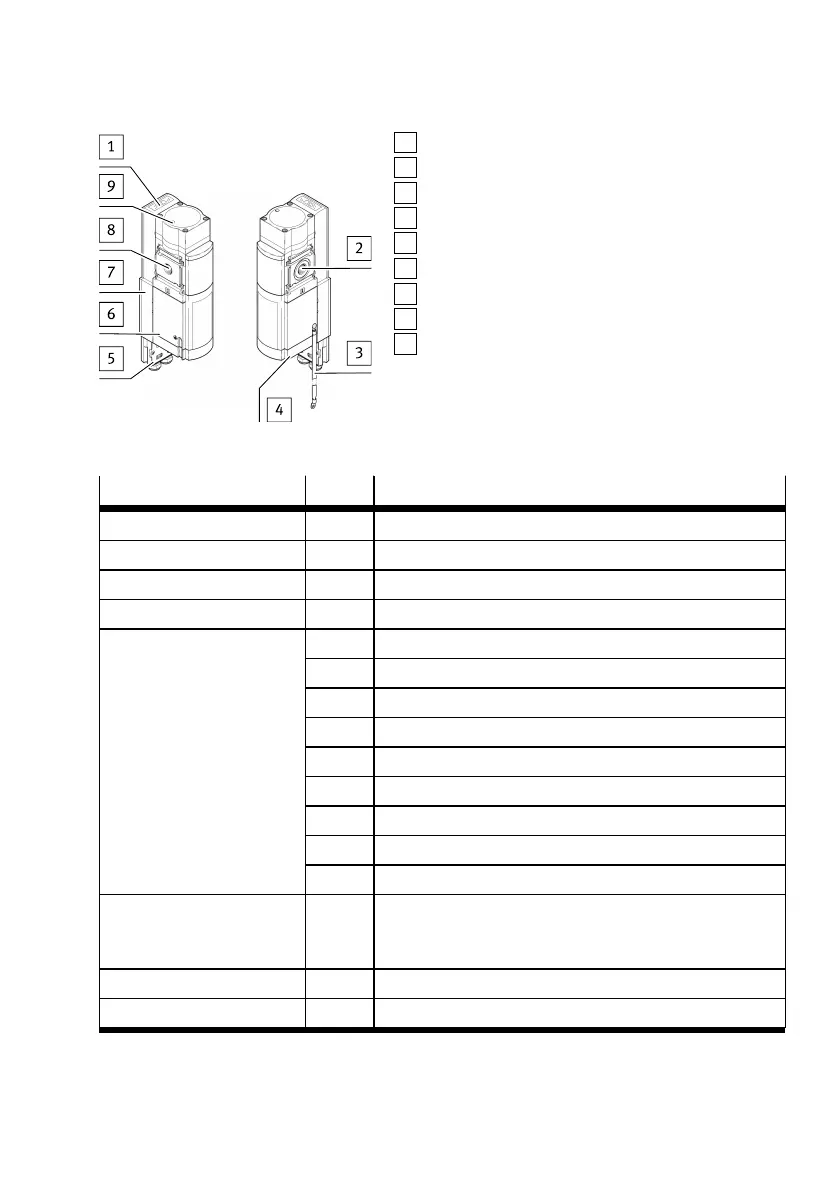

LED display (Power LED and Error LED)
2
pneumatic port 2 (compressed air outlet port)
3
pre-assembled earthing strap
4
pneumatic port 3 (exhaust)
5
Multi-pin plug socket NECA (accessories)
6
Mono-block valve
7
Electronic insert
8
pneumatic port 1 (compressed air inlet port)
9
Flow control screw for soft start function
Fig. 1 Product design
Feature Code Type
Series M Modular
Power class S Standard
Size 6 Housing width 62mm
Function – SV Soft-start/quick exhaust valve, electric
– 1/2 G1/2
– AGB G1/4
– AGC G3/8
– AGD G1/2
– AGE G3/4
– AQN NPT1/4
– AQP NPT3/8
– AQR NPT1/2
Connection size
– AQS NPT3/4
Performance level – E In accordance with EN ISO 13849-1, category 4
2-channel with self-monitoring, safety device in accordance
with EC Machinery Directive 2006/42/EG
supply voltage – 10V24 24VDC
Options
1)
– SO Silencer open
Product Overview
7Festo — MS6-SV-...-E-10V24 — 2019-10d
