2.1.1 Fitting onto a wall
Proceed as follows:
1. Make sure that the fastening surface can support the
weight of the CPV-SC valve terminal.
2. Make sure there is sufficient space for connecting the
compressed air supply tubing.

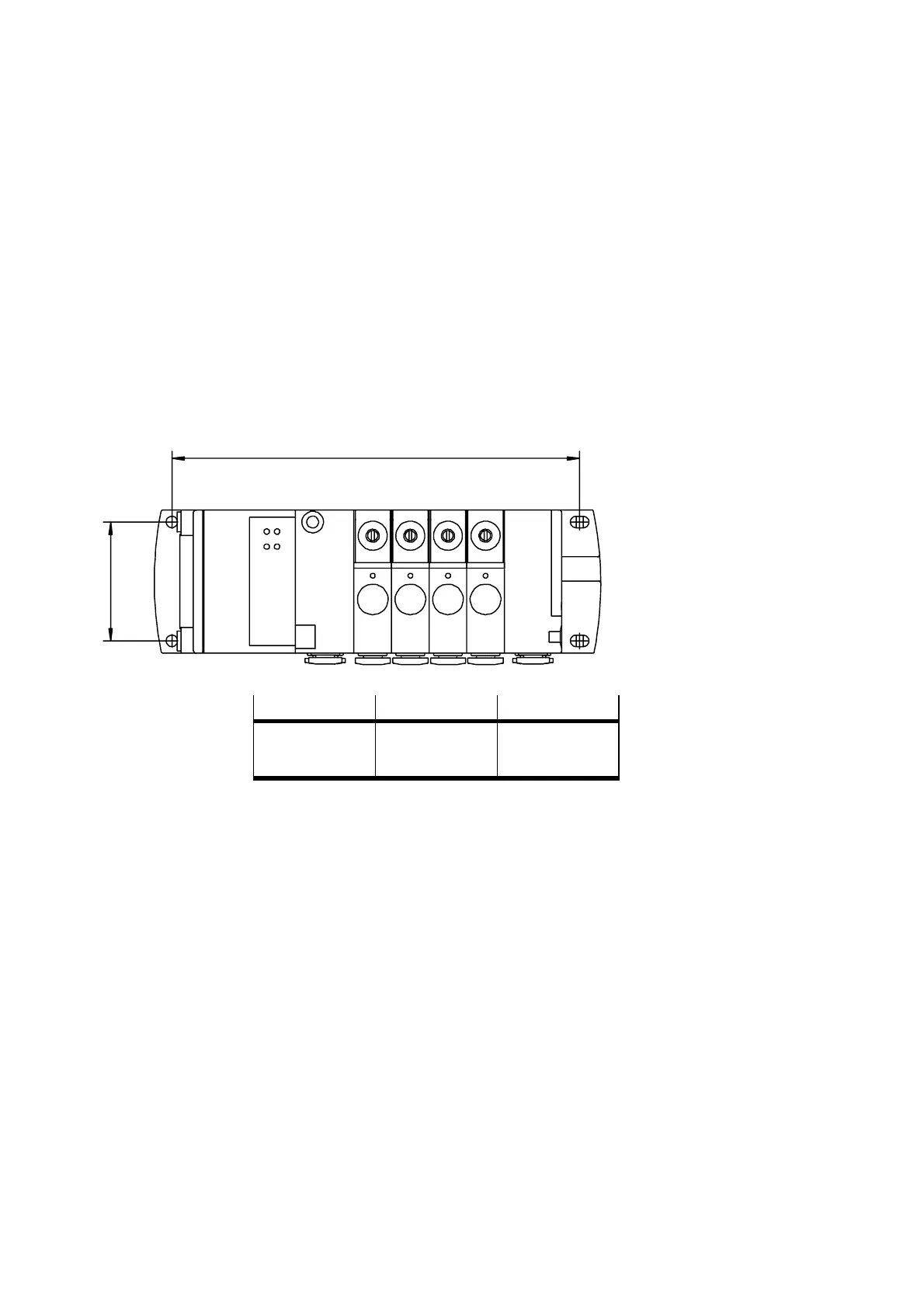

3. Bore 4 fastening holes with 3.2 mm diameter or threaded
holes for M3 screws in the fastening surface (distance
between holes see table):
L2
L1
Valve locations L1 L2
4
8
12
33.2 mm
114 mm
156 mm
198 mm
• Then fasten the CPV-SC valve terminal with four M3
screws of sufficient length to the wall (tightening torque
0.6 + 0.2 Nm).
