A. Technical appendix
A-9
Festo P.BE-CPVSC-EN en 0112NH
A.3 Overview of end plates
Please note
The numbers in the following circuit diagrams are the des-
ignations for the connections, coils and manual overrides.
For example, designation 14 stands for manual override 14
or for coil 14. These are not logic designations.

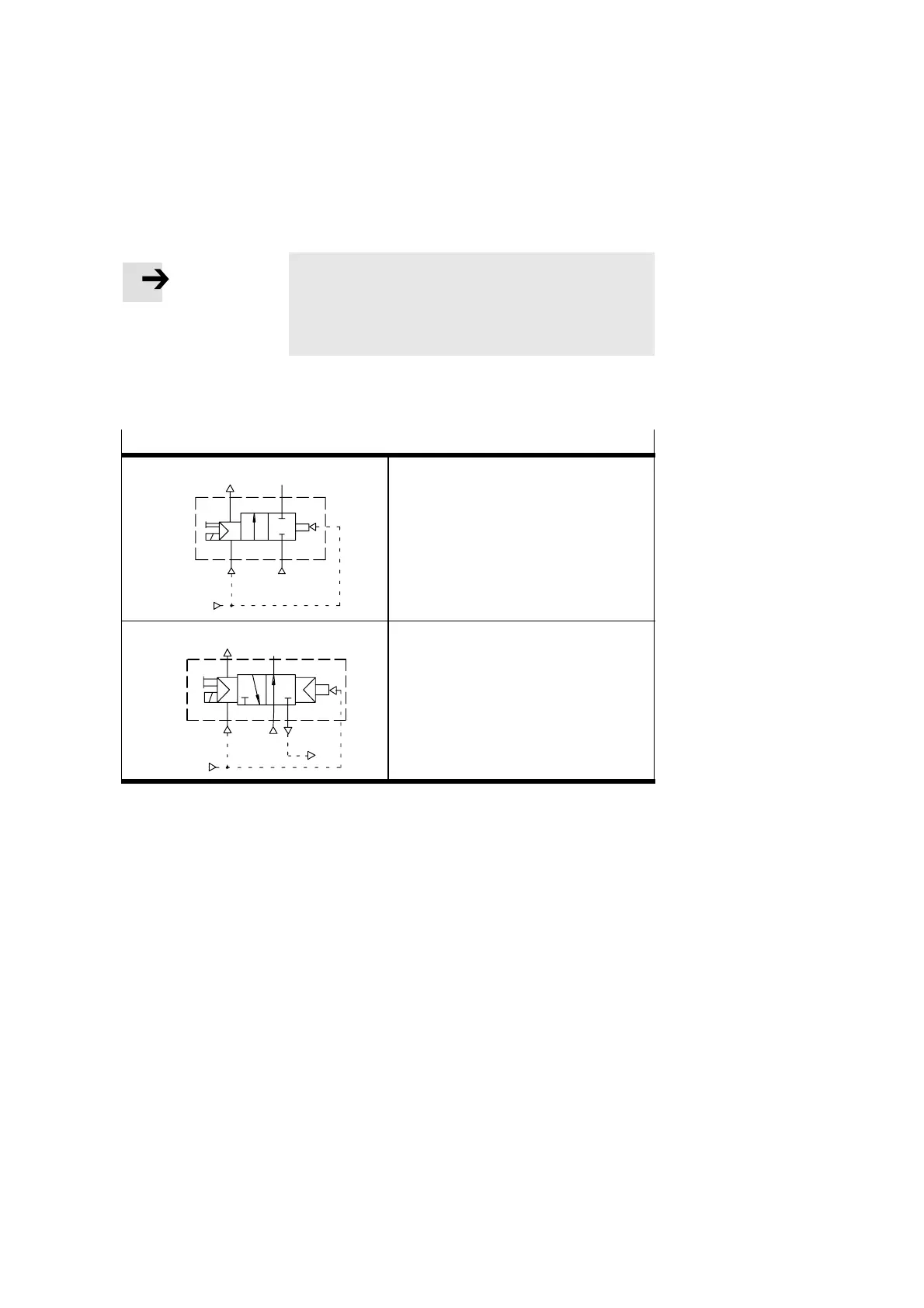

The following valve sub-bases are available for the CPV-SC
valve terminal:
Valve sub-bases
12/14
14
82/84 2
1
Ident. Code D
Method of operation
– Two single-solenoid 2/2-way va lves blocked in
basic position, pneumatic spring reset
14
82/84
2
12/14
1
3
3/5
Ident. Code N
Method of operation
– Two single-solenoid 3/2-way valves open in
basic position, pneumatic spring reset
