3. Installation
3-11
Festo P.BE-CPVSC-EN en 0112NH
1
223
4
5
6
3
21
1
4
22
12/14
3/5
1
4
82/84
1 End p lates
2 Valve sub-bases
3 Separator plates with additional
supply
4 Pressure zone 1
5 Pressure zone 2
6 Pressure zone 3

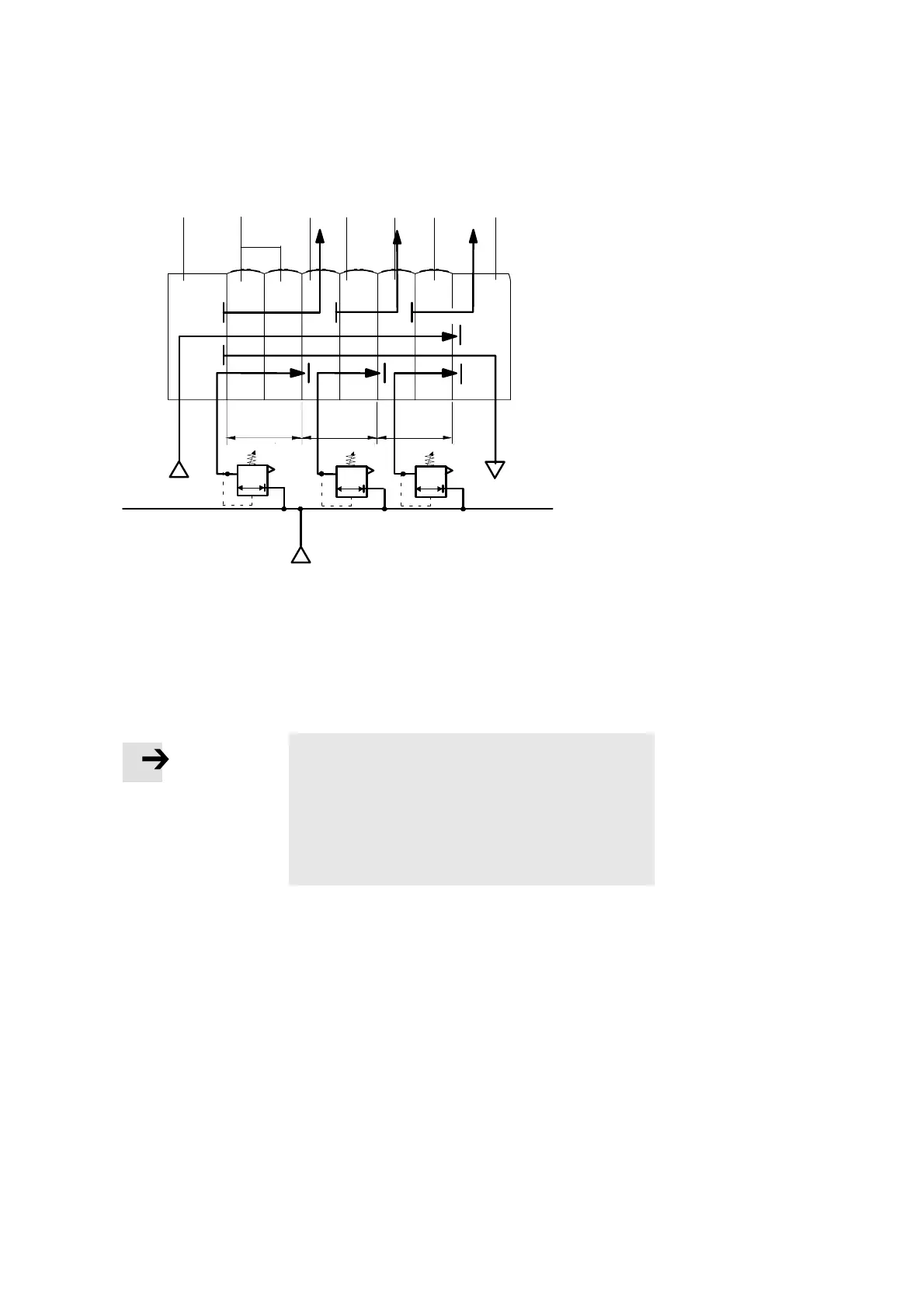

Fig. 3/3: External pilot air and separation of pressure zones
Please note
– Makesurethatpressurezones,whicharesuppliedvia
separator plates, are sufficiently pressurized or ex-
hausted.
If there are more than two valve functions per pressure
zone, additional compressed air supply/exhausting may
be required (additional pressure supply plate Ident.
Code: U). This occupies one valve location.
