3. Installation
3-13
Festo P.BE-CPVSC-EN en 0112NH
1
3/5
2
4
82/84
12/14
Connection code
ISO 5599
Tubing
Connection size
Position and type of
connection
1 Compressed air/
vacuum
M7/QS6 Screw connector in the
left-hand end plate
12/14 Auxiliary pilot air M5/QS4 Screw connector in the
left-hand end plate
3/5 Exhausted M7/QS6 Connections in the right-
hand end plate
– for ducted exhaust air
–forsilencers
82/84 Exhausting the auxili-
ary pilot air
M5/QS4 Connections in the right-
hand end plate
– for ducted exhaust air
–forsilencers
2or4 Work air/vacuum M5/QS4/QS3 Screw connector

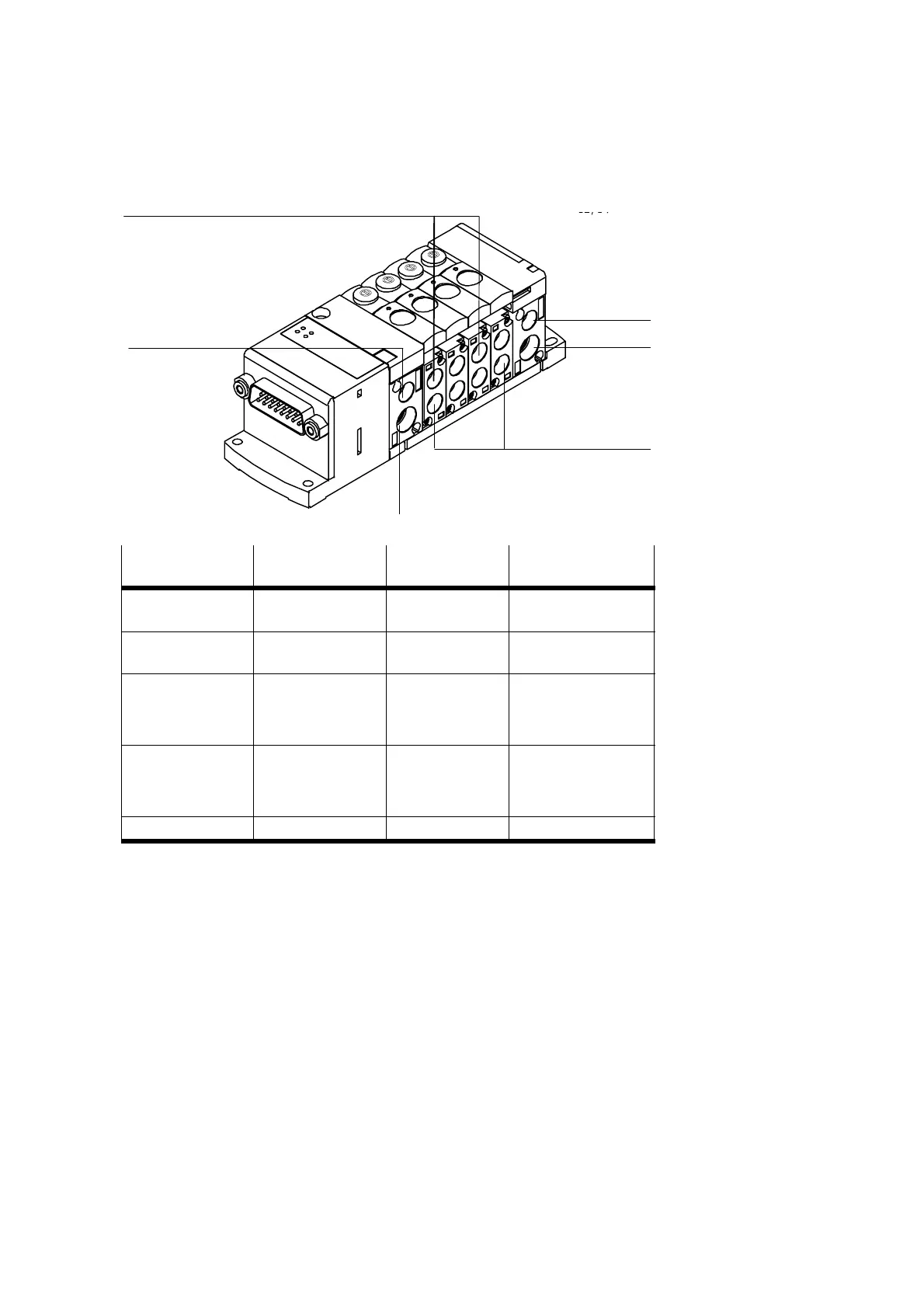

Fig. 3/4: Assignment of connections
