Per corner connector:
1 x anchor bolt including DOMINO connector cover
1 x transverse anchor including stud
1 x expansion bolt
Optional: 1 x cover cap in silver, light brown or dark brown
The corner and flat connectors are always processed with
the 14 mm router on the DF 700.
For corner connectors, you need the following components from the
DOMINO corner and flat connector system:
1. Anchor bolt
2. Self-drawing expansion bolt – for
a secure hold in the workpiece.
3. Transverse anchor including stud
4. DOMINO connector covers – clipped
around double-headed or anchor
bolts. Items included with
double-headed or anchor bolts.
Only suitable for joining timber or timber-like materials in furniture construction (no lightweight
building materials!) The DOMINO connector is only a connecting element, not a load-bearing
element. Observe minimum routing depths and edge distances! For indoor use only!

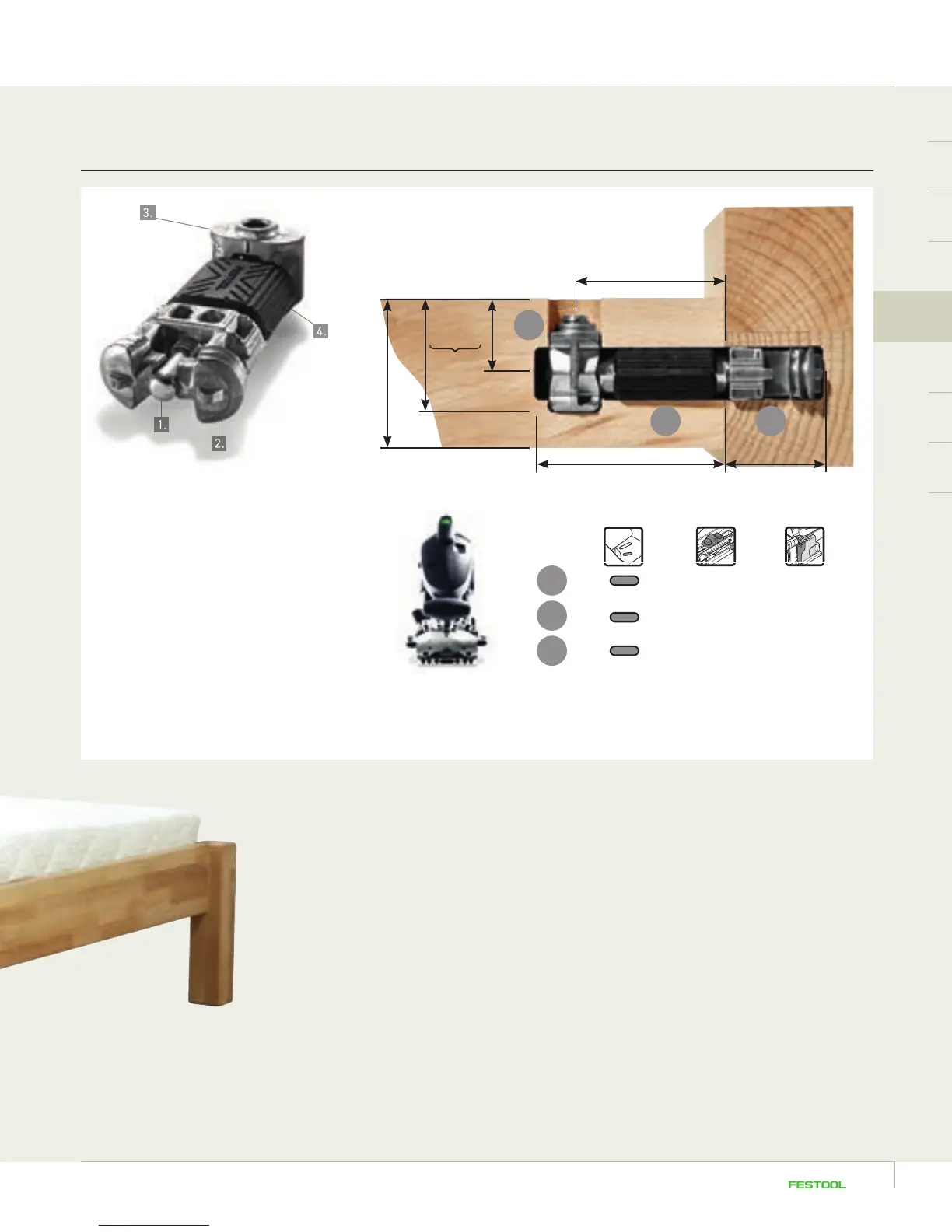

Dimensions for routing the
DOMINO corner connector
40
x + min. 10
min. 25
min. 25
50 25
x
y
Hole width Routing depth Routing height
25 mm ~y/2
50 mm ~y/2
x + min. 10 mm;
min. 25 mm in
total
40 mm
2016_FES_DOMINO_Book_GB-en.indb 59 03.03.16 12:13

Festool DOMINO Specifications

General

Motor Power	420 W
Dust Extraction Connection Diameter	27 mm
Power Source	Corded Electric
Cutting Depth	15 mm, 20 mm, 25 mm, 28 mm
Cutter Diameter	5 mm, 6 mm, 8 mm, 10 mm
