Go to fetco.com for the latest versions of all information Page 13 P167 March 2018

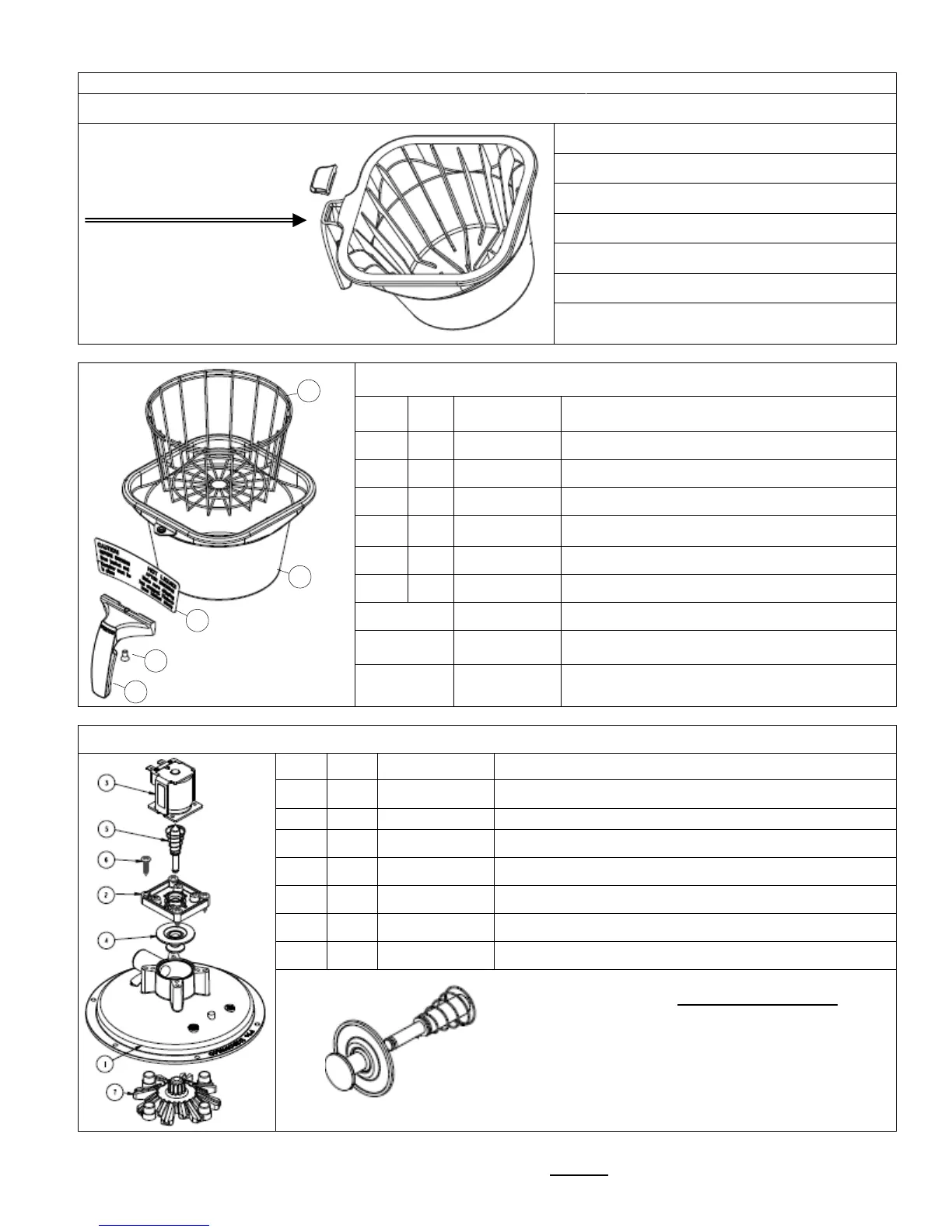

Brew Basket Parts
STANDARD Plastic Brew Basket
Part Number B015280BN2 – Complete Plastic Brew Basket CBS-1151 & CBS-1152 XV+
Brown colored insert
is standard
Brew basket
handle plug
for
polymeric
brew baskets is
available in optional colors.
Part Number Plug Insert color
1023.00195.00
BROWN PLUG, BB HANDLE
1023.00194.00
BLACK PLUG, BB HANDLE
1023.00190.00
RED PLUG, BB HANDLE
1023.00191.00
GREEN PLUG, BB HANDLE
1023.00192.00
ORANGE PLUG, BB HANDLE
1023.00180.00
BLUE PLUG, BB HANDLE
OPTIONAL Stainless Steel Brew Basket
Ref# Qty Part Number Description

B001280B1 COMPLETE STAINLESS STEEL BREW BASKET
1 1 1112.00058.00 BREW BASKET WELDMENT (CONE ONLY)
2 1 1046.00025.00 BREW BASKET WARNING LABEL
3 1 1082.00040.00 SCREW,1/4-20X.5,FL-HD,PH.,W/NYLON PATCH
4 1 1009.00005.00 WIRE BASKET
5 1 1102.00064.00 HANDLE W/MAGNET ASSEMBLY, BLACK
Optional colored
handle
1102.00065.00 HANDLE W/MAGNET ASSEMBLY, RED
Optional colored
handle
1102.00066.00 HANDLE W/MAGNET ASSEMBLY, GREEN
Optional colored
handle
1102.00067.00 HANDLE W/MAGNET ASSEMBLY, ORANGE
1102.00223.01
Large Spray Assembly Parts
CBS
-1151XV+ & CBS-1152 XV+
Ref QTY PART NO DESCRIPTION
1 1 1102.00116.00 CSD LARGE SPRAY HOUSING
2
1
1023.00296.00
ADAPTER PLATE
3 1 1057.00072.00 COIL ASSEMBLY
4 1 1024.00038.00 LARGE BREW VALVE DIAPHRAGM
5 1 1102.00212.00 ASSEMBLY PLUNGER WITH 8.0 OZ SPRING 24 VDC
6 4 1082.00123.00 SCREW #8-15 X 0.75"TRUSS HEAD; SELF TAPPING
7 1 1102.00043.00 CASCADE SPRAY DOME CBS-2050/60'S
1000.00108.00 Brew valve rebuild kit
CONTAINS:
PLUNGER
SPRING
LARGE BREW VALVE DIAPHRAGM
1
5
3
4
2
