Fetco Extractor Plus CBS-1241 - Page 28

Go to fetco.com for the latest versions of all information Page 28 User Guide & Operator instructions P212e0November 2021
SSR

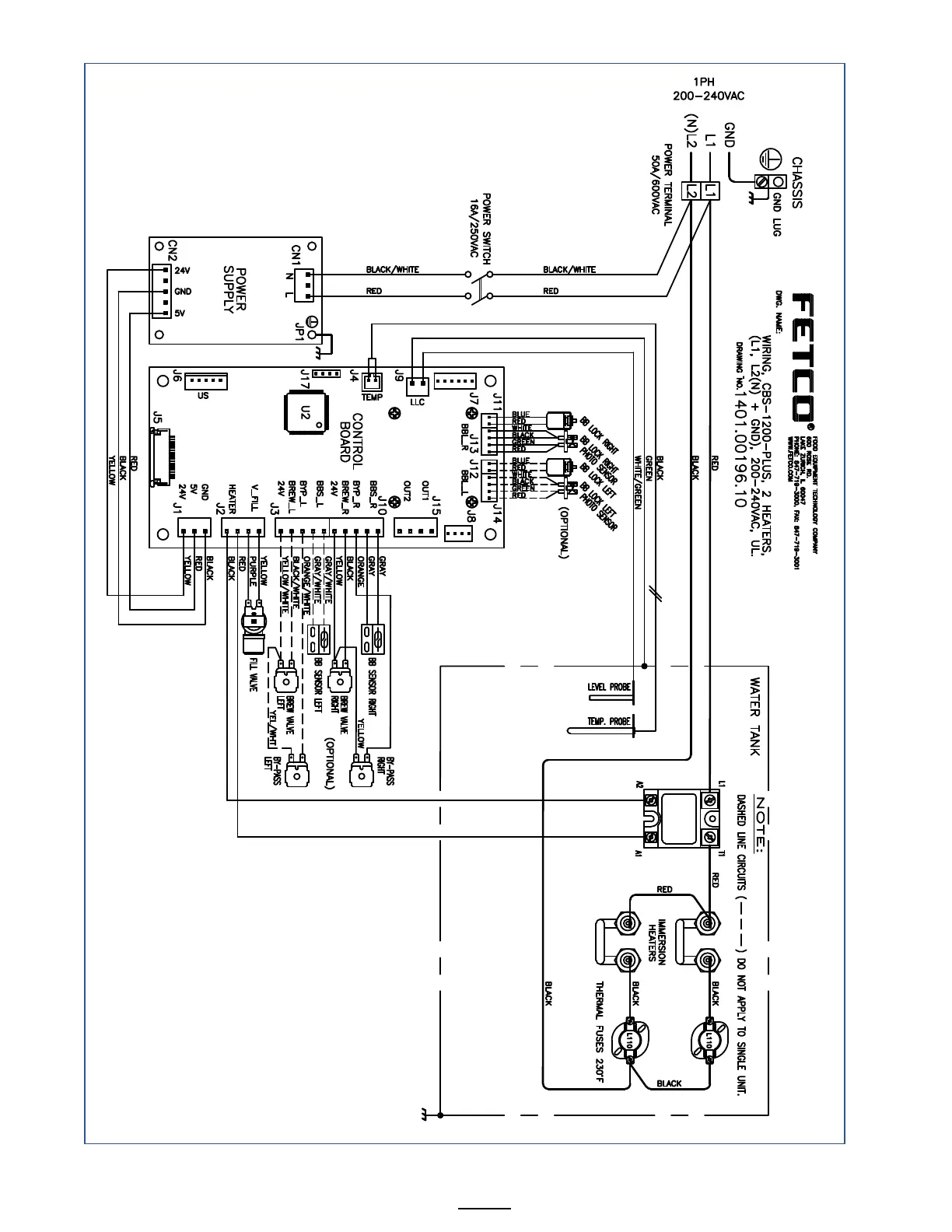

Wiring diagram 1401.00196.10 CBS-1242 PL US
SKU E1242US-1B223-PM
000
; E1242US-1B230-PM000;
E1242IN-1B223-PM000; E1242IN-1B230-PM000;E1242NM-1B230-PM000
