“Heating elements status”

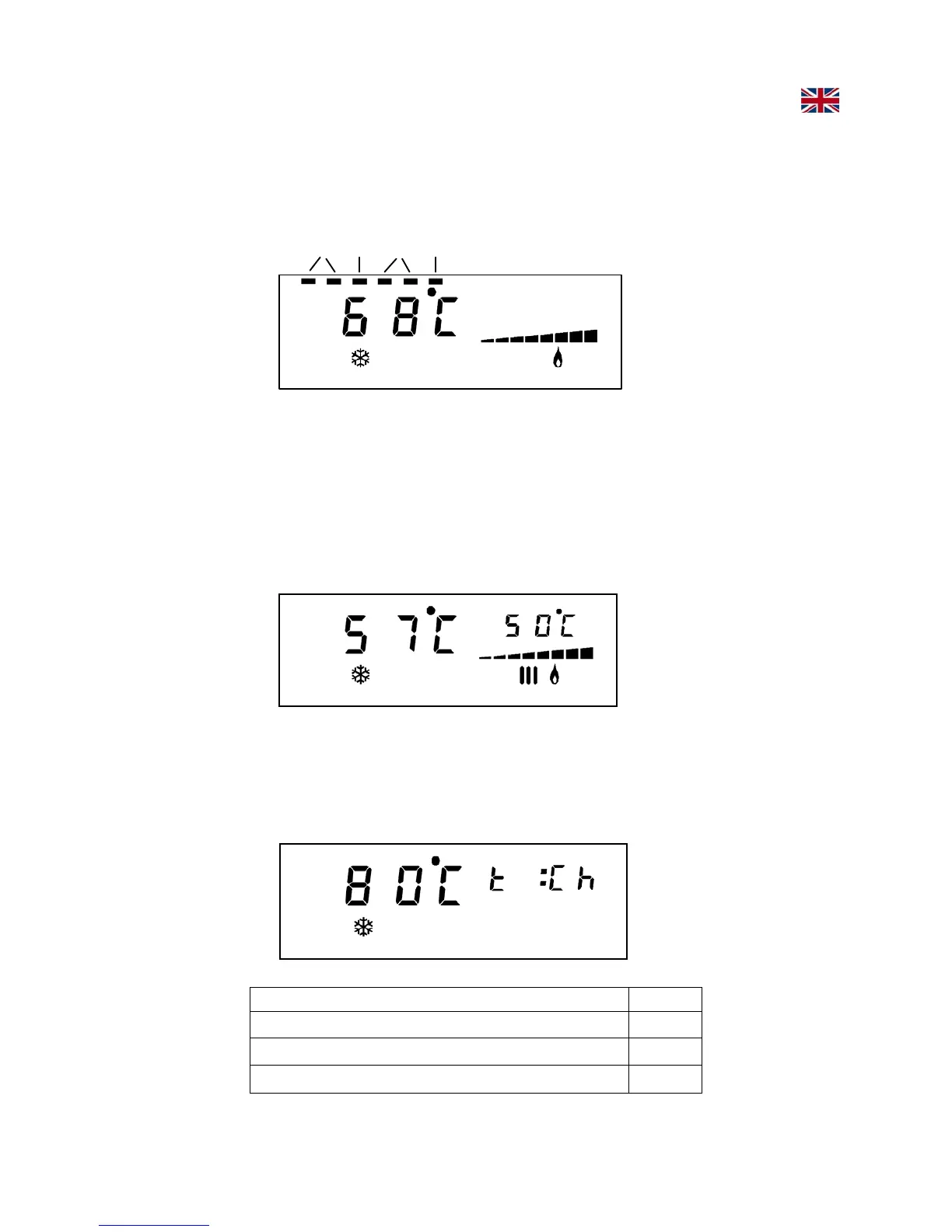

The dashes located in the upper part indicate the heating elements status. Each dash
corresponds to a 2 kW element. The first 6 dashes refer to heating modules of primary
heat exchanger.
“Heating request”
When an heating request occurs, the temperature measured by the delivery probe is
displayed and the symbol
I
II
I starts to flash. On the small digit is displayed the tank
temperature. The instantaneous power of the boiler is indicated by the level of modulation.
In any moment it is possible to observe which triac are turned on.
“Temperature display”
On the small digit will appear the writing t : followed by the description of the selected
temperature, while the big digit will show the temperature value.
FUNCTION N°
DELIVERY TEMPERATURE t: “Ch”
EXTERNAL TEMPERATURE t: “Ep”
EXTERNAL PROBE OFFSET SETPOINT t: “Se”
