Fiamma ELEKTRA - Front Unit; Spare Parts - Legend

25

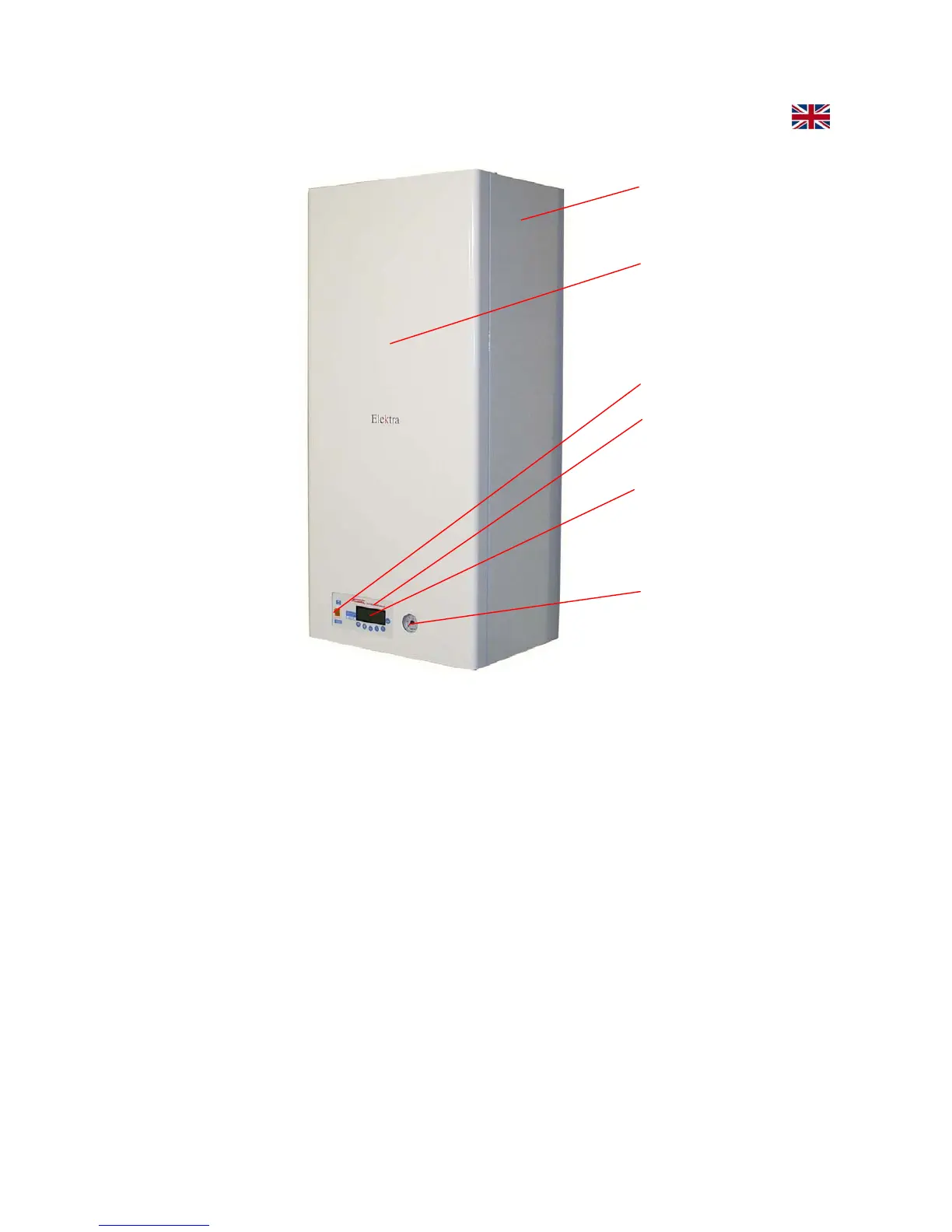

Front unit
Spare parts – Legend
1 Tetrapolar Terminal block for Elektra 6/12/18 … . …………..………...Cod.P.2054
Tetrapolar Terminal block for Elektra 24 … . ………………..………...
2 Terminal of the electric supply line 230V (Ph). …………..…............ Cod.P.2073
Terminal of the electric supply line 230V (blue - N). …................... Cod.P.2072
Terminal line of electrical ground (green/yellow)…………………..... Cod.P.2074
3 General electric box (panel circuit board / contactor).
4 Flat cable connection LCD display. ……..………….......................... Cod.P.2095
5 Left side panel of casing. ……..……………...................................... Cod.P.2030
6 Triac of electric power (40A-600V). ……………................................. Cod.P.2293
7 Return tube pump-boiler body. ……………………........................... Cod.P.2037
8 Expansion vessel 8 lt. N 6 kW version. ………………….................. Cod.P.289
Expansion vessel 10 lt. N 12/18/24 kW version. ……………........... Cod.P.1846
9 Water pressure switch (minimum pressure). …
……………..............Cod.P.1082
10 Circulator at variable prevalence (electric pump). …
….................... Cod.P.7326
11 Flexible tube for expansion vessel. ……………………...….............. Cod.P.1531
12 Hydrometer. ………………............................................................... Cod.P.141
29
30
25
12
27
14
