INSTALLATION - MOUNTING THE IN-WALL PART

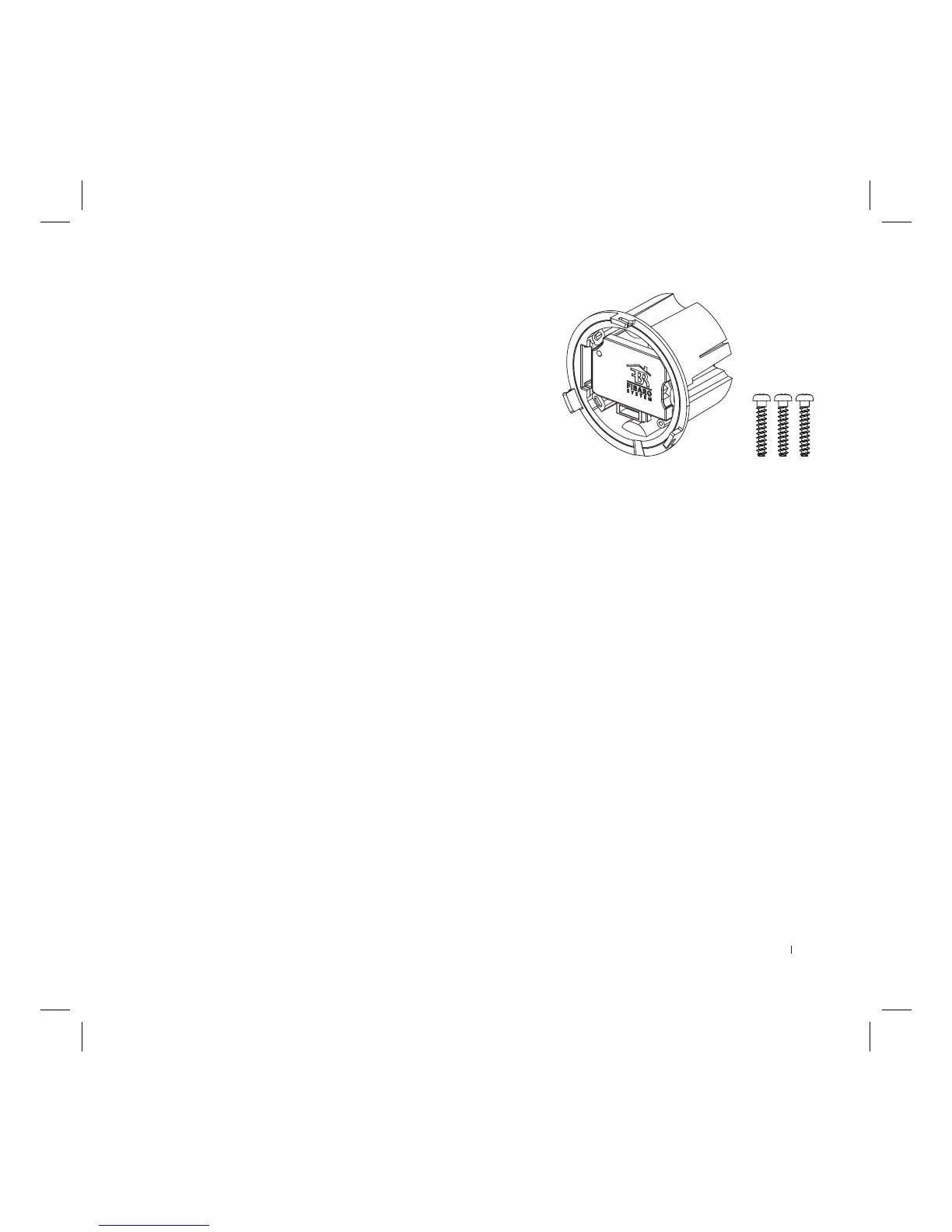

Mounting the in-wall part
To install the in-wall part:
1) Use a screwdriver to unscrew the small screw that secures the
masking cap labelled with FIBARO logo.
2) Drag the wires through the hole located on the right of the in-
wall part.
3) Place the in-wall part of the device inside the installation box.
4) Using three attached screws fasten the part with the box, make
sure it is aligns properly and adjoins the wall.
