FIBER FOX Mini 6SI - Splice Program Functions; Stabilize Electrodes; Arc Calibration

- 14 -
- 15 -

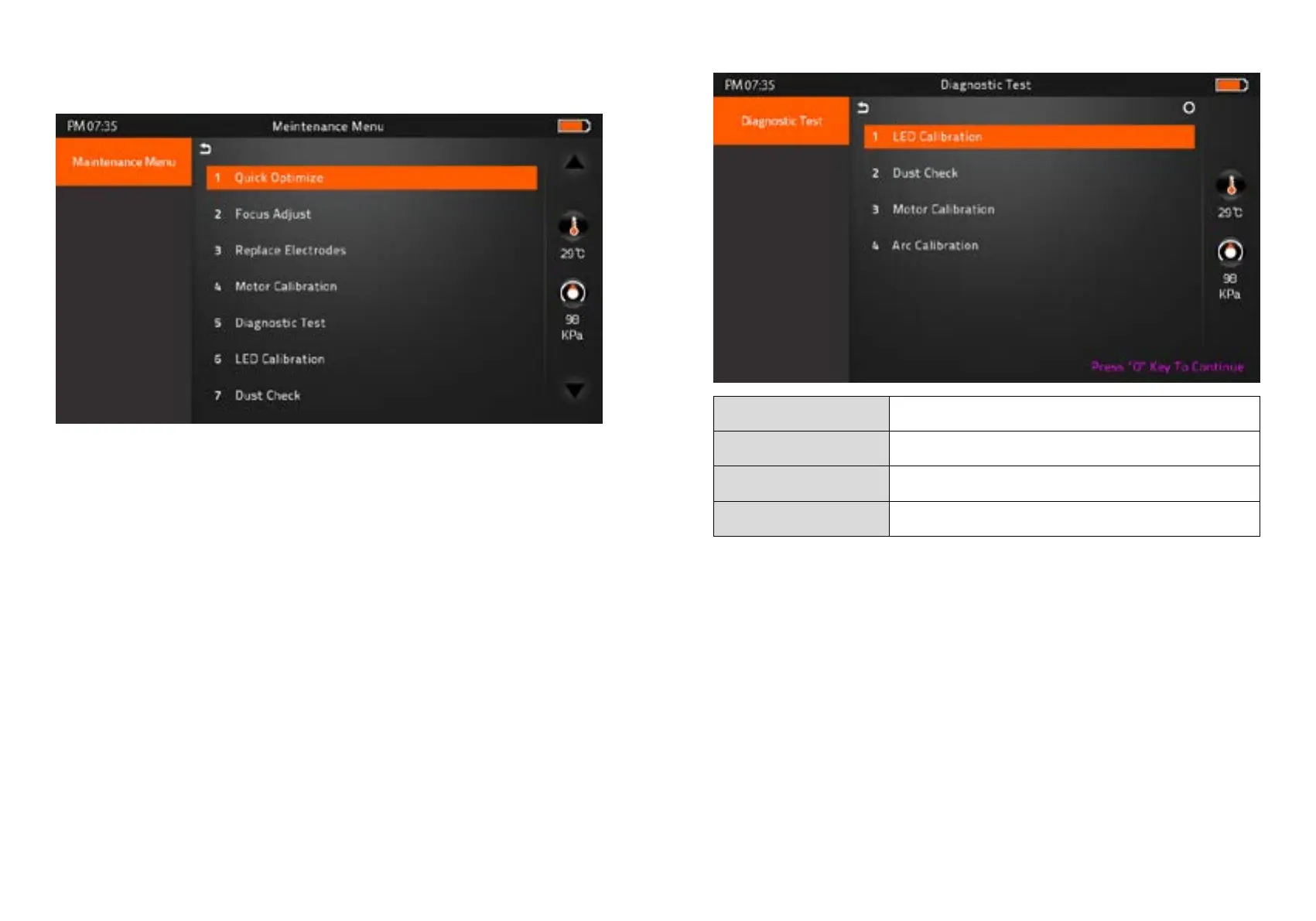

1) Maintenance Menu
▶ Quick Optimize
Quick & Easy overall maintenance
Automatic process ‘Lens focus+motor calibration+fiber training’
▶ Focus Adjust
Find the optimized posion for ‘Press, Focus & Align Motor’
▶ Replace Electrodes
Instruction on how to replace electrodes
FiberFox recommendation
It is highly recommended to change the electrodes every 3,000 splicing
▶ Motor Calibration
Automatically calibrates the speed of all six motors
[Maintenance]
▶ Diagnostic Test
LED Calibration Measures and adjusts the brightness of LED
Dust Check Dust checking process
Motor Calibration Automatically calibrates the motor speed
Arc Calibration Automatically calibrates the Arc power
▶ LED Calibration
Measures and adjusts the brightness of LED
▶ Dust Check
Detect dust&contaminant causing improper splicing
In order to find out optimized position for splicing, the splicer analyses the fiber images being
transmitted by the optical camera & LED inside but dust or contaminant on the camera, lenses,
LED may cause improper splicing result.
Therefore, the dust check process is recommended to proceed in case of frequent splicing fail
or high insertion loss.
