Cameras should be mounted high and away from interferences so they can overlook the area of protection.  The
camerashouldbemountedsothatlargesourcesoflight(glasswalls,largebaydoors,ordirectionalspotlights)willnot
compromisetheimagequalitybysaturatingtheimagesensorwithlight.Ideally,theFOVwillincludeboththeceiling
andfloorofthefacility,asshownintheFigure3below.




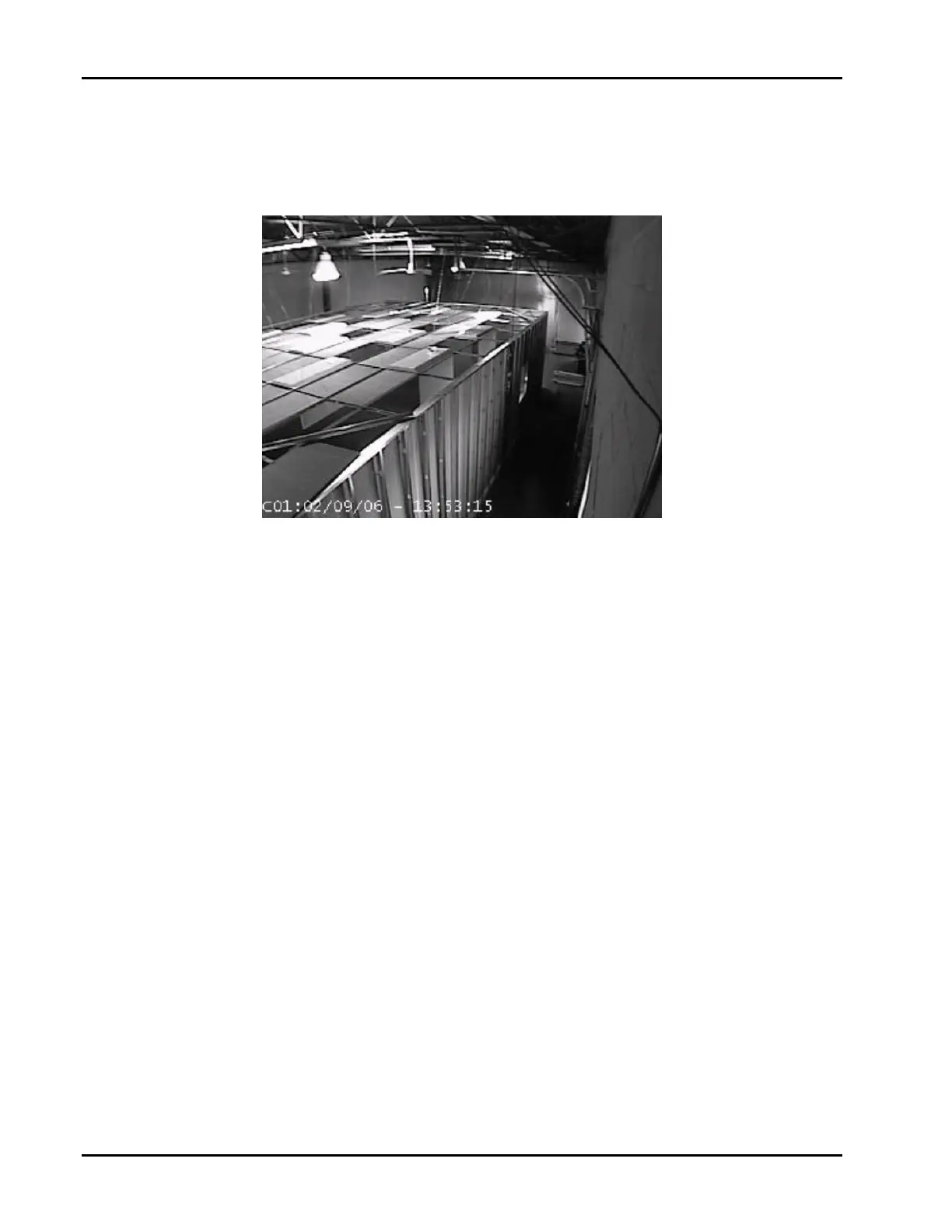

Fig3‐ThecameraispositionedhighinthespaceandtheFOVcoversboththefloorandceiling,maximizingthearea
covered.Thecamerawasmounted15ft.(4.6m)highwitha70ft.(21m)unobstructedviewdownthelengthofthe
warehouse.
2.2 FieldofView(FOV)
The most significant factor affecting system performance is the camera positioning and the resulting FOV.  It is
importanttopositioncamerastomaximizetheFOVaswellastheareacoveredbythecameras.Aperformancebased
designshouldbeusedtodeterminethenumberofcamerasneededtoproperlycoverthespacefromthedetermined
firethreat.Table1showstheresponsetimestovariousfiresources.Camerasshouldbeplacedhighinthespacesoas
tooverlookthehazardareaandavoidobjectswithin7ft.(2m)ofthecamera.
