1.3 ScalableSystemArchitecture
A Fike Video Analytics system is comprised of at least one FVA‐IP camera, a video management system, and the
monitoring solution.  You can connect any number of FVA‐IP cameras and network recorders via standard LAN /
Ethernetnetworktoexpandthesystemtomeetenduserneeds(limitof32cameraspernetworkrecorder).FVA‐IP
cameras can be powered by a FM approved fire alarm control panel(FACP),anapprovedsecurityandfirecamera
power supply with battery backup, or as a supplemental means a Power‐Over‐Ethernet (POE) switch with battery
backup.WiththeFikeVideoAnalyticsvideomanagementsoftware,anyapprovedPCworkstationcanbeusedasa
monitoringsystemsolongasitisconnectedthroughastandardIPnetworkconnection.Figure2isanexampleofthe
scalableenterprisearchitecture.


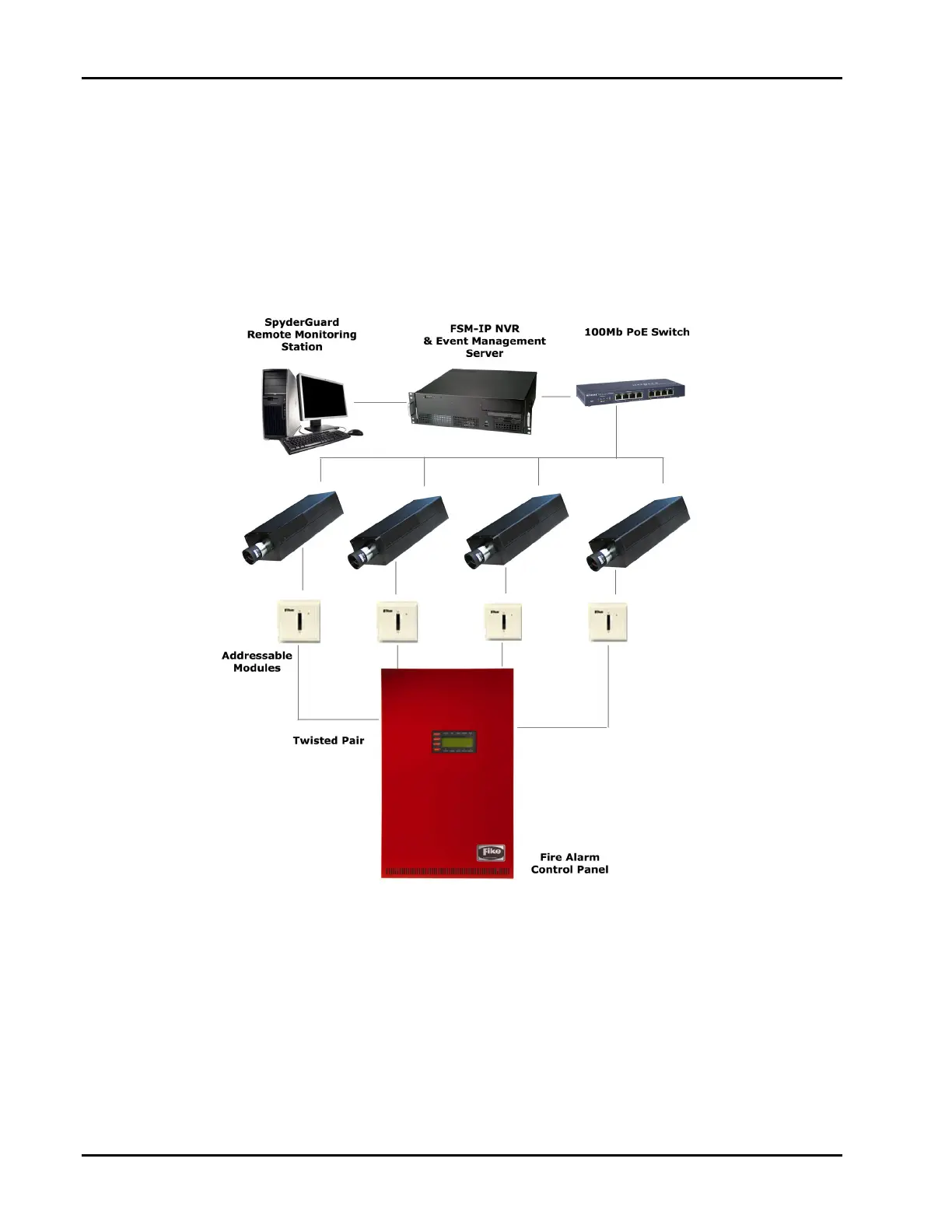

Fig2–TypicalinstallationofaFikeVideoAnalyticssystemwith8FVA‐IPcameras,aFSM‐IPvideomanagementsystem,
andaLANnetworkconnectedtosecurityworkstationandremotemonitoringofthesite.

FikeVideoAnalyticscomeswithavideomanagementsystemcalledFSM‐IPNetworkVideoRecorder(NVR).TheNVR
providesastoragepointforvideoalarmsfromtheFVA‐IPCamerasandacts asaninformationconduitbetweenthe
videomanagementsoftwaremonitoringstationandthecamerasthemselves.ThenumberofFVA‐IPcamerasthatcan
be supported in any Fike Video Analytics installation is dependentonthespeedandrobustnessofthenetworkto
which the cameras are attached. It is this flexibility of number of cameras, NVR platforms, and video management
softwaremonitoringstationsthatmakesFikeVideoAnalyticssystemsscalabletoanysizeapplication.
