Page 4

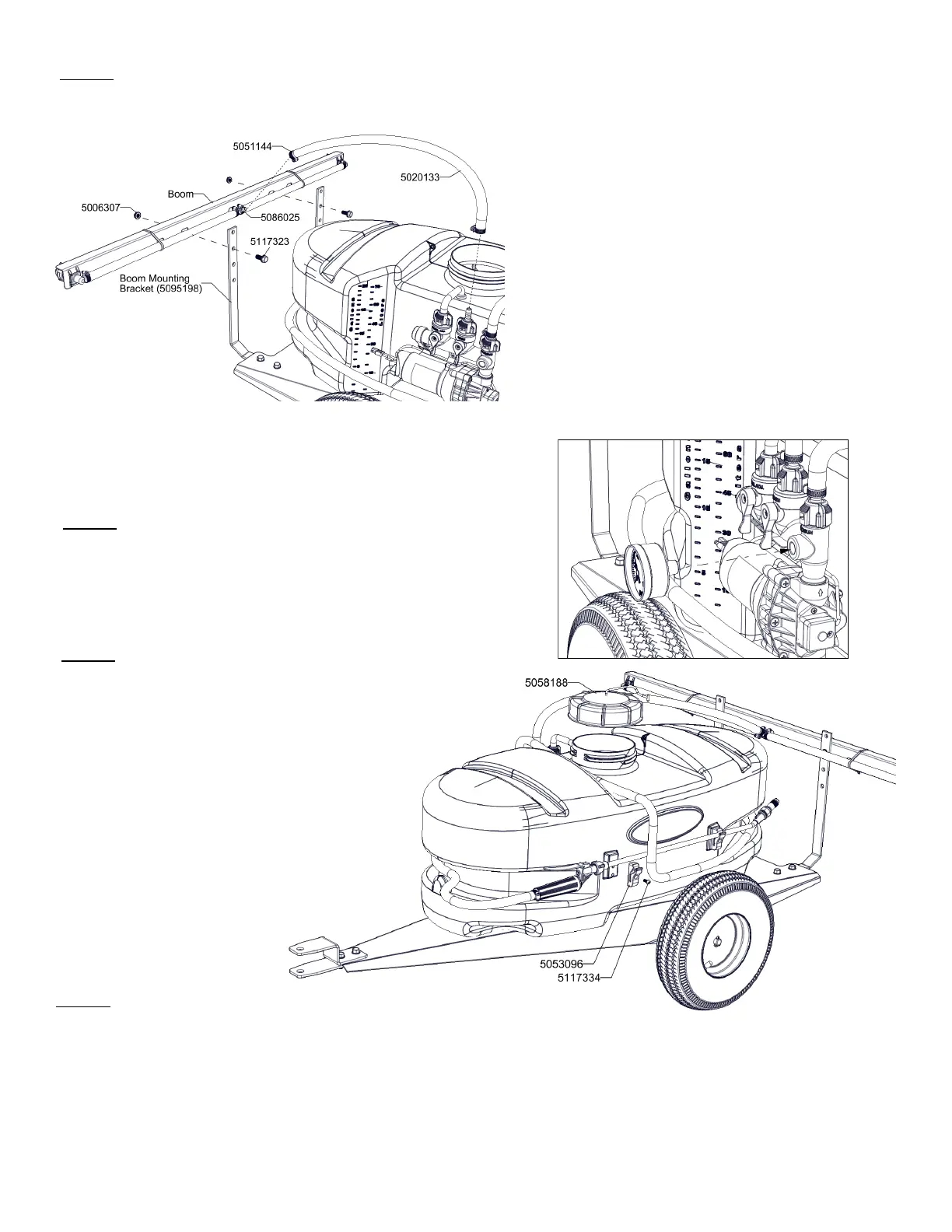

Step 4
Remove the 2-nozzle boom assembly (5277774) from
the carton. Using (2) bolts (5117323) and (2) whiz nuts
(5006307), bolt the boom to the upright boom mounting
brackets. There are four holes in the boom brackets, so
you can choose the most optimal (height) position for
your spraying purposes.
Tighten the hardware down, using a 1/2” socket or
wrench.
Find the 3/8” hose (30” long) (5020133) and place hose
clamps (5051144) loosely onto each end of the hose.
Connect this hose to the ‘TEE’ fitting on the boom and
to the ‘Boom’ line on the manifold. Tighten the hose
clamps snugly.
Step 5
The tank lid (5058188) has an 8” lanyard
attached to it. Slide the lanyard through the
hole in the tab at the top of the tank. This is
so the lid can ‘hang’ or be retained onto the
tank while you are filling or rinsing the tank
out. This should help prevent loss or
damage of the lid.
Screw the lid onto the tank. Hand-tight
should be sufficient.
Screw the pressure gauge into the manifold. Hand tight should
be sufficient.
Step 6
Step 7
Remove the (2) handgun clips (5053096)and (2) screws (5117334) from the parts bag. Use a phillips head screwdriver
to screw them onto the tank. Do not over tighten. These clips are where the spray wand (5163100) is secured to the
tank, while not in use.
NOTE:
The spray wand should already be attached to the 15 foot hose prior to assembly.
*** The Sprayer should now be ready for use ***
Assembly Procedure
(TR-20 EX - 5301549)
