Backbox Mounting

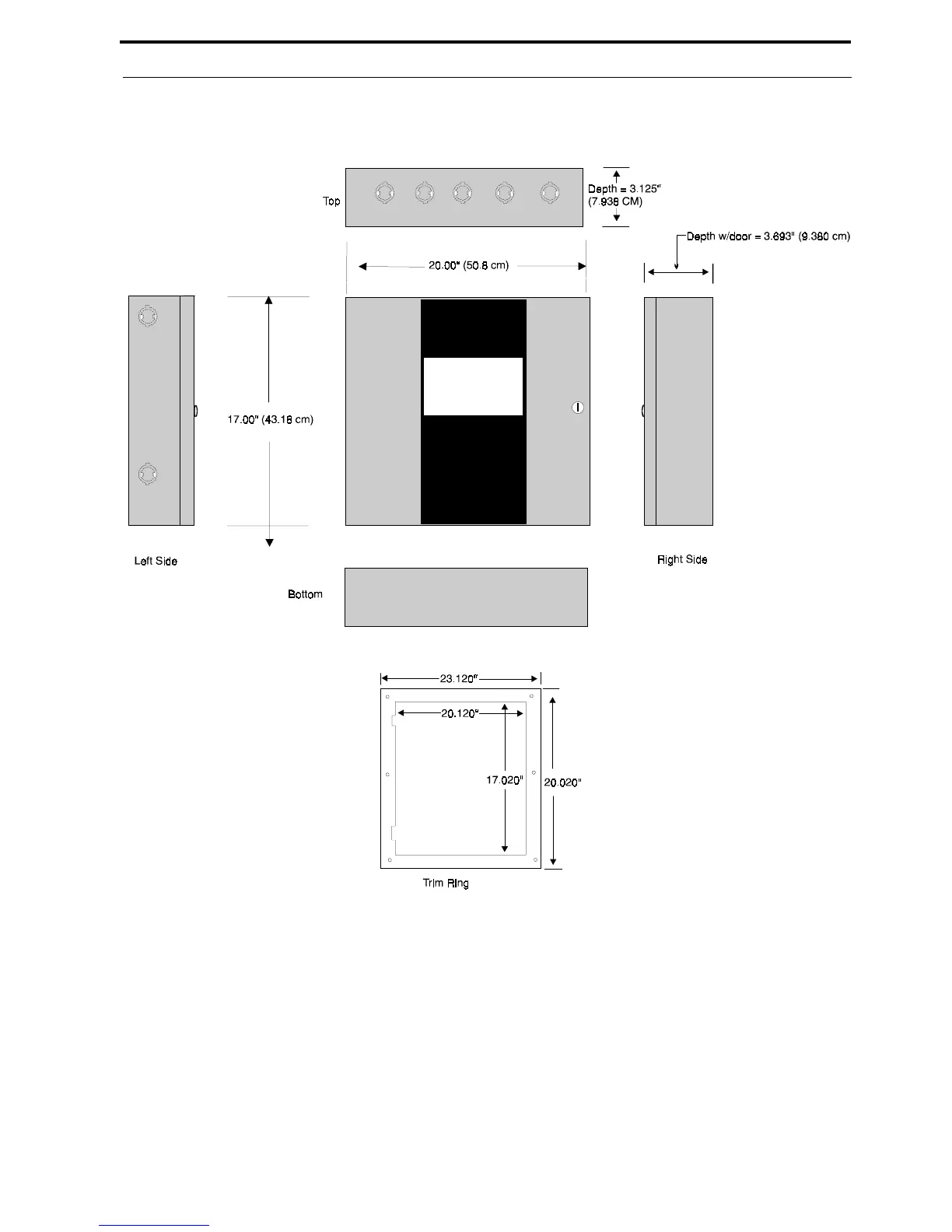

FIGURE 2-3:
FACP Backbox
When batteries larger than 7 Amp Hour are being used, the BB-17F battery box (or equivalent) must be
installed. To install the BB-17F:
1. Mount the FACP cabinet to the wall.
2. Remove knockouts on the bottom of the FACP cabinet and top of the BB-17F.
3. Using conduit, hang the BB-17F from the FACP cabinet making sure there is at least ½" of
clearance between the two cabinets.
4. Anchor the BB-17F to the wall.
