Product Description
CHAPTER 1
Product Description
The MS-2410BC is a 10-zone FACP (Fire Alarm Control Panel), which uses conventional input devices. The panel
accepts waterflow devices, two-wire smoke detectors, four-wire smoke detectors, pull stations and other
normally-open contact devices. Outputs include two Notification Appliance Circuits (NACs), three standard Form-C
relays (alarm, trouble and supervisory) and an EIA-485 port to interface with remote annunciators and optional
remote relay modules. The FACP is field programmable via the panel keypad. It also supervises all wiring, AC
voltage and battery level.
1.1 Product Features
• 10 Class B Initiating Device Circuits (IDCs)
✓ All zones accept smoke detectors and any normally open contact device
✓ Zones 1 - 8 configured as general alarm zones
✓ Zones 9 - 10 can be configured as smoke zones or supervisory alarm zones
• Two Class B Notification Appliance Circuits (NACs)
• Form-C Alarm Relay
• Form-C Trouble Relay
• Form-C Supervisory Relay
• 3.6 amps of system power expandable to 6.6 amps
• RTB Remote Trouble Buzzer
• Remote Relay Option Module (ACM-8RF) providing one 5.0 amp relay per zone
• Dress Panel coverplate (DP-2410BC)
• Built-in keypad for panel control and programming
• 24 volt operation
• Trouble Reminder
• Alarm Verification (zones 1 through 3 only)
• Interfaces with Fire•Lite annunciators (requires
LED-10IM Option Module)
✓ LED-10 Series Remote Annunciators provide
red alarm and yellow trouble LEDs
✓ LDM-32F Graphic Annunciator Driver
✓ AFM Series LED Annunciators
• Small backbox size 20.00" (50.8 cm) X 17.00"
(43.18 cm) X 3.125" (7.938 cm)
• Silence Inhibit Notification Appliance Circuits
• Auto-Silence Notification Appliance Circuits
• Fuseless design
• Low AC voltage sense
• Silent or audible Walktest

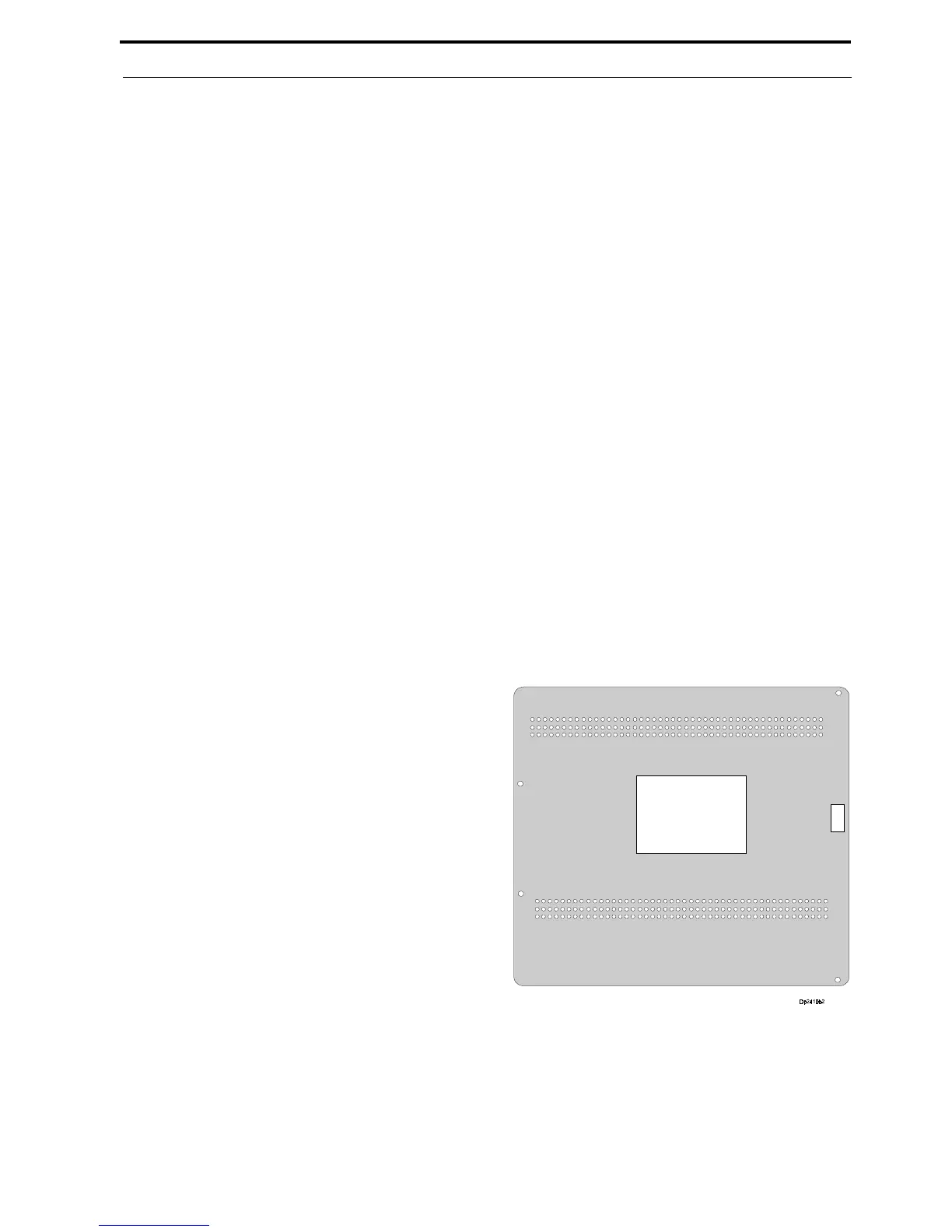

FIGURE 1-1:
DP-2410BC
