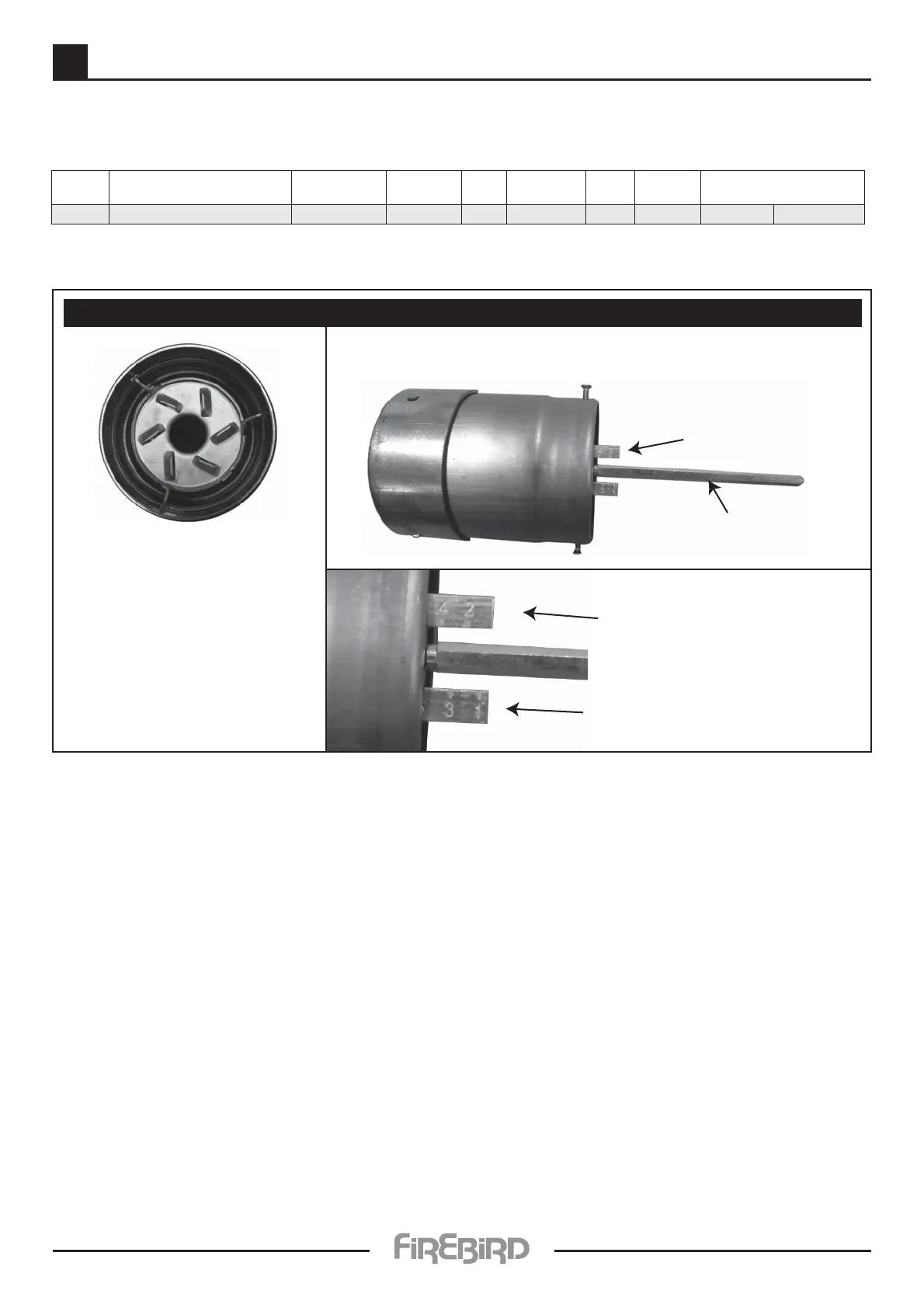

Adjust the no. 2 head setting
into the edge of the blast tube.
Head Air
Adjustment Bar
Head Air
Adjustment Guide
G10 BLAST TUBE
This is currently set at 5.
The diffuser moves in and out when the
head setting is increased or decreased.
The diffuser moves back into the head
when the head setting is decreased,
pushing the air through the centre of
the diffuser.
The diffuser moves forward when the
head setting is increased, pushing the
air around the outside of the diffuser.
To adjust the head setting, rotate bar A clockwise to increase and anti-clockwise
to decrease until the numbers line up with the edge of the blast tube.
A
These settings are a guide for the commissioning engineer and may give varying results in different site locations. Variations
in nozzle throughput, flue type, ambient air temperature, oil viscosity, altitude etc. may give results differing from these
laboratory performance figures .These settings were carried out using a conventional flue.
The fuel option on the flue gas analyser should be set a Light Diesel Oil.
APPLIES TO C58-C100
Make sure the door of the Slimline Systempac is in place when setting the CO
2
. Take the flue analysis from the flue terminal.
