BURNERS
Operating sequences and wiring diagrams follow for each model burner. Burners are factory
wired and just need to be field connected to the flexible cord on the heater box. Align quick
connect ends properly, slide together, then twist the nut tight.
You need to know which burner you have. Three models are made: K5, B5, B5 Two Stage.
The easiest way to determine is :

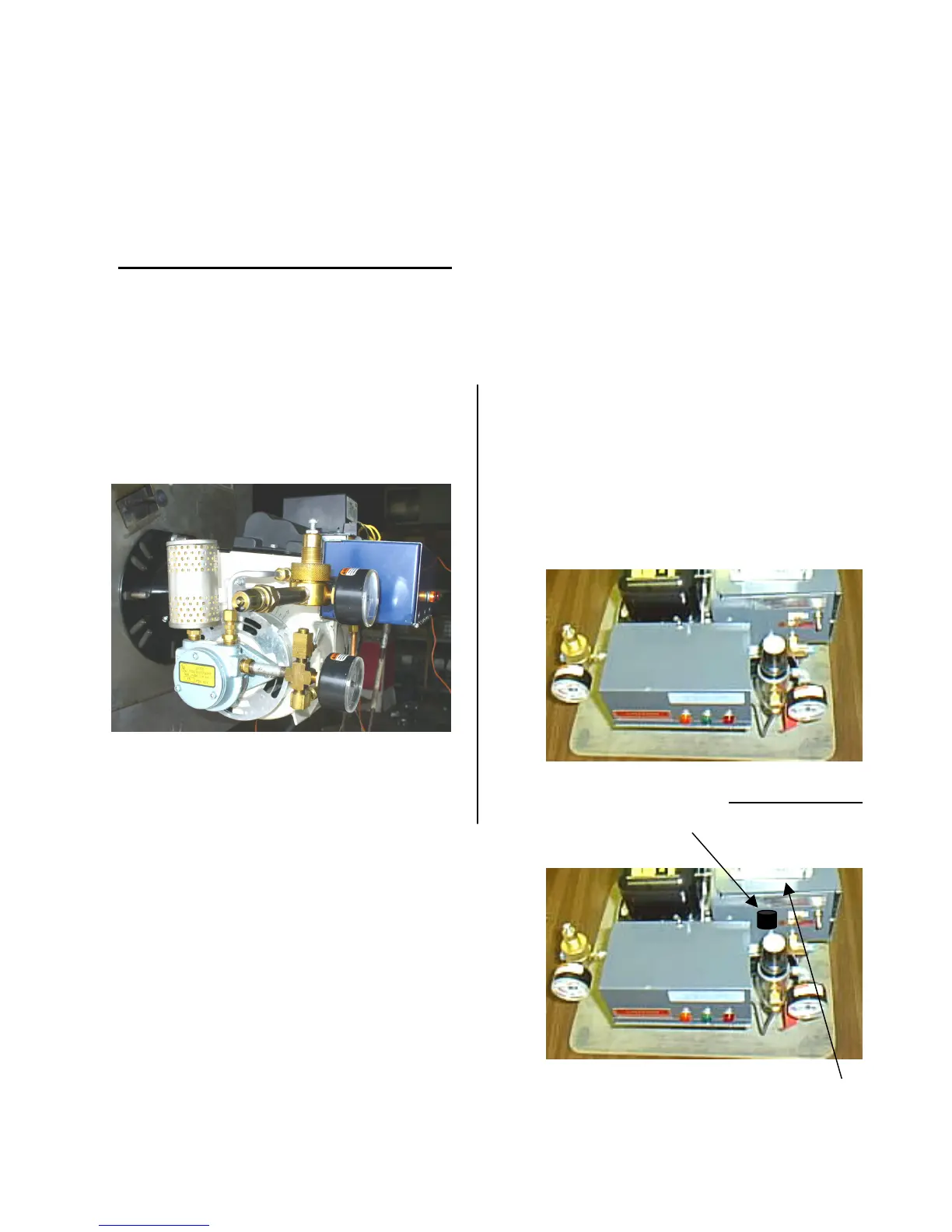

Does the burner have an Air Pump & Filter attached at the side of the housing?
YES, NO,
then it is a K5 model burner. then it is a B5 model burner.
Use “K5” identified diagrams. Two B5 models are made. See below.
The most common is the
standard B5 shown here.
The other burner is a B5 “Two Stage”.
It has a Solenoid piped behind the Air
Regulator
It also has two timers on the underside of the air box lid
