Fireray 3000 User Manual

• The LASER in the Receiver head is used to align the Receiver with the Transmitter.

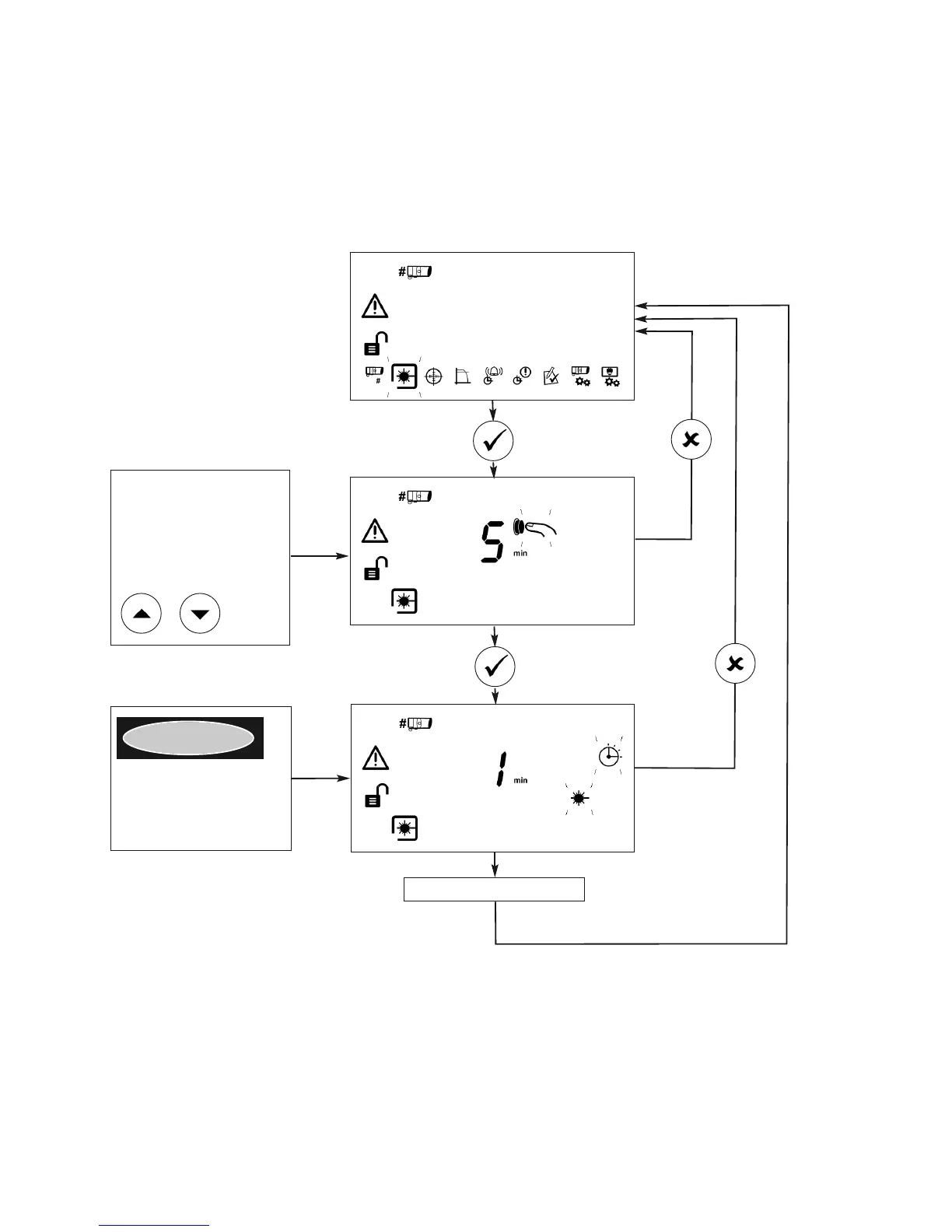

• The LASER can be activated using the button on the Receiver head whilst in Engineering Menu, or via the
LASER icon in the ENGINEERING MENU as shown below.
• Move the LASER as close to the Transmitter as possible, by moving the Receiver’s thumbwheels
• The system will signal Fault while in this mode
10
2.5 LASER Targeting
This LASER TIMEOUT
value (MIN=1 min.;
MAX=59 mins.) may be
incremented or
decremented in 1 min.
steps by using:
Countdown Elapsed
LASER RADIATION - AVOID
DIRECT EYE EXPOSURE
POWER OUTPUT < 5mW
CLASS IIIa LASER
Wavelength 630 - 680 nm
DANGER
If it is not possible to see the LASER because of the installation environment (for example, if there is high ambient
light) then mechanically align the Receiver by eye so that it is pointing at the Transmitter.

Fireray 3000 Specifications

General

Detection Range	Up to 100m
Operating Temperature	-10°C to +55°C
IP Rating	IP65
Alarm Relay	1A @ 30V DC
Fault Relay	1A @ 30V DC
Detection Principle	Infrared beam
Response Time	10 seconds
Alarm Output	Relay
Current Consumption	≤25mA (standby), ≤45mA (alarm)
