Fireray 3000 User Manual

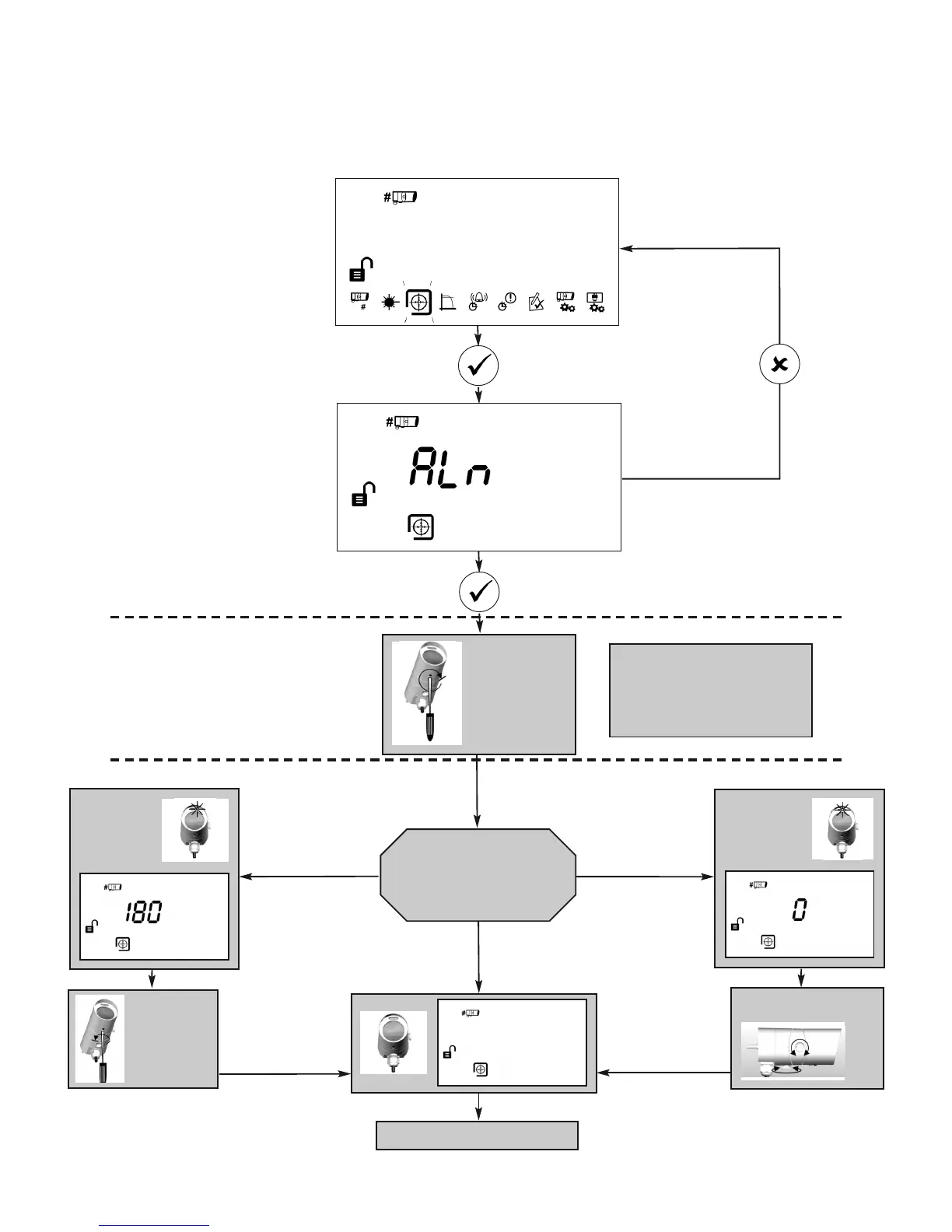

2.6 Alignment
Step 1
In alignment mode you are centring the Transmitter beam onto the Receiver and the system is adjusting its power
for optimum signal.
Step 2
No flash
No flash
Reduce Tx
power
Step 3
Adjust thumbwheels
(SEE NOTE 1)
Set Tx power to
maximum.
Signal too
high
View LEDs on Rx or
LCD value
Amber -
short/long flash
No flash
Green - short/long
flash
Signal too
low
NOTE 1: Value can be
between 2 and 178.
A higher value means a
better alignment.
Proceed to Step 4
Tx
Rx
Rx
Tx
Tx
Rx
11

Fireray 3000 Specifications

General

Detection Range	Up to 100m
Operating Temperature	-10°C to +55°C
IP Rating	IP65
Alarm Relay	1A @ 30V DC
Fault Relay	1A @ 30V DC
Detection Principle	Infrared beam
Response Time	10 seconds
Alarm Output	Relay
Current Consumption	≤25mA (standby), ≤45mA (alarm)
