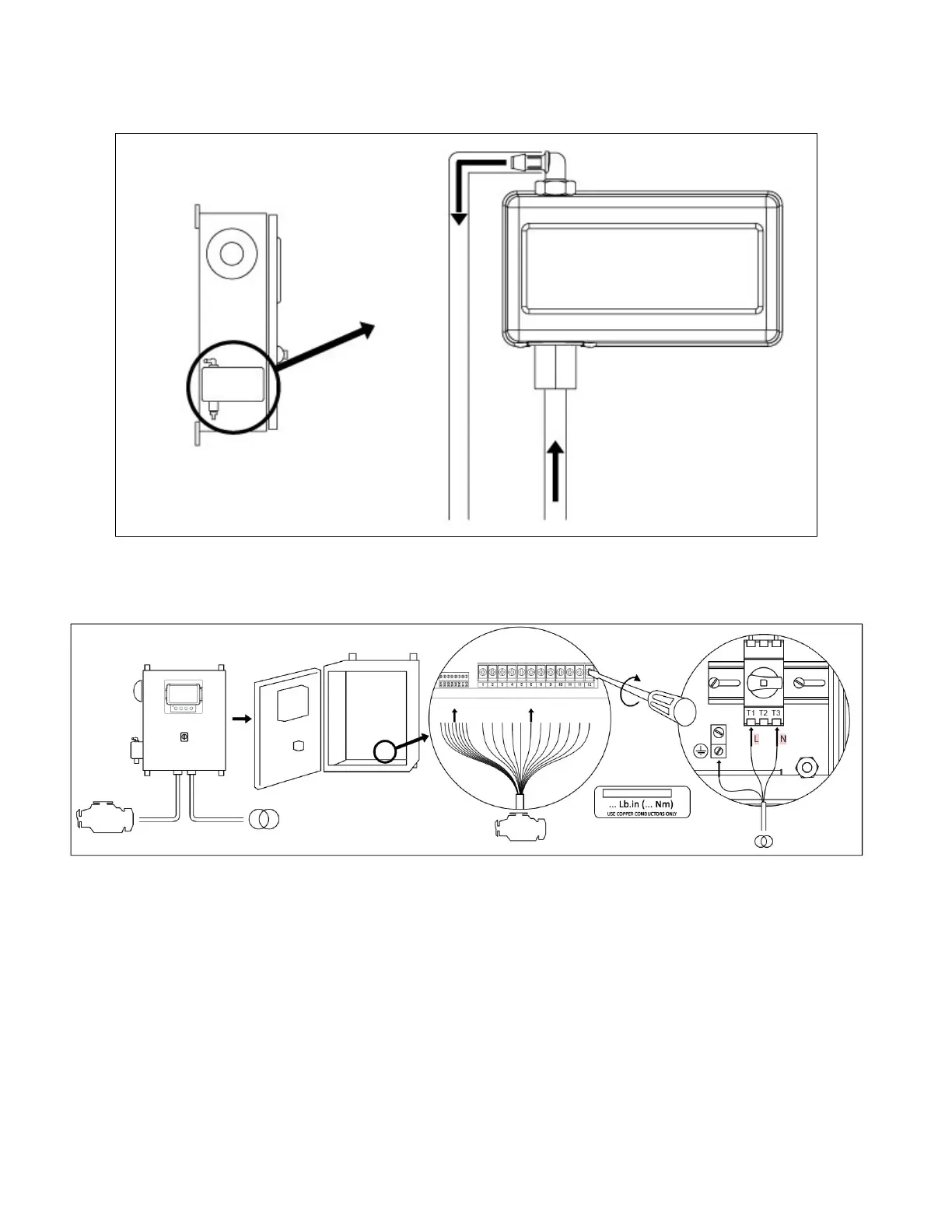

Open the controller's door and verify that the disconnect switch and all circuit breakers are in the “OFF” position.
Verify and/or install the proper water connections for the water input and the drain. They must be securely installed and
tightened. Refer to the silkscreen markings on the plastic cover.
Connect all cables between the engine control panel and the controller engine terminals (Identified as “U” on the IO board
diagram displayed in the Terminal Strips Descriptions in the manual). Secure with the appropriate torque as indicated on the
torque label and verify all connections. Connect the AC main line and ground to the AC terminal in the controller.
