NOTE: Total power drawn from all receptacles must not exceed the name plate rating.

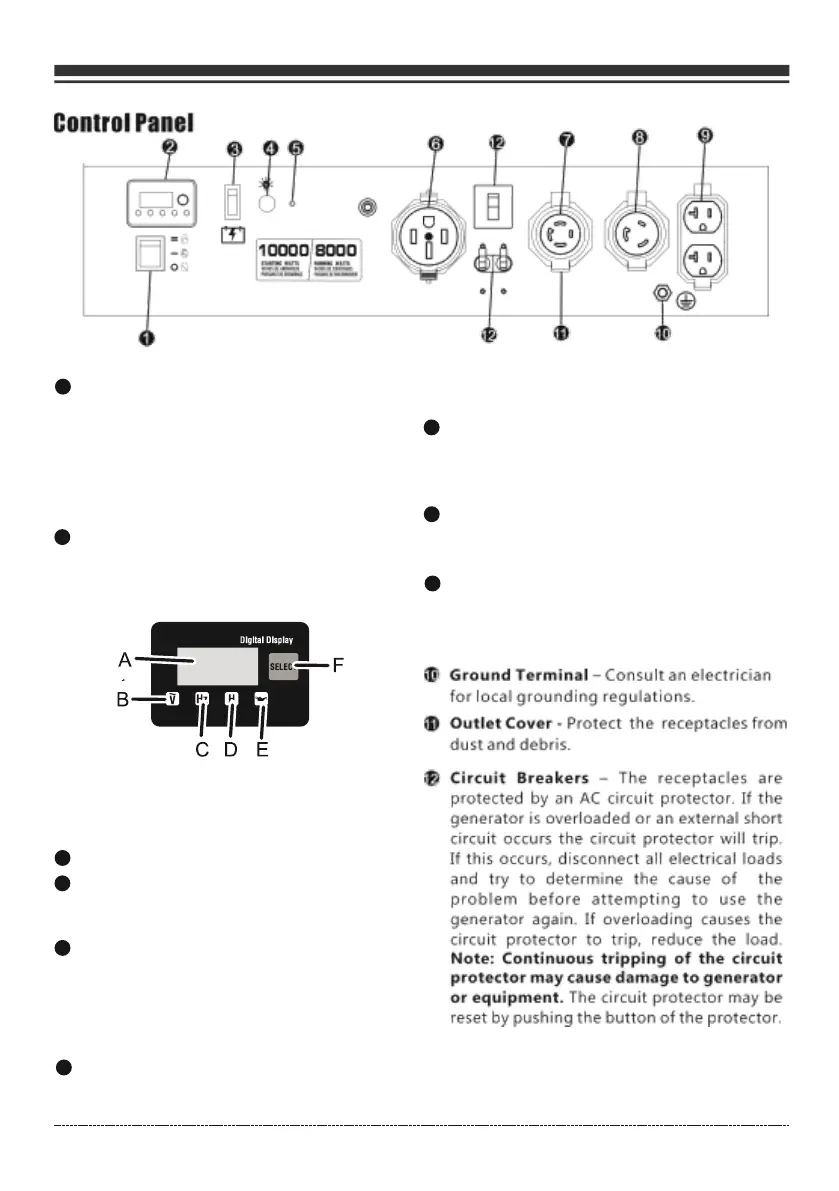

1 Engine Start Switch – Used to start engine
from the starter motor(Electric start model
only). To start engine, press and hold the
switch in the “START”(ll) position, the engine
will crank and attempt to start. When the
engine starts, release the switch to the
“RUN”(l) position.
2 4-1 Data-Minder(Multi-Meter) – Push the
SELECT button to show the Voltage, Hertz and
running hours. If the low oil indicator is lit,
check the oil level.
A - Digital display D - Hour indicator
B - AC voltage indicator E - Low oil indicator
C - Frequency indicator F - Select button
Battery Switch – Power the electric starter.
Remote Start Indicator Light - The light will
light or flash depending on the status of the
remote start system.
Remote Start Program Button - Use this
button along with the remote control to program the
generator to be started remotely. Your remote control is
already programmed in factory for your convenience. You
might need programming when using new remote
control.
6 120/240V, 50A RV – (NEMA 14-50R)
Maximum full load current may be drawn from this
120/240 Volt, 50 Amp receptacle.
7 120/240V, 30A Twist-Lock – (NEMA L14-30R)
Maximum full load current may be drawn from this
120/240 Volt, 30 Amp receptacle.
8 120V, 30A Twist-Lock (NEMA L5-30R)
30 Amp current may be drawn from this 120 Volt
receptacle.
9 120V, 20A Duplex – (NEMA 5-20R)
20 Amp current may be drawn from this 120 Volt
receptacle.
