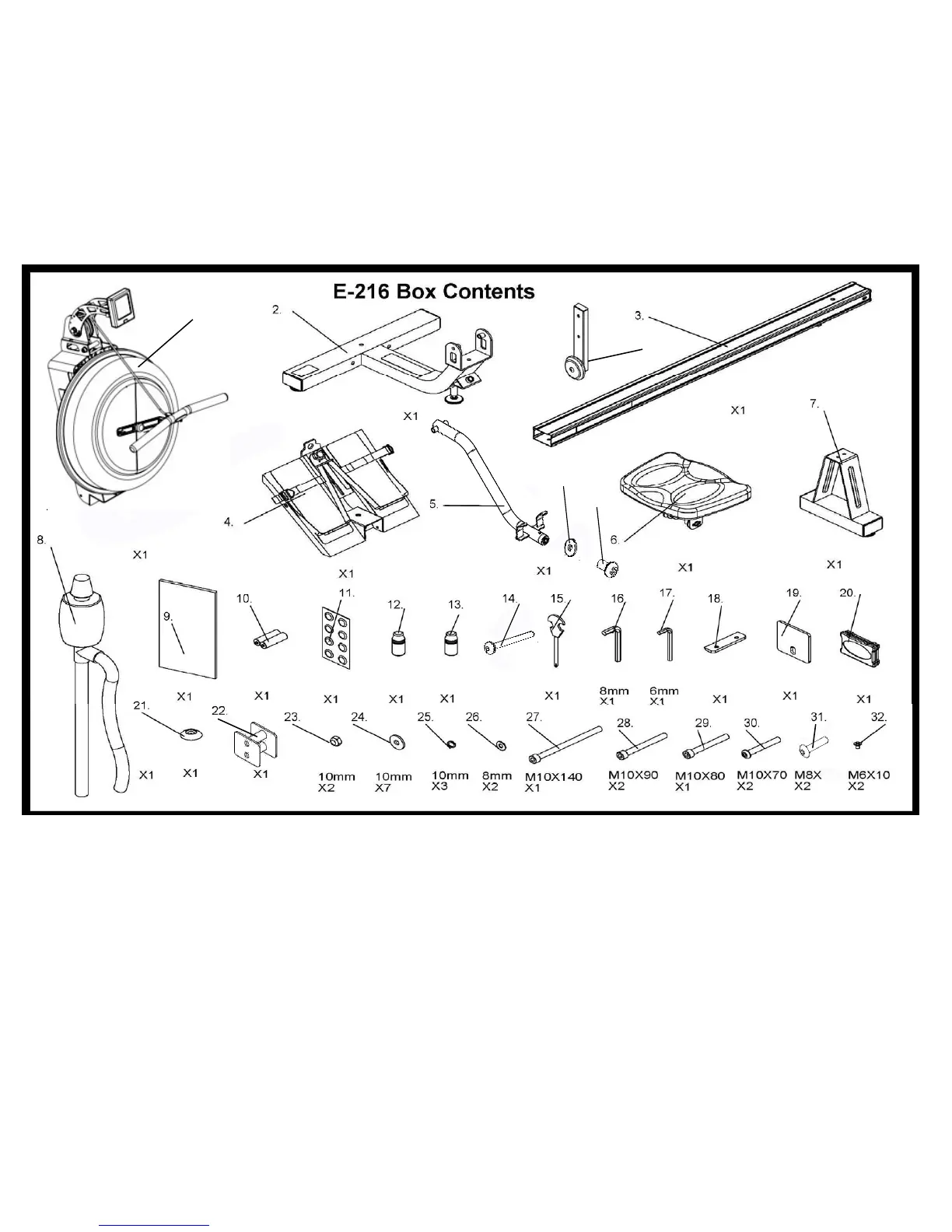

First Degree Fluid FR-E216 - E-216 Rowing Machine Box Contents

33.
X2
35
1.
1. Upper mainframe and tank
2. Lower mainframe
3. Seat Rail
4. Footplate
5. S-bend bar handle catch
6. Rower seat
7. Rear leg
8. Siphon
9. Owners Manual
10. 2X AA batteries
11. 8X Chlorine tablets
12. Blue dye
13. Touch up paint
14. M8X60mm Rear leg bolt.
15. Multi-tool
16. 8mm Hex key
17. 6mm Hex Key
18. Rear rubber bumper
19. Vertical seat rail bolt support bracket
20. Rear end cap
21. Vertical seat rail bolt dome cap
22. Rear leg bracket (internal)
23. 10mm Nylock nut
24. 10mm standard washer
25. 10mm Spring washer
26. 8mm standard washer
27. 140mm M10 footplate bolt
28. M10X90mm bolt (lower to upper frame)
29. M10X80mm S-bend bolt
30. M10 Vertical seat rail/upper/lower frame
bolt
31. M8X35mm transport wheel assembly bolt
32. M6X10mm rear bumper bolts
33. Transport wheel and bracket assembly
34. M10x15mm S-bend bolt
35. M10 S-bend Washer
34.
X2
35.
X1
X1
