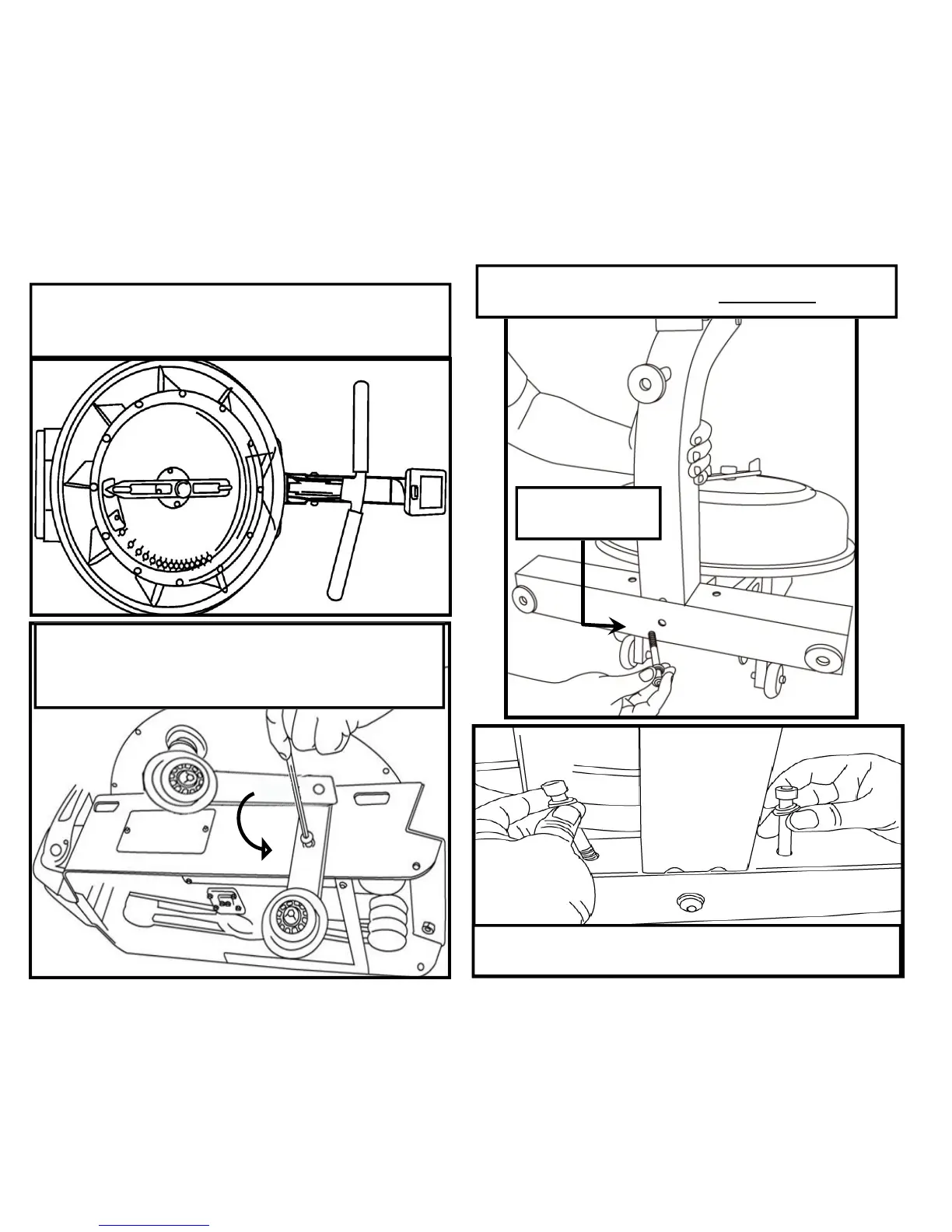

Step 2. Tilt upper frame to one side to allow transport wheel
bracket to fall into position. Attach using the black M8x35mm
bolt . Repeat on opposite side.
E-216 Assembly Instructions
1
2
Step 3. Attach lower frame to upper frame starting with middle
M10x70mm bolt and spring washer. Do not tighten.
3
Step 4. Install left and right side bolts (1x M10X90mm bolt and
1x 10m spring washer on each side). Tighten all three bolts.
4
Step 1. Remove contents from box, and lay upper frame (tank
assembly) on its back. Note: Use protected surface to prevent
scratching Perspex cover.
M10x70mm bolt and
spring washer
To Next Page
