Item Part # Description Qty
1 70200 Lower Frame 1
2 70700 Foot Plate 1
3 70410 Tensioning Bolt 1
4 60700 Seat Assembly 1
5 60601
Heel Adjuster Knob External Plate
1
6 71016 Lower Frame Foot Leveler 3
7 70804 Rail Insert Bracket 1
8 10082
Washer M10
7
9 60121
Bolt (M10x90)
2
10 71021
M10x140mm Foot Plate/Lower Frame
Mounting bBlt
1
11 10041
Nut M10 Nylock
2
12 10069
End Cap 75x50mm
2
13 10081
Washer M6
4
14 10121
Foot Plate Non Slip 3M
2
15 10176
Foot Strap
2
16 10177
Foot Strap Buckle
2
17 10120
Screw M6x15
4
18 10174
Nut M6
4
19 60149
Spring Washer (M10)
3
20 60809
Plastic Dome Cap For Vertical Seat Rail
Bolt 10mm
1
21 10096 Bolt M10x70 for Aluminum Rail 2
22 60604
Heel Adjuster Knob Internal Plate
1
23 60605
Rubber Heel Support Pad
2
24 60606
Plastic Spacer M4
2
25 60608
Heel Strap Complete (Inc. 2*60605)
1
26 60609
Heel Adjuster Knob (M6)
1
27 71028 E216 How to Rower Decal 1
28 71031 Hand Warning Decal 1
29 61002
Heel Adjuster Decal
2
30 71037 Safety Strap 1
31 10099
Caution Decal
1
32 60618 Knob Decal (yellow) 1
33 71036 M8 nut (Note: For tank tensioning bolt) 1
34 70600 S-bend handle Catch Bar 1
35 10115
Bolt M10x80
1
36 20150 Bolt M10x15 2
37 10082 M10 Washer 2
38 70800 Seat Rail Assembly 1
39 73000 Upper Main Frame Tank Assembly 1
40 73700 Rope Pulley and Handle Assembly 1
41 73002 O-Ring 1
49
50
51
52
54
53
81
42 73009 D25-C-Clip 1
43 73910 Magnetic Ring 1
44 73019 PVC Cover 1
45 10170 Washer M4 4
46 10070 Screw M4x10 5
47 73005 M3x8 Screw 4
48 73900 Sensor Assembly 1
49 63501 Rower Handle 1
50 60506 Rowing Handle Rubber Grip 2
51 60144 Rowing Handle End Plug 2
52 83501 Handle Rubber Cover 1
53 83502 Dyneema 2.7m 1
54 60617
Bungee Cord Crimped End (Note: includ-
ing Bungee cord)
1

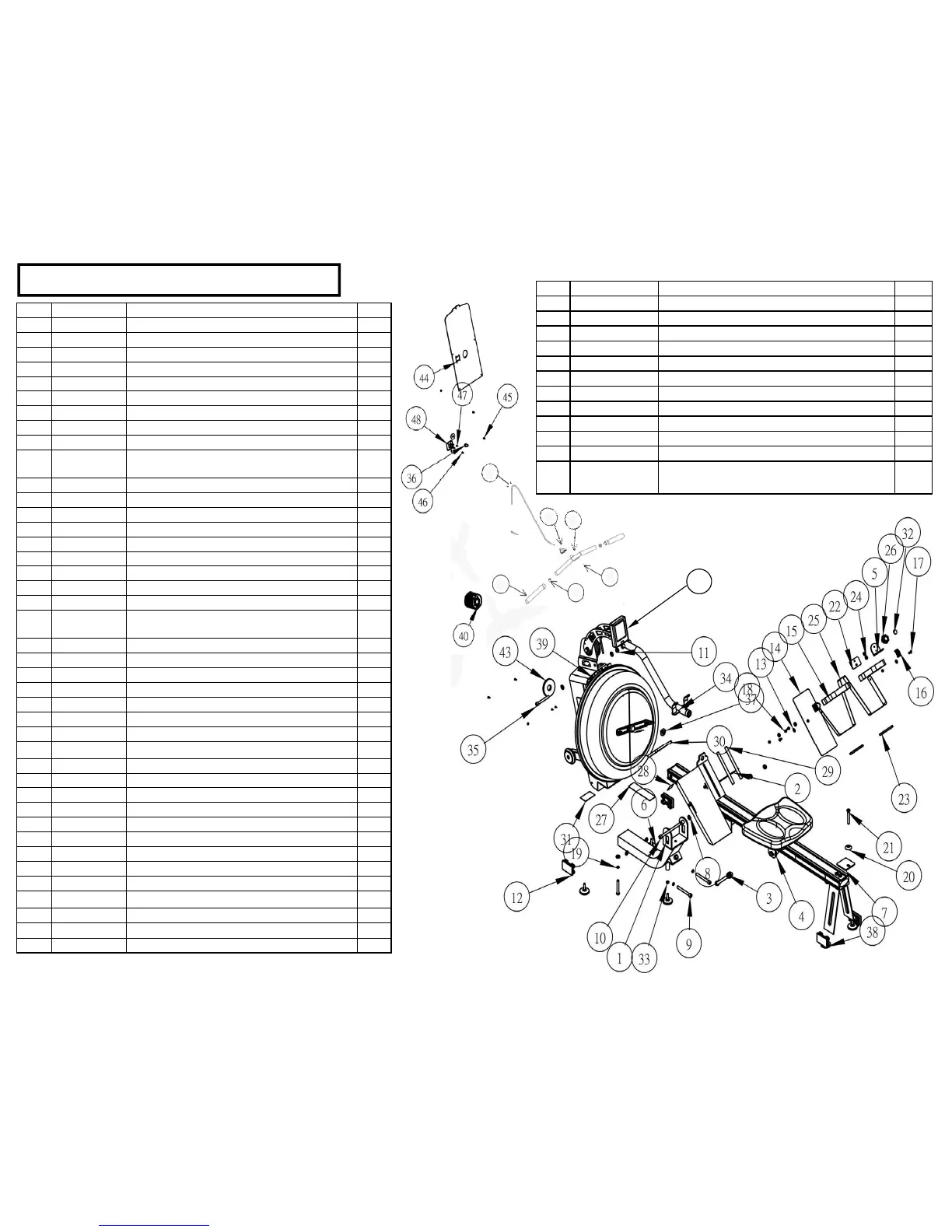

Parts List/Exploded Diagram:
