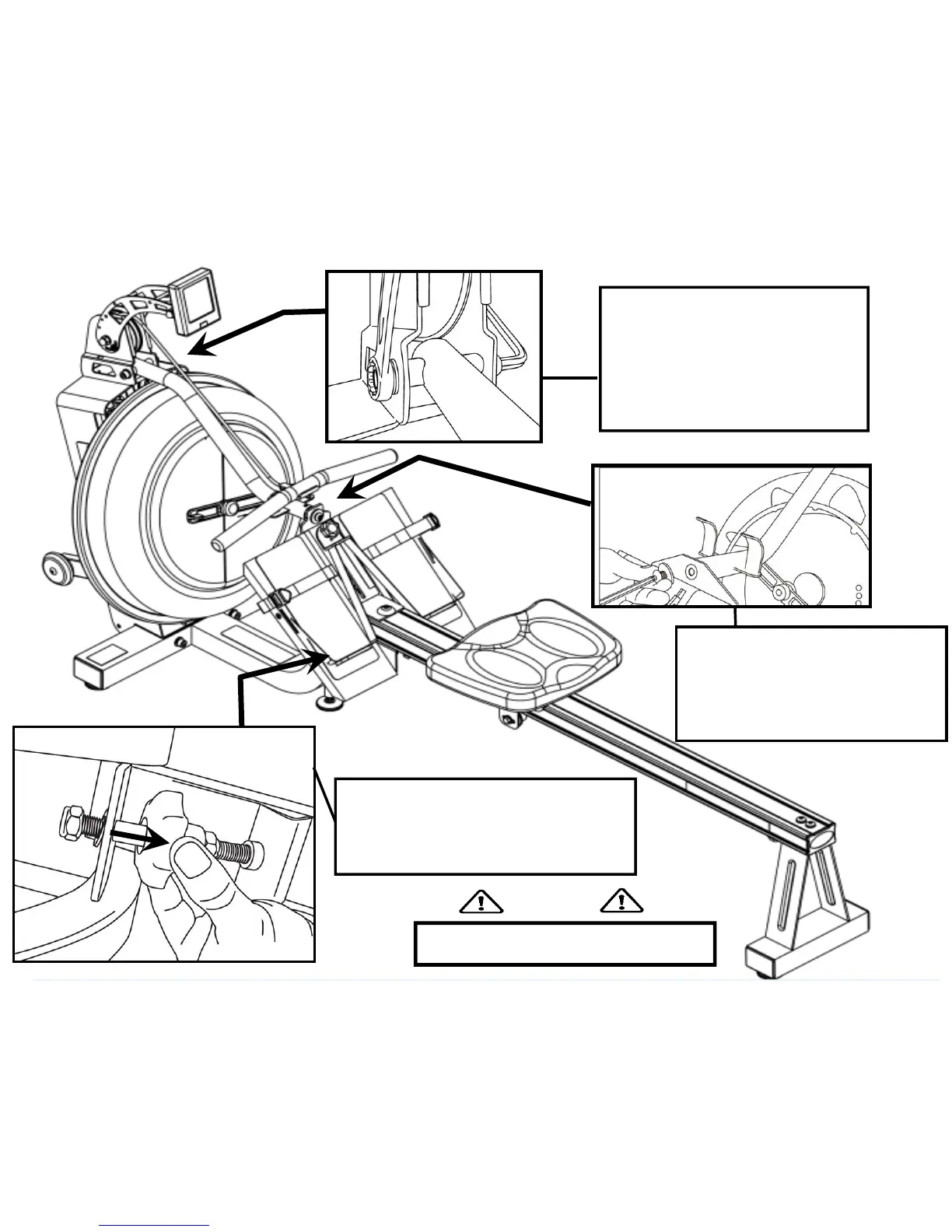

Carefully lower the rower to its nor-
mal operating position to complete
assembly with S-bend installation
and frame tensioning bolt.
Step 10. Install rear of S-bend onto the
upper frame using M10x80mmbolt,
M10Nylock and 2xM10washers.
Step 12. Install the Frame tensioning bolt
and tighten as far as it can go. This will pre-
tension the frame to the proper position and
complete the assembly
.
Step 11. Attach the S-bend to the foot-
plate as shown. Tilt the upper frame
slightly forward to align in the proper po-
sition. Note the M10x15mm S-bend
bolt w/washer is pre-installed on the S-
bend.
Keep fingers clear of pivoting parts and rower
seat when lowering to operating position.
Caution
10
11
12
