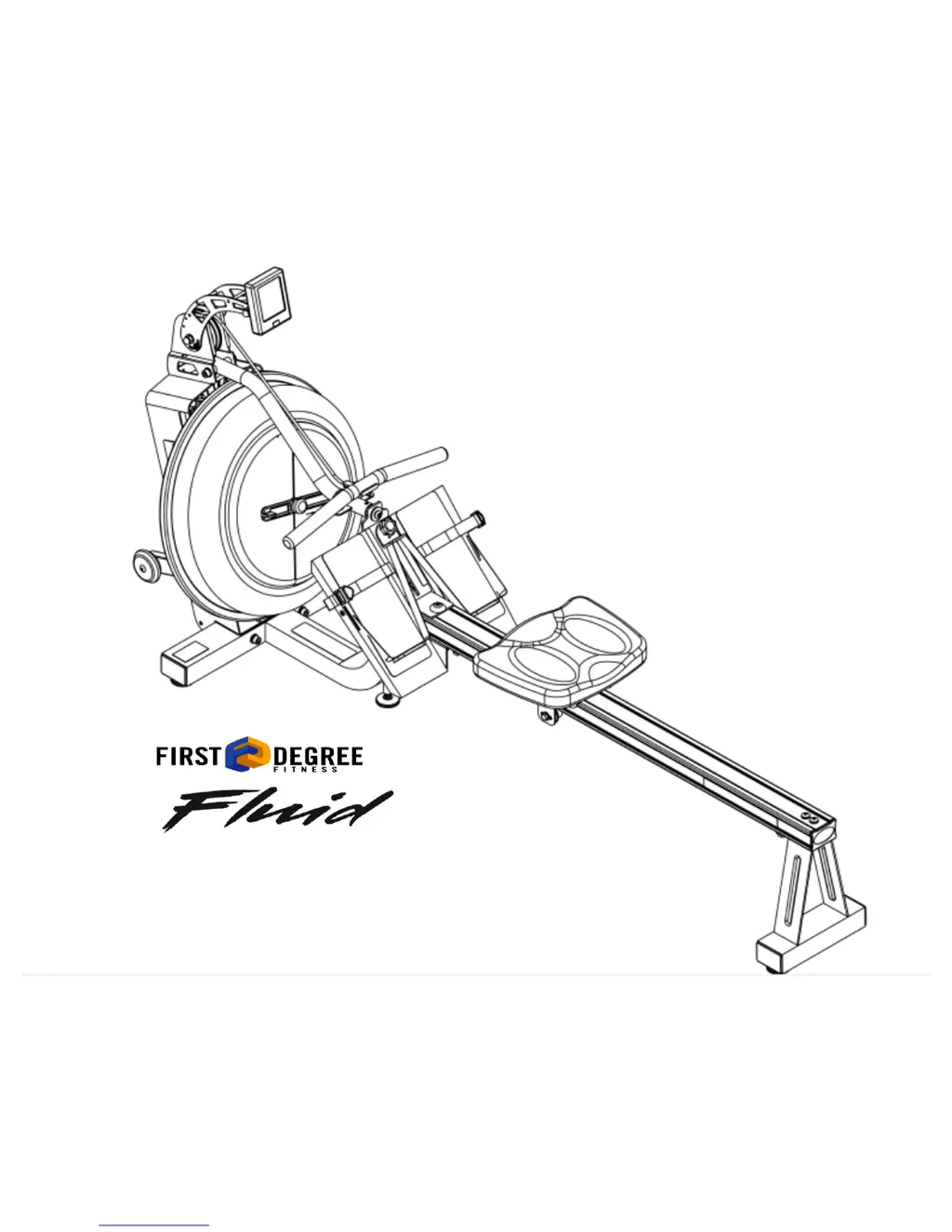

First Degree Fluid FR-E216 - User Manual

First Degree Fluid FR-E216
24 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
Owners Manual
FR-E216

Questions and Answers

  • T
    Terry SchultzAug 14, 2025
    What to do if the computer screen illuminates, but does not register when rowing on my First Degree Fluid FR-E216?
    • D
      daylauraAug 14, 2025
      If the computer screen on your First Degree Fitness Equipment illuminates but doesn't register when you're rowing, first ensure the computer lead is properly connected. If it is, check the sensor gap. If problems persist, it may indicate a loose or failed connection or the sensor gap may be too wide.
  • O
    Olivia HowardAug 17, 2025
    Why does the water change color in my First Degree Fitness Equipment?
    • B
      Brittany ButlerAug 17, 2025
      If the water in your First Degree Fitness Equipment changes color or becomes cloudy, it's likely due to direct sunlight exposure or a lack of water treatment. To resolve this, move the rower out of direct sunlight. You may also need to add water treatment and blue dye, or replace the tank water as directed.
  • K
    Kari AllenAug 21, 2025
    How to fix a rowing stroke return that is too light on First Degree Fluid FR-E216 Fitness Equipment?
    • A
      Amy AndrewsAug 21, 2025
      If the rowing stroke return feels too light on your First Degree Fitness Equipment, it's likely that the bungee cord doesn't have enough tension. To fix this, open the rear Perspex cover and cut the bungee tie wrap. Then, tighten the bungee in small increments using the tie-off tab. Test the tension by allowing the rowing handle to return to its furthest point forward, ensuring there's still slight tension. Note that light fraying of the bungee cord is normal.
  • M
    Megan HammondAug 25, 2025
    Why is the E-216 computer display erratic on my First Degree Fitness Equipment?
    • S
      Sarah Wells DDSAug 25, 2025
      If the E-216 computer display on your First Degree Fitness Equipment shows SPM and 500-meter times erratically, the gap between the sensor and magnetic ring is likely too wide. Adjust the sensor location using the rear sliding adjustment inside the rear Perspex cover.
  • R
    rmillerAug 28, 2025
    What to do if my First Degree Fluid FR-E216 Fitness Equipment rocks from side to side?
    • P
      Patrick BanksAug 28, 2025
      If your First Degree Fitness Equipment rocks from side to side when you sit on it, the front or rear frame levelers probably need adjustment. Adjust the front two frame levelers or rear leg levelers until the rower is stable. It's normal for the lower rear leveler to rest slightly off the floor.
  • L
    Laura CarrilloSep 1, 2025
    Why does the E-216 computer not illuminate after battery installation on my First Degree Fitness Equipment?
    • T
      Terry WilliamsSep 1, 2025
      If the E-216 computer on your First Degree Fitness Equipment doesn't illuminate after installing batteries, it's likely the batteries are either installed incorrectly or need replacing. Reinstall the batteries in the correct position and try again. If the screen still doesn't light up, try rotating the batteries slightly.
  • J
    Joseph GonzalezSep 5, 2025
    How to fix a lumpy rowing stroke on First Degree Fluid FR-E216 Fitness Equipment?
    • A
      Amber SmithSep 5, 2025
      If the rowing stroke on your First Degree Fitness Equipment feels lumpy instead of smooth, the Dyneema rope is likely twisted. To correct this, pull the rowing handle to the end and turn the handle to untwist the rope. Note that light fraying is normal.
  • D
    Dr. Andrew LongSep 8, 2025
    Why does the front of my First Degree Fluid FR-E216 lift during rowing?
    • T
      Teresa FisherSep 8, 2025
      If the front of your First Degree Fitness Equipment lifts slightly during vigorous rowing, it's likely because the lower rear frame leveler is too high. Ensure the frame tensioning bolt is tightened properly and that the lower rear frame leveler is approximately 5mm off the ground.

Summary

Introduction to the E-216 Rower

E-216 Rowing Machine Box Contents

First Degree E-216 Assembly Guide

E-216 Tank Filling and Water Treatment

How to Operate the E-216 Rower

Recommended Rowing Frequency

Guidance on training frequency and duration for optimal fitness benefits.

E-216 Rower Operational Instructions

Adjusting the Heel Support

Instructions for adjusting the heel support for optimal foot placement and comfort.

Understanding Resistance Levels

Explanation of how resistance levels are determined by the indicator and water level.

E-216 Rowing Ergometer Computer

Computer Display Functions and Operation

Details on display parameters, auto start, and inactivity reset functions of the computer.

Long-Term Maintenance and Operation of E-216

Long-Term Water Treatment Procedures

Guidelines for maintaining water clarity and longevity, including tablet usage and sunlight exposure.

Dyneema Rope Drive System Features

Information on the Dyneema rope drive system, its properties, and maintenance.

Heel Support Adjuster Functionality

Details on the unique and easy-to-use Heel Support Adjuster for user comfort.

E-216 Maintenance Schedule

E-216 Troubleshooting Guide

Replacing the E-216 Bungee Shock Cord

E-216 Parts List and Exploded Diagram

E-216 Exploded View Diagram

First Degree Rower International Warranty

First Degree Fluid FR-E216 Specifications

General IconGeneral
BrandFirst Degree
ModelFluid FR-E216
CategoryFitness Equipment
LanguageEnglish
