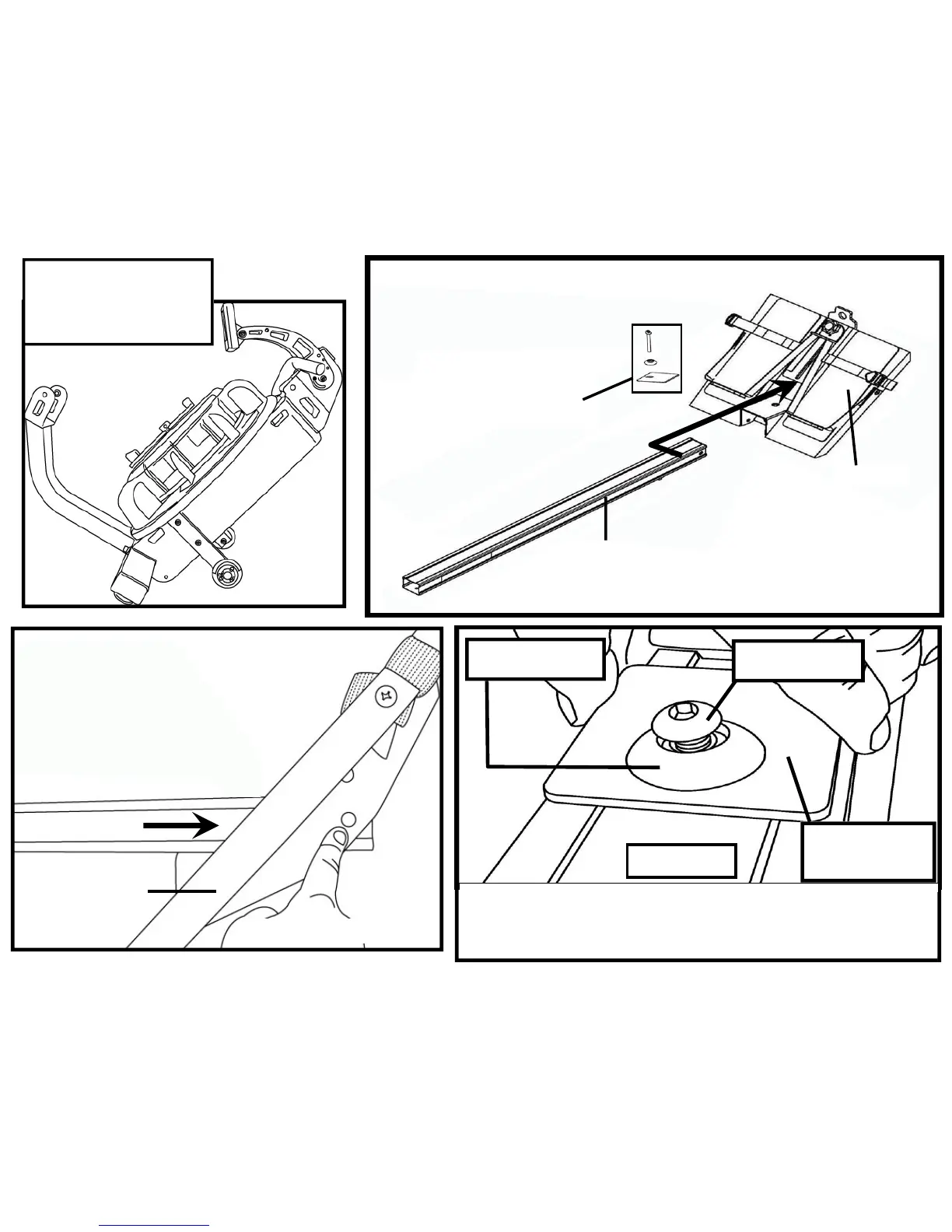

Once the lower frame is se-
curely attached, continue
steps 5-9 of the assembly
from this position.
5
Top View
M10x 70mm bolt
Plastic dome cap
Vertical seat rail
support bracket
5a
Footplate
Check alignment here
Next, attach the seat rail onto the footplate using the M10x70mm bolt,
Plastic dome cap, and Vertical seat rail support bracket as shown.
M10x70mm bolt, Plastic
dome cap, and Vertical
seat rail support bracket
Seat Rail
Footplate
Step 5: Insert the seat rail into the foot-
plate until the front of the seat rail just
protrudes slightly as shown.
Check alignment before installing vertical
seat rail bolt assembly.
Seat Rail
5b
