6

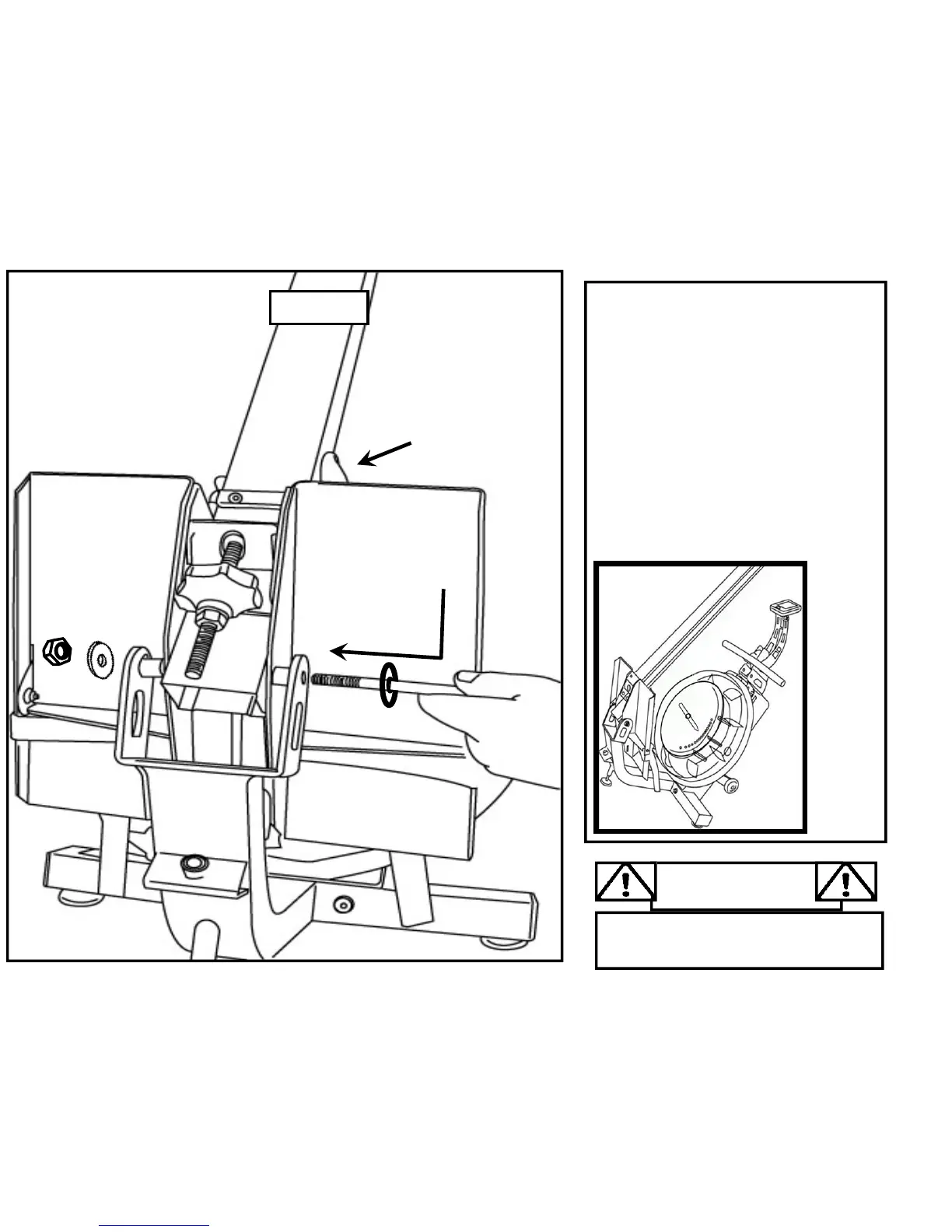

Step 6. Install completed footplate/seat rail
assembly onto the main frame as shown, us-
ing M10X140mm bolt, M10 Nylock nut and
2x M10 washers.
Insert the 140mm footplate bolt with a stan-
dard M10 washer through the mainframe,
footplate and seat rail as shown left.
Secure with M10 Nylock nut, and standard
M10 Washer.
Note: For ease of assembly, keep the rower
in this position (with seat rail over the tank)
for Steps 8-9.
WARNING
Keep fingers clear of pivoting
parts during assembly.
M10 x 140mm Seat rail
bolt and M10 washer
M10 Nylock nut and
M10 Washer
Seat Rail
Hold seat rail/Footplate
assembly here
To Next Page
