13

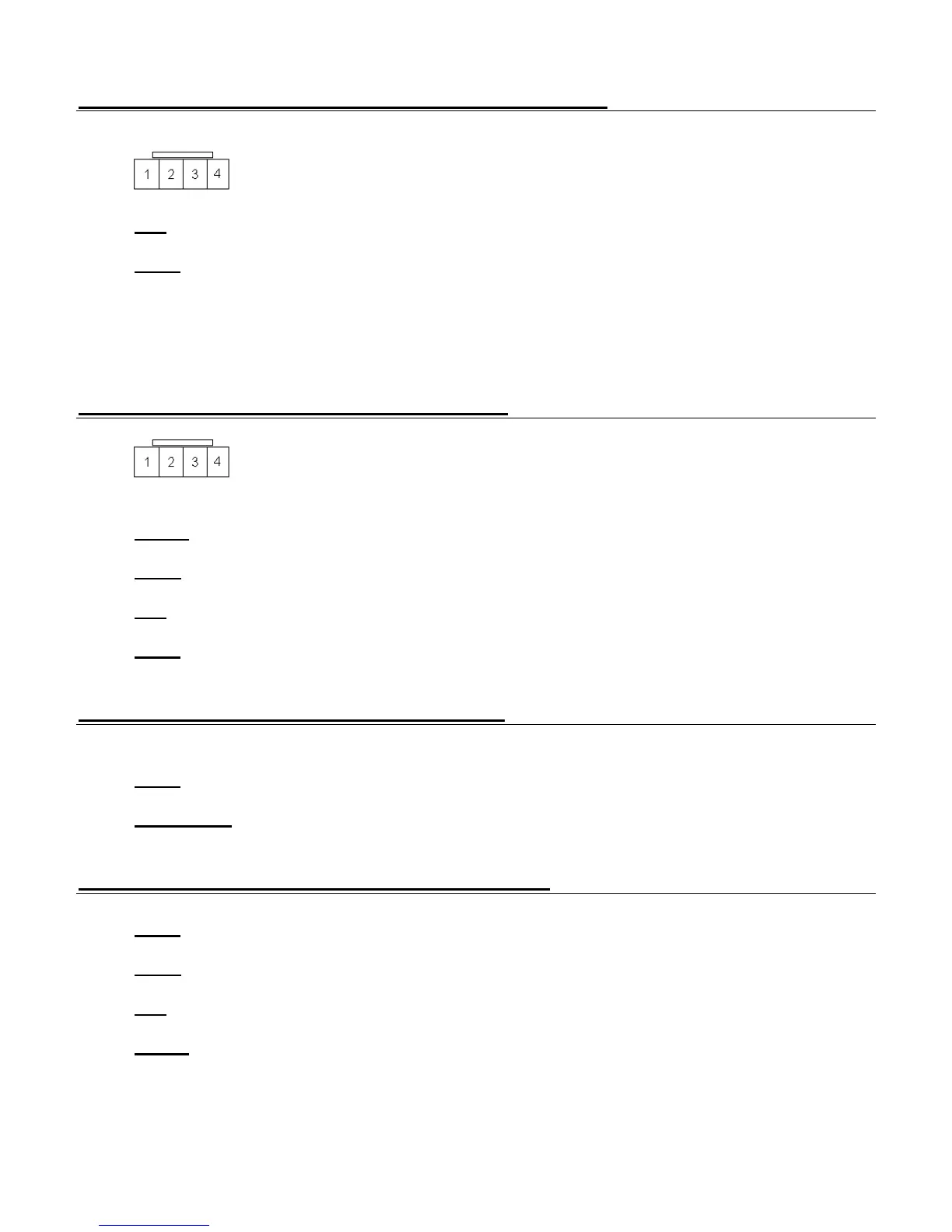

Connector 5 (CN5), 4-Pin (RS232 Port - 2 Way Data)
Pin 1 Red - Constant 12V positive (+) output.
Pin 2 Black - Negative (-) ground This wire transmits the signal to remote.
Pin 3 RX input
Pin 4 TX output
Connector 6 (CN6), 4-Pin (Antenna Cable)
Pin 1 Yellow - RX input. This wire receives the signal from remote.
Pin 2 White - TX output. This wire transmits the signal to remote.
Pin 3 Red Constant 12V positive (+) output.
Pin 4 Black Negative (-) ground.
Connector 7 (CN7), 2-Pin (Pre-wired LED)
Pin 1 Black - L.E.D negative (-) ground.
Pin 2 Black/White- L.E.D. 3V positive (+) output.
Connector 8 (CN8), 4-Pin (Shock Sensor Port)
Pin 1 Black - Negative (-) ground.
Pin 2 White - 2
nd
stage negative (-) input. (Instant trigger)
Pin 3 Red - 12V positive (+) output.
Pin 4 Yellow - 1
st
stage negative (-) input. (Warn away)
