Maintenance Instructions
Seite/Page 102 - Kaptitel/Chapter 7: Maintenance Instructions 9.2.16

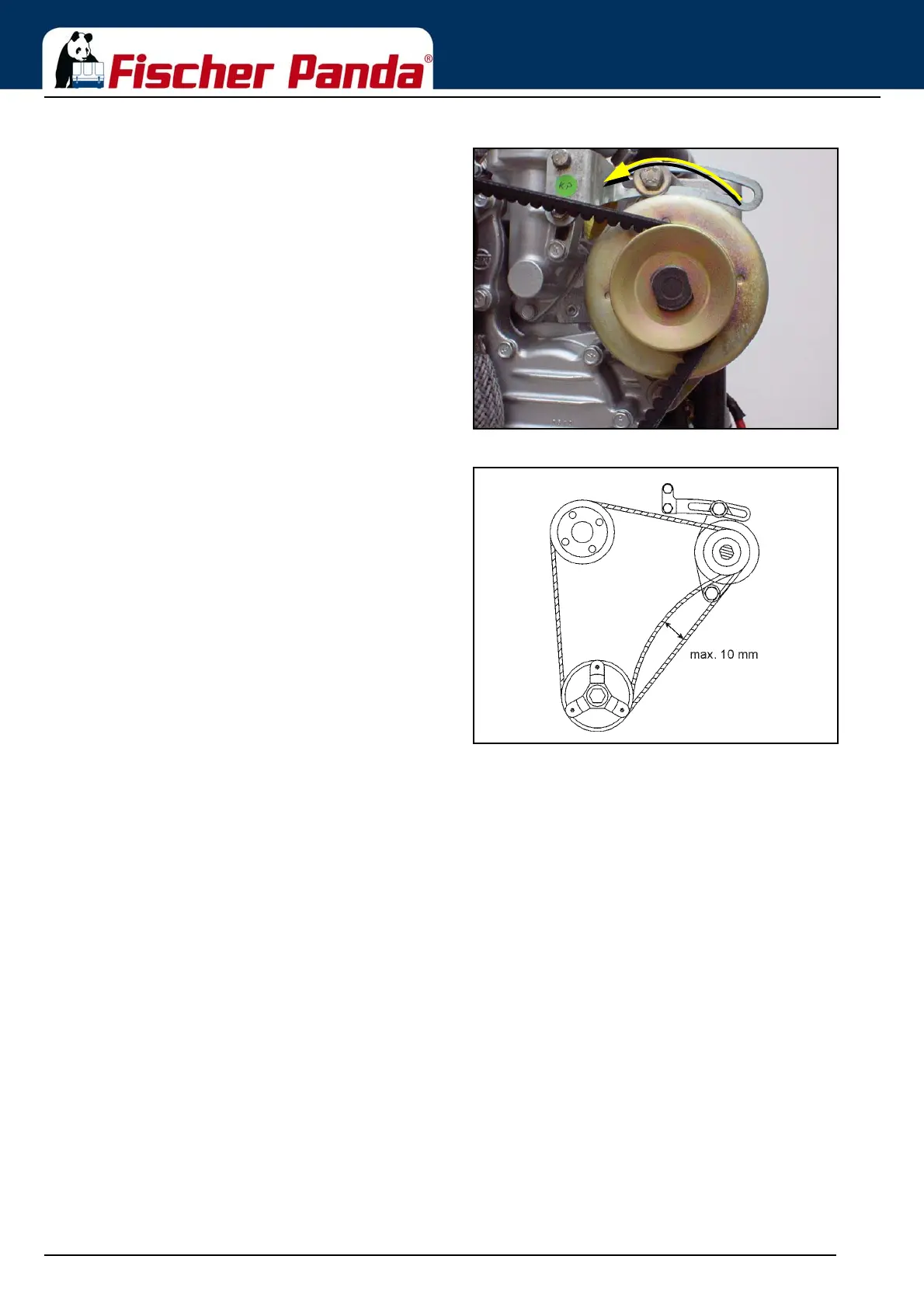

Fig. 7.12.0-3: Alternator3. The alternator must be pressed in the direction of the
thermostat housing.
4. Exchange the V-belt.
Sample Picture
Fig. 7.12.0-4: V-belt5. Afterwards, the V-belt must be tightened again.
6. The V-belt must be tightened in such a way, that it is
possible to press it about approx. 10 mm.
7. Tighten the screws above and underneath the alternator.
Sample picture
