7.17 Replacing the operating current relays
NOTE:Representative procedureThe described procedure is representative for Fischer Panda
generators. The original location of the item must be taken
from the generator description of this manual. All
replacements and repairs can be done by the user.

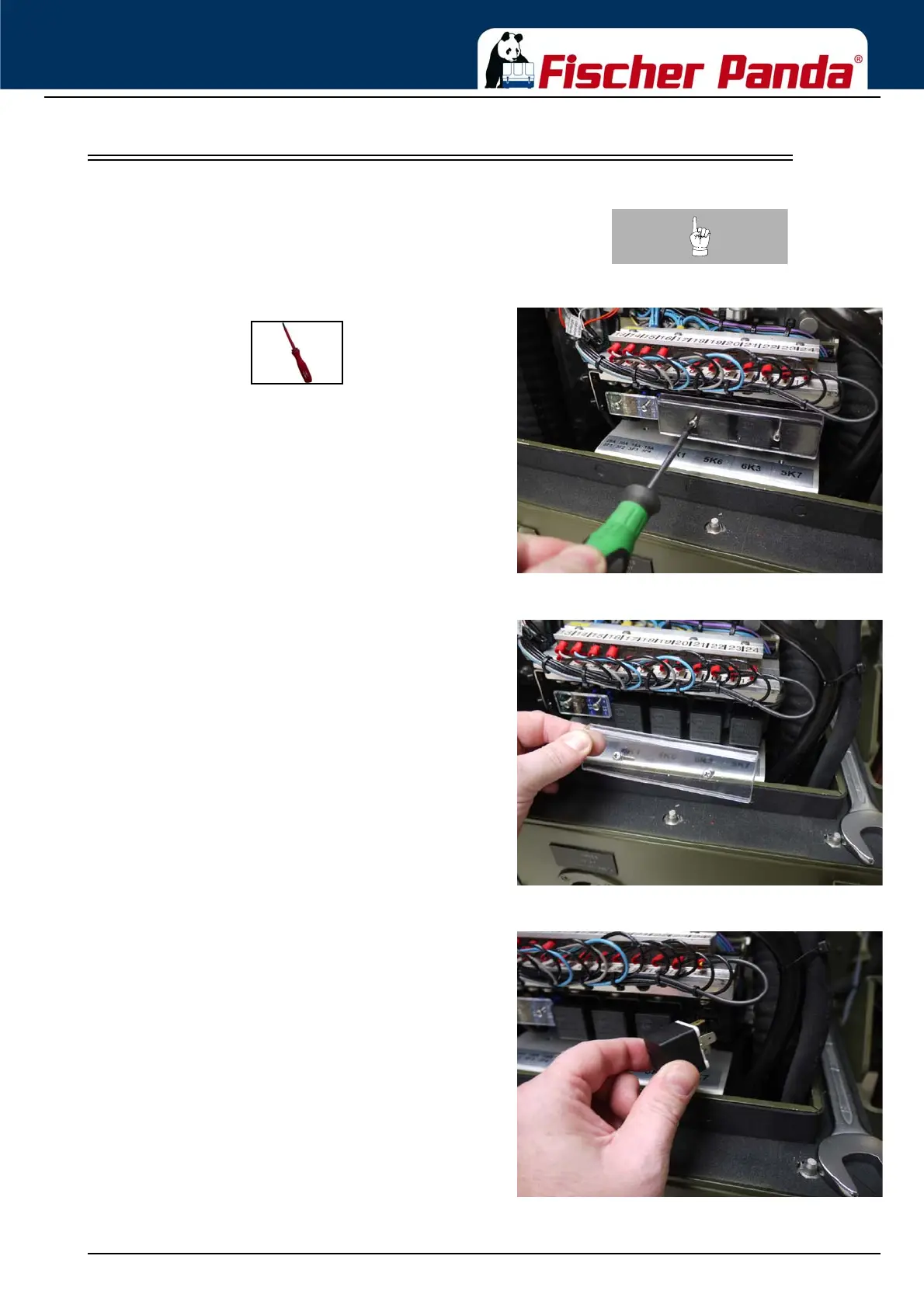

Fig. 7.17-1: Relay1. Remove the two fixing screws of the plastic cover using a
size 0 or 1 phillips screwdriver.
Fig. 7.17-2: Relay2. Remove the plastic cover.
Fig. 7.17-3: Relay3. Pull relay from the socket and replace with new relay.
4. To reinstall, reverse the order of steps.
