The Panda Generator
4.3 Details of functional units
4.3.1 Control panel
The control panel is fitted with various monitoring functions, which increase functional reliability and operating safety
of the generator. Various parts of the generator are monitored with sensors which, when triggered, generate an error
message and can shut down generator operation under certain circumstances to prevent damage.

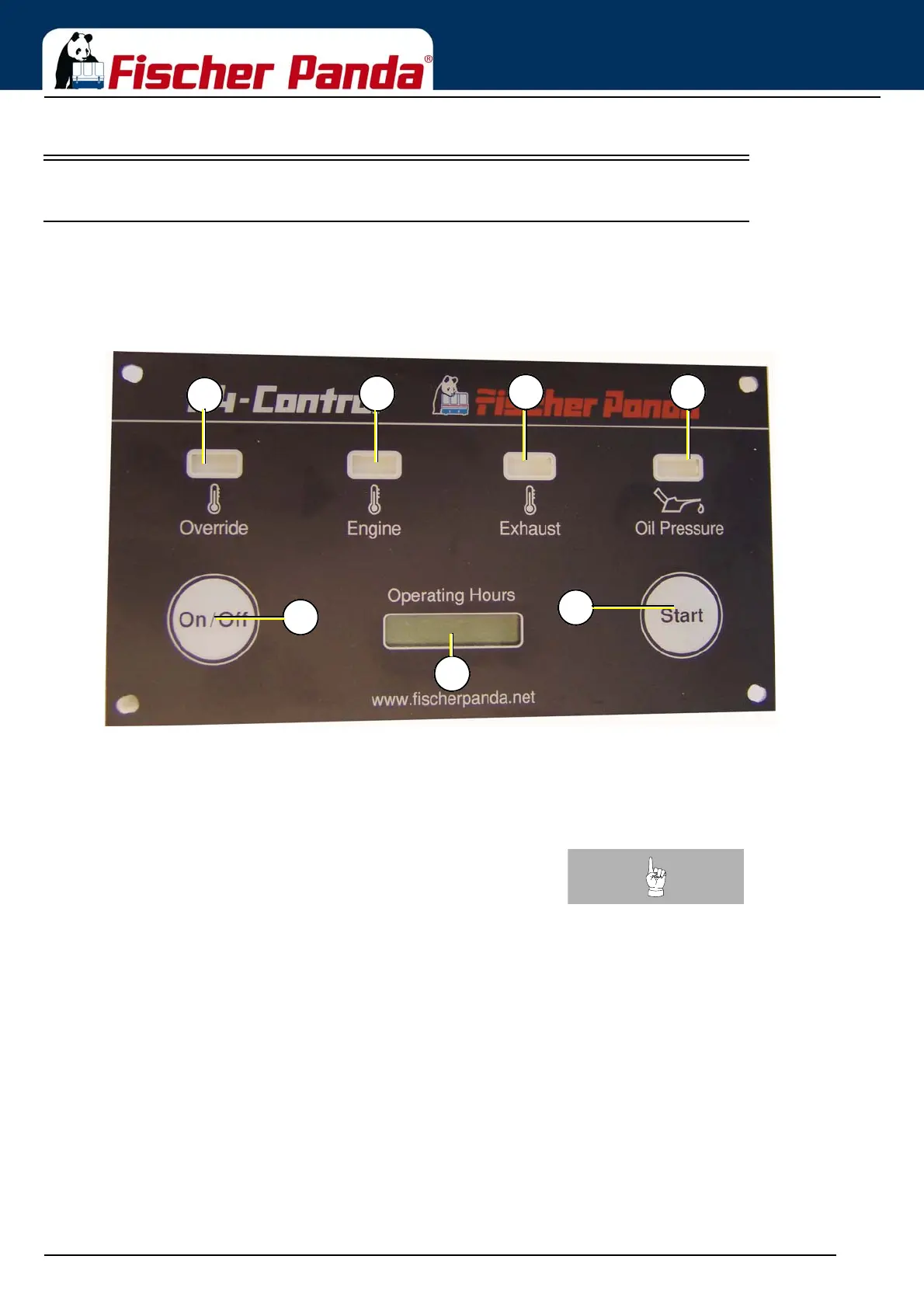

Fig. 4.3-1: Remote Control Panel - Front Side
Notice!:See remote control panel data sheet for details!
01) Display operating hours
02) Power „ON/OFF“-button
03) Generator „Start“-button
04) Control light „Override“
05) Warning light for engine temperature
06) Warning light for exhaust temperature
07) Warning light for oil pressure
