Maintenance Instructions
Seite/Page 110 - Kaptitel/Chapter 7: Maintenance Instructions 9.2.16

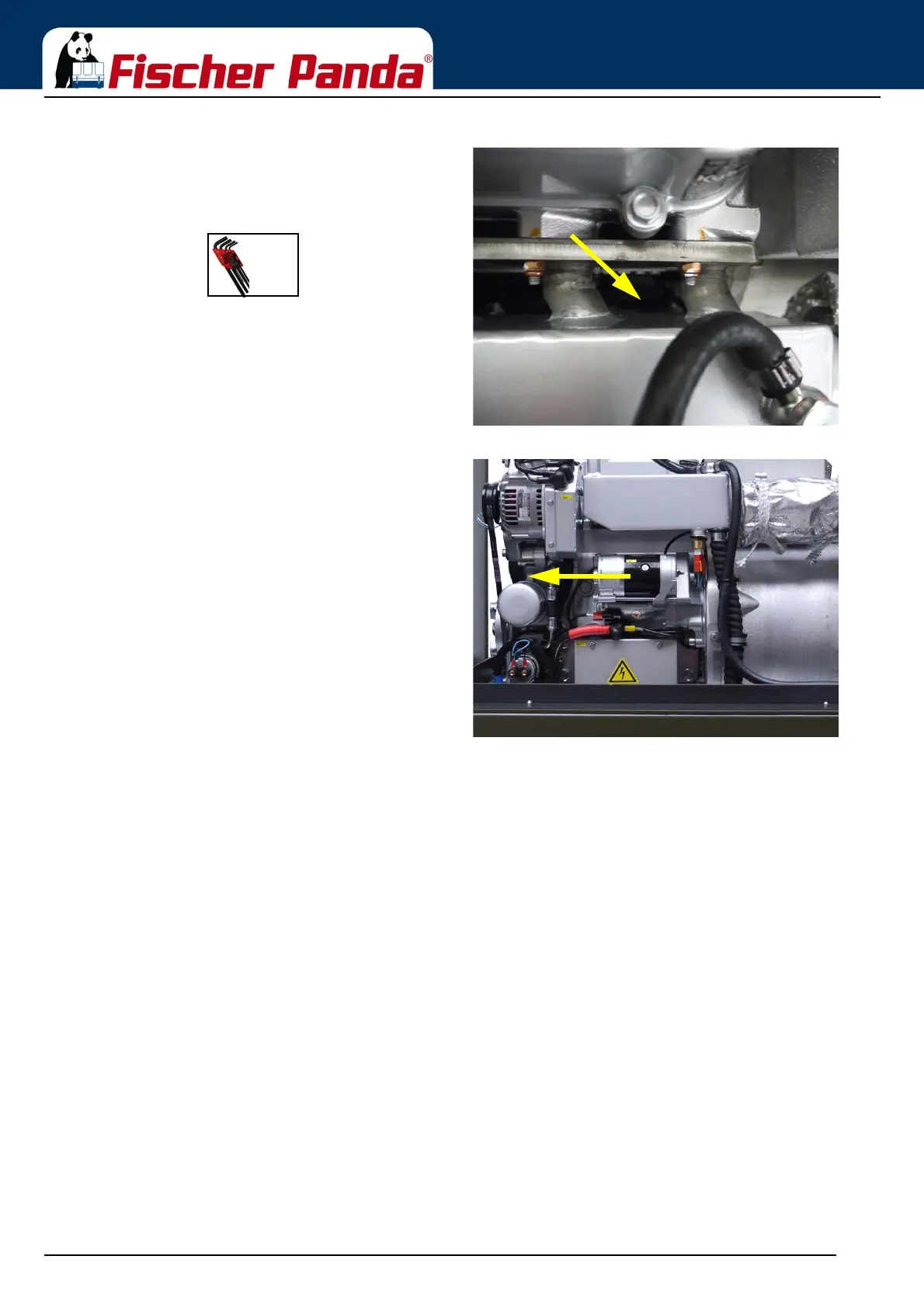

Fig. 7.15-6: Electric starterThe upper attachment screw is visible from up top, view
between engine and exhaust manifold.
6. Slide the socket wrench fitted with both extensions under
the exhaust manifold and insert in the hex socket screw.
Loosen upper attachment screw.
Fig. 7.15-7: Electric starter7. Pull out electric starter.
8. To reinstall, reverse the order of steps.
