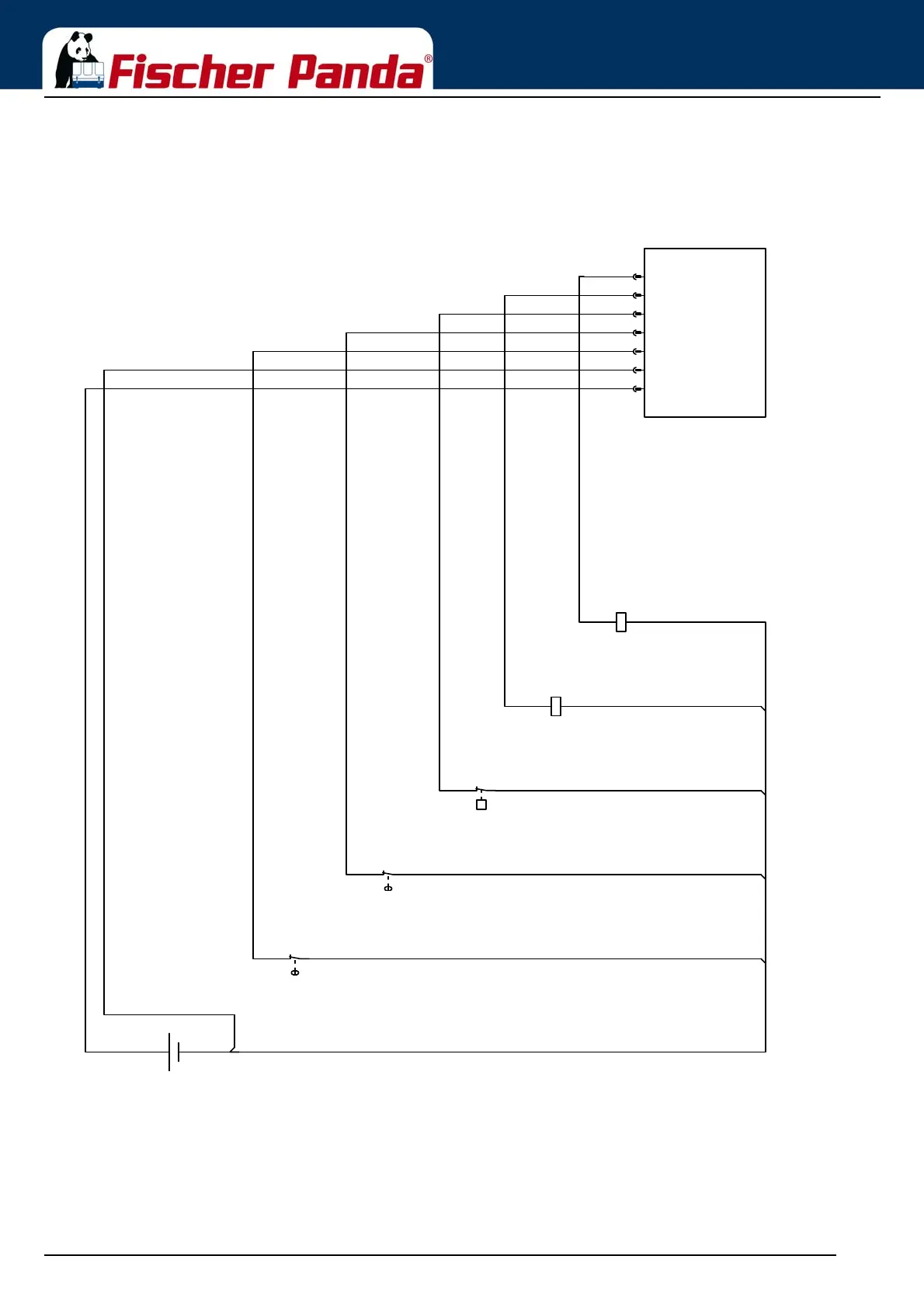

Remote Control Panel P4 Control
Seite/Page 168 - Kaptitel/Chapter 10: Remote Control Panel P4 Control 9.2.16
+ -
DC power supply 12V
-G
Temperature fail - engine open-fail/closed-OK (input -> GND)
21 22
-B
Temperature fail - exhaust open-fail/closed-OK (input -> GND)
21 22
-B
start (output -> +)
A1 A2
-K
fuel (output -> +)
A1 A2
-K
P
oil pressure fail open-fail/closed-OK (input -> GND)
21
22
-B
GND
Vbat
Fail-oil press
Fail-t-engine
Fail-t-exhaust
fuel relay
start relay
Panel P04
123456 7
-A
