Maintenance Instructions
9.2.16 Kapitel/Chapter 7: Maintenance Instructions - Seite/Page 89

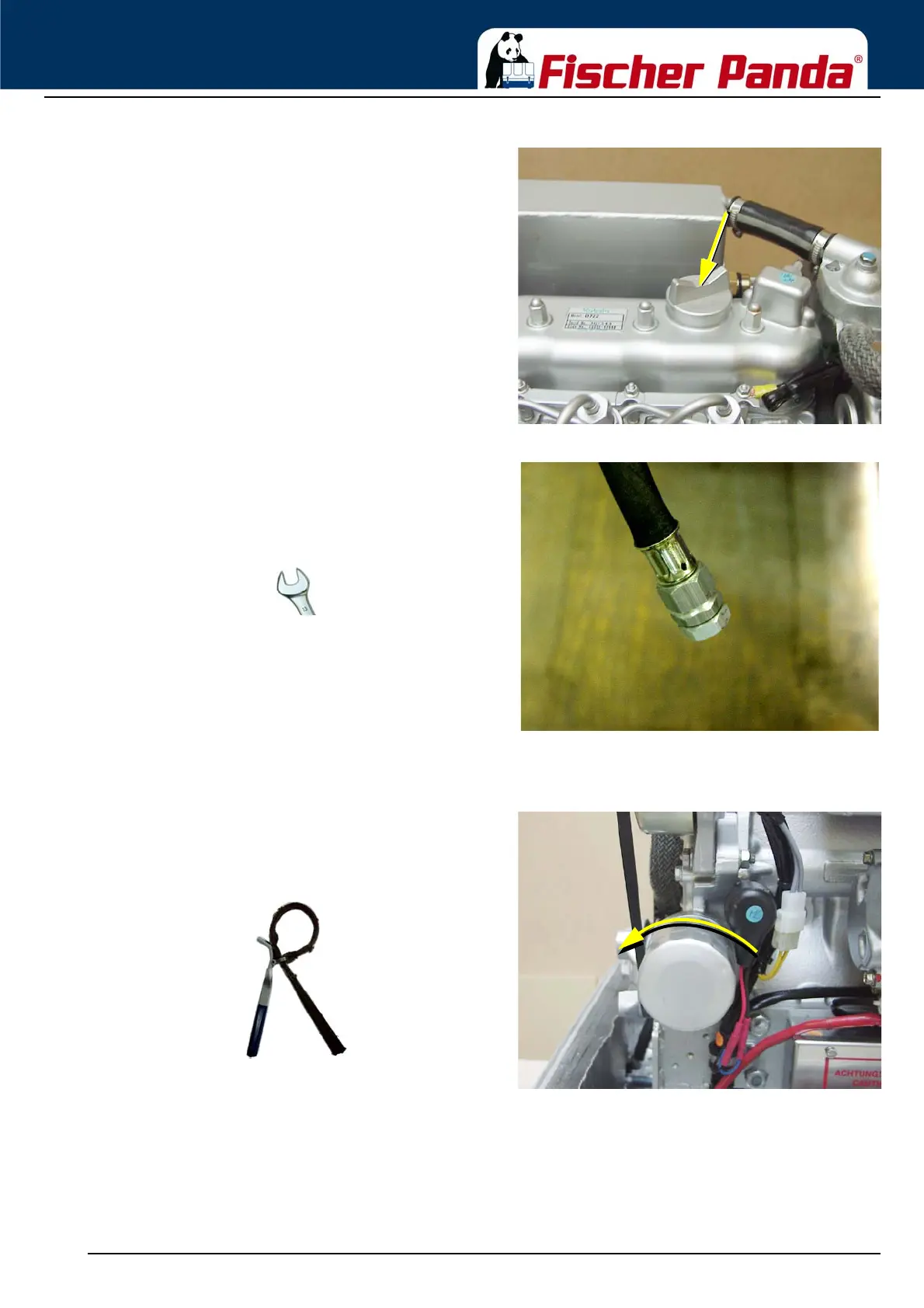

Fig. 7.8-1: Oil filling cap2. Loosen oil filling cap
Unscrew the oil filling cap. This is necessary, because
otherwise a vacuum will form and the oil can not
completely drain off.
Sample picture
Fig. 7.8-2: Oil drain hose3. Open oil drain screw.
Unscrew the oil drain screw by means of the open-ended
wrench from the oil drain hose (rotating direction left).
Use a second open-ended wrench to lock. Make sure to
do this over the container.
Use spanner size 17 mm.
4. Discharge used oil.
Let the entire amount of oil drain out of the engine. This can take several minutes.
Fig. 7.8-3: Oil filter5. Remove used oil filter / clean oil screen
Release the oil filter by turning the filter wrench
counterclockwise. The filter might be full of oil. Make sure
to not spill anything and avoid skin contact.
Sample picture
