ATTACH BRACKETS AND MOUNTING SCREWS
1
2

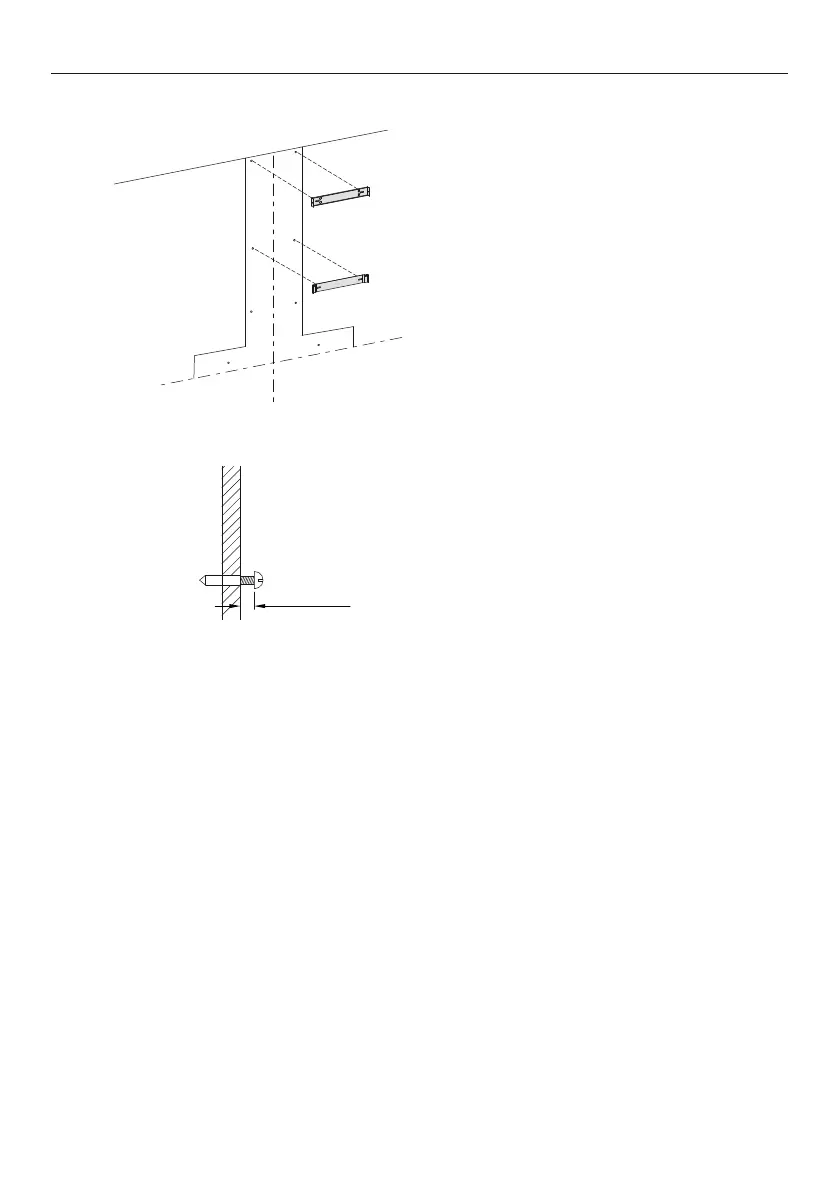

Attach the chimney bracket and upper
chimney bracket (if using the upper
chimney) in the locations shown. Use
the 30mm screws and expansion
plugs if attaching to masonry.
Attach the upper hood mounting
screws. Use the 30mm screws
and expansion plugs if attaching
to masonry.
Ensure that there is a 2mm gap
between the screw head and the wall.
2mm
