6

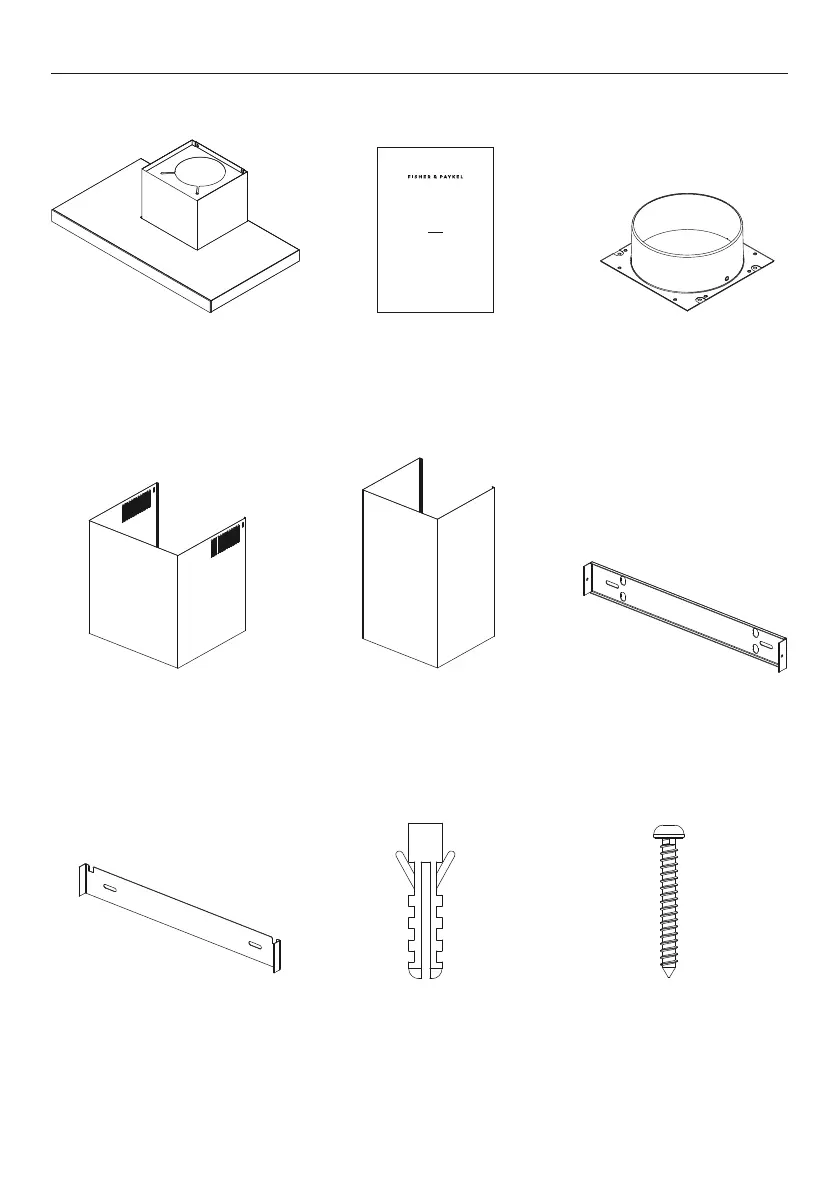

PARTS SUPPLIED
Upper chimney
bracket (1)
Installation guide
(1)
Chimney
(1)
Expansion plug
(8)
30mm self
tapping screw
(8)
Upper chimney
(1)
Rangehood
(1)
Chimney bracket
(1)
200mm diameter
ducting adapter
(1) and screws (4)
INSTALLATION GUIDE
NZ AU
WALL RANGEHOOD, BOX CHIMNEY
WITH EXTERNAL BLOWER
HC60DCEXB3 & HC90DCEXB3 models
