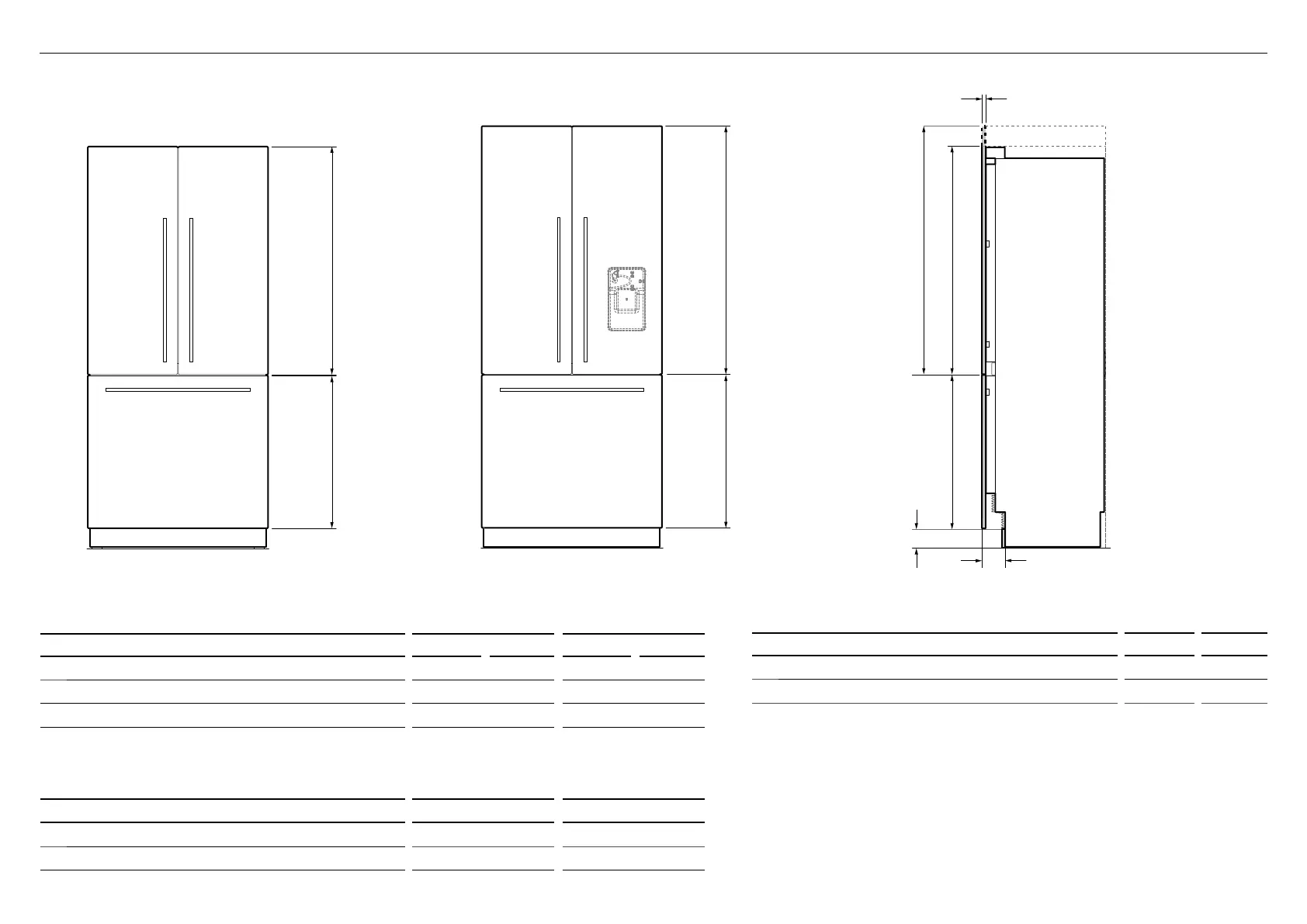

Fisher & Paykel ACTIVESMART RS36A80 - Stainless Steel Door Panel and Toe Kick Dimensions

8
b
a
TOE KICK PANEL DIMENSIONS inches mm
d
Height of toe kick panel 4 102
e
Depth of toe kick (measured from front of door panels) 4 3/4 (120)
Note:
●
Stainless steel toe kick, height 4" (102mm) is supplied with the appliance.
Customers need to supply their own custom toe kick, height 4 – 6" (102 – 152mm).
●
For toe kick greater than 4, shorten the height of the bottom grille accordingly.
Refer to 'Toe kick installation' for more information.
b
a
RD3680 DOOR PANEL SET RD3684U DOOR PANEL SET
b
a
d
e
c
RD3680/RD3680U RD3684/RD3684U
DOOR PANEL SETS DIMENSIONS inches mm inches mm
a
Height of top door panels 451/4 1150 495/16 1252
b
Height of bottom drawer panel 303/8 772 303/8 772
c
Depth of appliance front panels (excluding handles) 3/4 19 3/4 19
Note:
●
Fisher & Paykel Stainless steel door panels are not supplied and must be purchased separately.
Model no. RD3680 / RD3684 (Iceonly model) andmodelno. RD3680U / RD3684U (Ice and Water model).
DOOR PANEL WEIGHT lbs kg
Maximum weight of each top door panel
(with handle) 22 10
Maximum weight of drawer panel
(with handle) 241/4 11
STAINLESS STEEL DOOR PANEL AND TOE KICK DIMENSIONS
