6

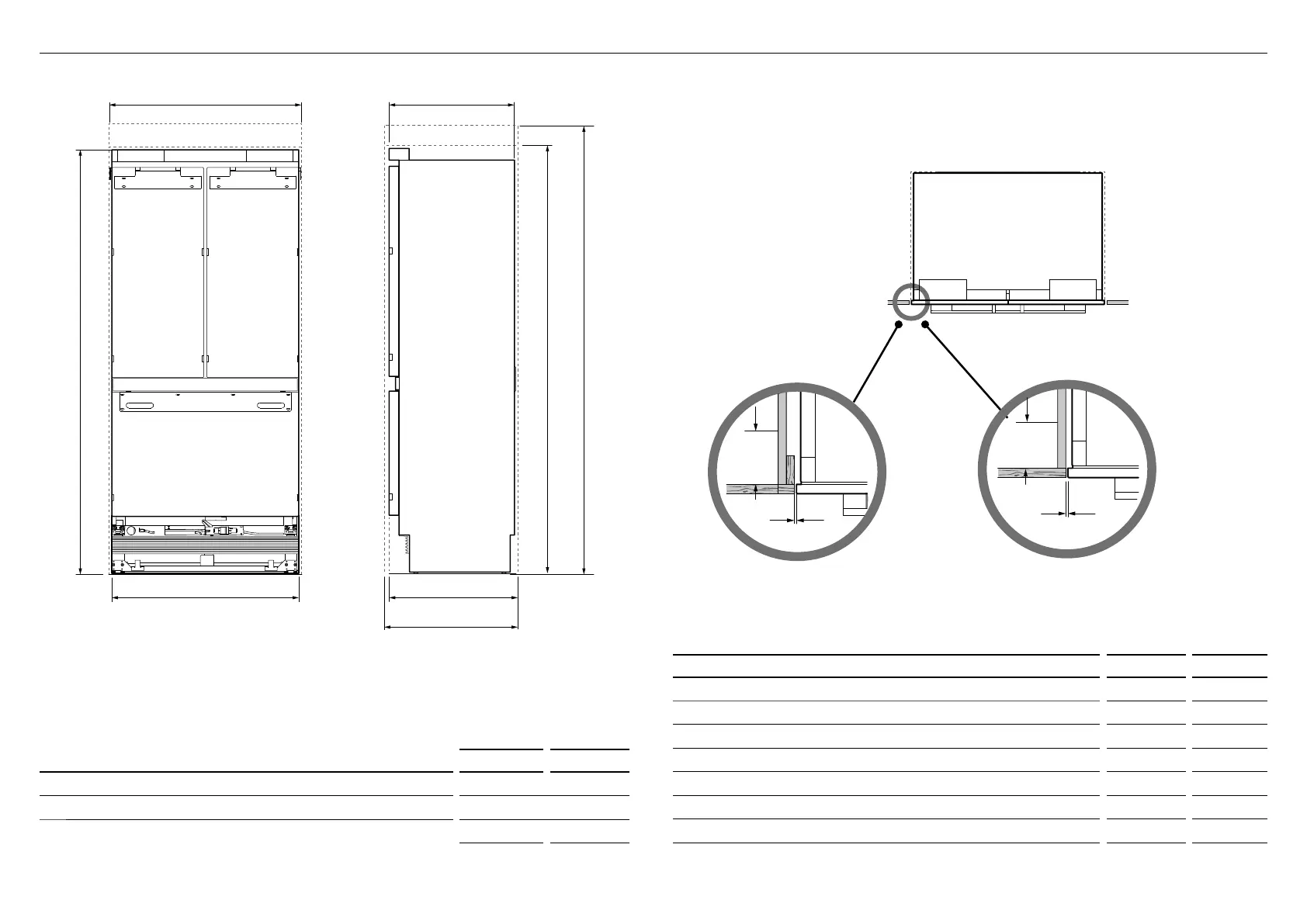

APPLIANCE AND CAVITY DIMENSIONS
APPLIANCE DIMENSIONS inches mm
A
Overall height of appliance* 7913/16 2028
B
Overall width of appliance 3511/16 906
c
Overall depth of appliance (without door panels) 233/4 603
*
Includes mounted feet
CAVITY DIMENSIONS inches mm
D
Overall height of cavity (for appliance using RD3680 door panel set) 80 2032
e
Overall height of cavity (for appliance using RD3684 door panel set) 84 2134
f
Overall width of cavity 36 914
g
Overall depth of cavity (for flush installation) 25 635
h
Overall depth of cavity (for proud installation) 24 3/4 629
i
Minimum cabinetry gap clearance from edge of appliance 3/16 4
j
Minimum required finished return min. 31/2 89
Flush with front
of cabinetry
PLAN VIEW
FRONT VIEW SIDE VIEW
IMPORTANT!
For ease of installation, ensure cavity width is consistent top
to bottom and height is consistent left to right.
b
A
f
g
h
d
c
e
Framed: Finished return top and sides Frameless: Finished return top and sides
E
B
H
C
ADA
J
I
L GF
F
K
g
J
I
J
I
E
B
H
C
ADA
J
I
L GF
F
K
g
J
I
J
I
