12

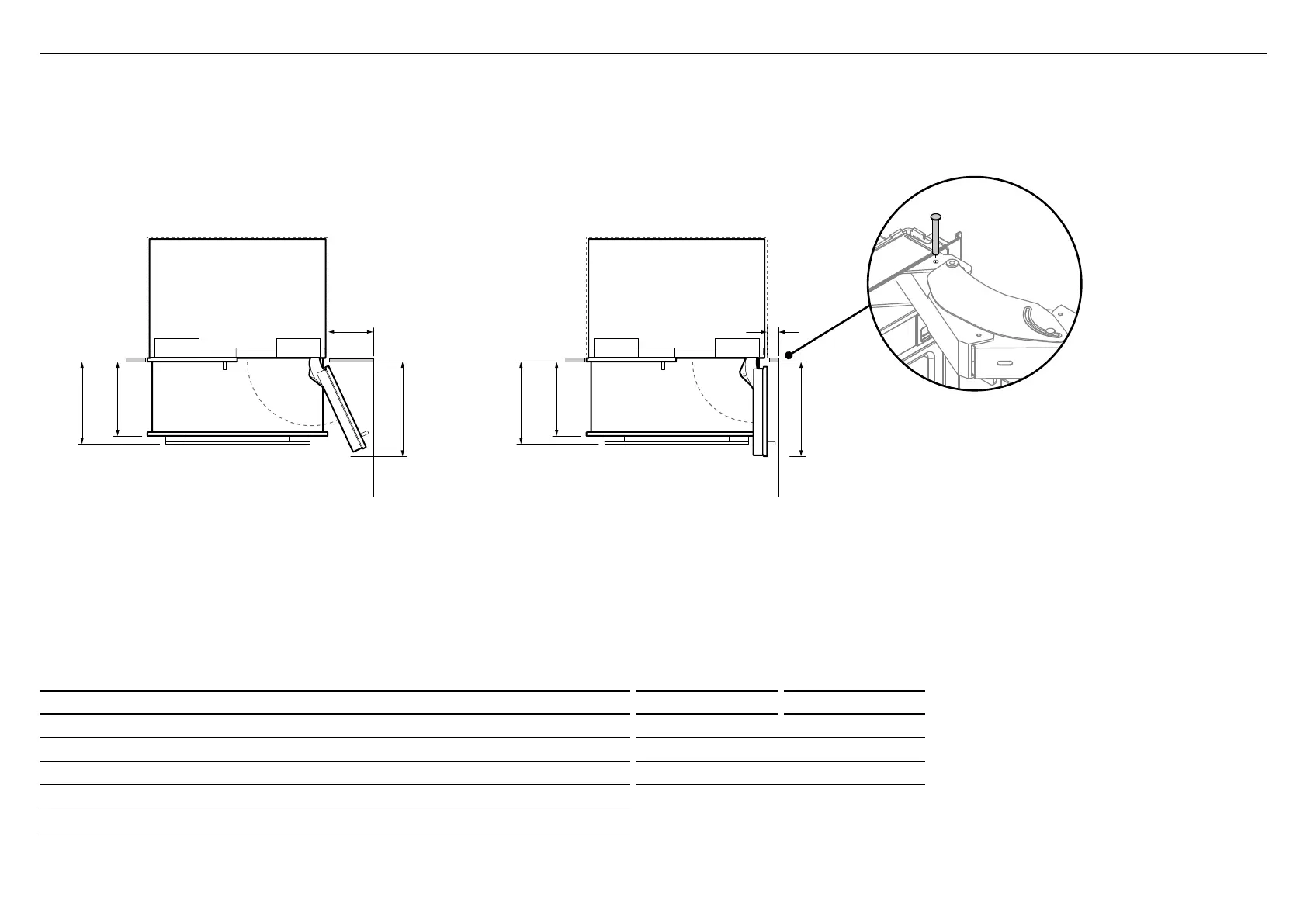

DOOR CLEARANCE
D
A
B
C
B
C
A
E
Wall Wall
90° DOOR OPENING115° DOOR OPENING
(FULL INTERNAL ACCESS)
DIMENSIONS inches mm
A
Depth of door (widest opening) measured from front of door 187/8 480
B
Depth of drawer (open) measured from front of drawer, including handle 153/4 400
C
Depth of drawer (open) measured from front of drawer, excluding handle 143/16 360
D
Minimum door clearance* to adjacent wall (115° — full internal access) 123/8 315
E
Minimum door clearance* to adjacent wall (90° — reduced internal access) 45/16 110
* Measured from front cabinetry edge. An additional 3/4" (20mm) is required when using RD3680 and RD3684 door panel sets.
Insert hinge limiting pin
WARNING!
●
Before opening the doors, ensure that the appliance is
stable.
●
Follow these steps to avoid risks that can cause serious
injury or death.
For 90° door swing, a hinge limiting pin is supplied with
yourappliance. This pin fits in the boreholes of the top hinge.
1
Open door to 90°.
2
Insert the hinge limiting pin vertically into the bore hole.
– Apply a gentle tap to the pin if it does not slide smoothly.
