Fisher & Paykel ACTIVESMART RS36A80 Installation Guide

9
H
D
A
B
D
g
A
E
I
F
C
g
DIMENSIONS inches mm
A
Height of top door panel 451/4 – 495/16 1150 – 1252
B
Width of top door panel 173/4 451
C
Gap between top door panels 3/16 4
D
Height of bottom drawer panel 287/16 – 303/8 722 – 772
E
Height from bottom of appliance to top of bottom drawerpanel 347/16 874
F
Width of bottom drawer panel 3511/16 906
G
Gap between top door panels and bottom drawer panel 3/16 4
H
Height of toe kick panel 4 – 6 102 – 152
I
Depth of custom door panels 5/8 – 3/4 16 – 19
Note:
●
Custom door panels and toe kick must be supplied by the customer.
●
Custom toe kick should be designed at 4 – 6" (102 – 152mm) relative to door / drawer panel height.
●
For toe kick greater than 4, shorten the height of the bottom grille accordingly. Refer to 'Toe kick installation' for more information.
ISO VIEW
Note: Top trim supplied for
84" (2134mm) installation
H
D
A
B
D
g
A
E
I
F
C
g
PROFILE VIEW
IMPORTANT!
Custom door/drawer panels are only
applicable for Ice only models.

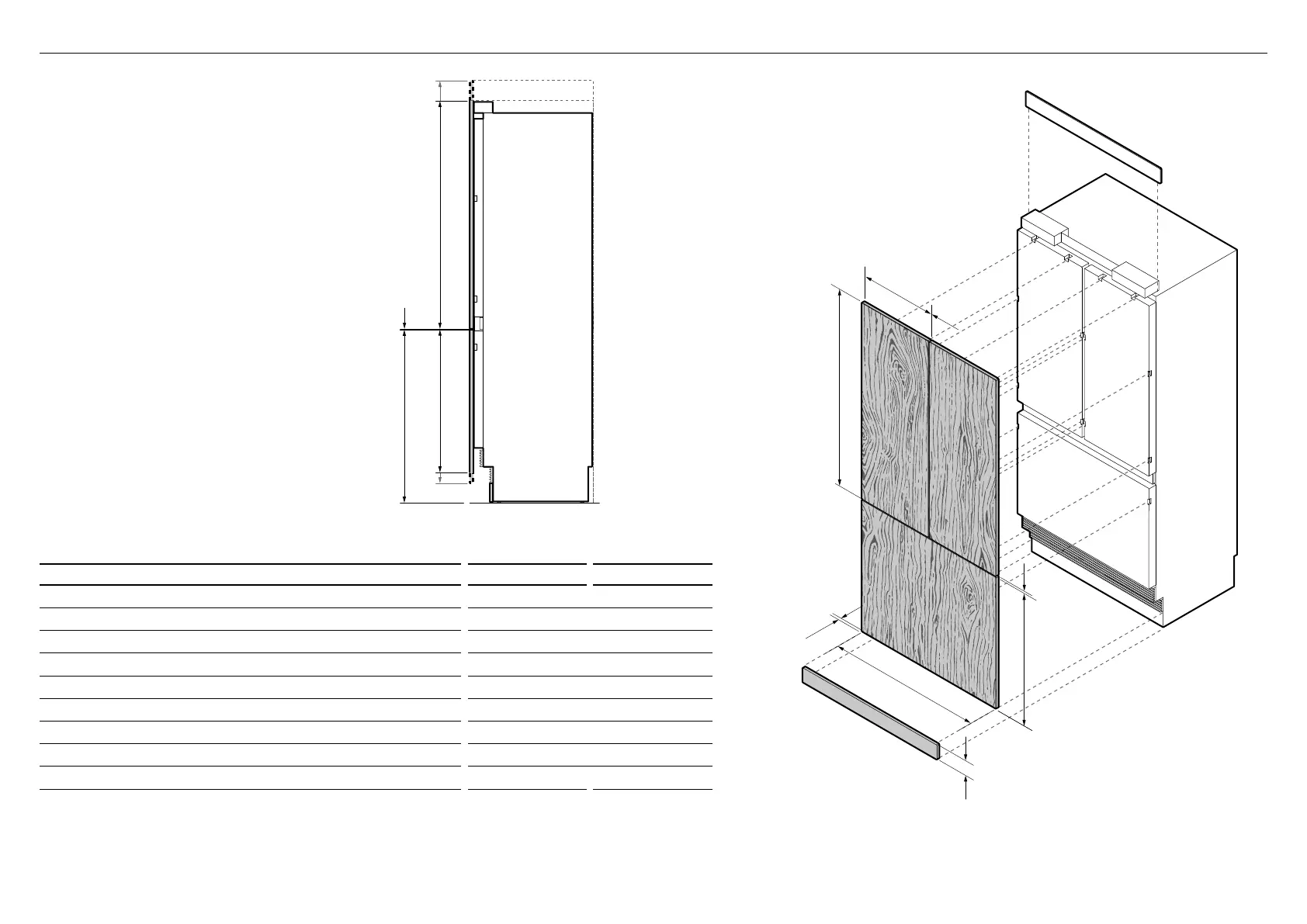

CUSTOM DOOR PANEL AND TOE KICK DIMENSIONS
