Fisher & Paykel ACTIVESMART RS36A80 Installation Guide

3

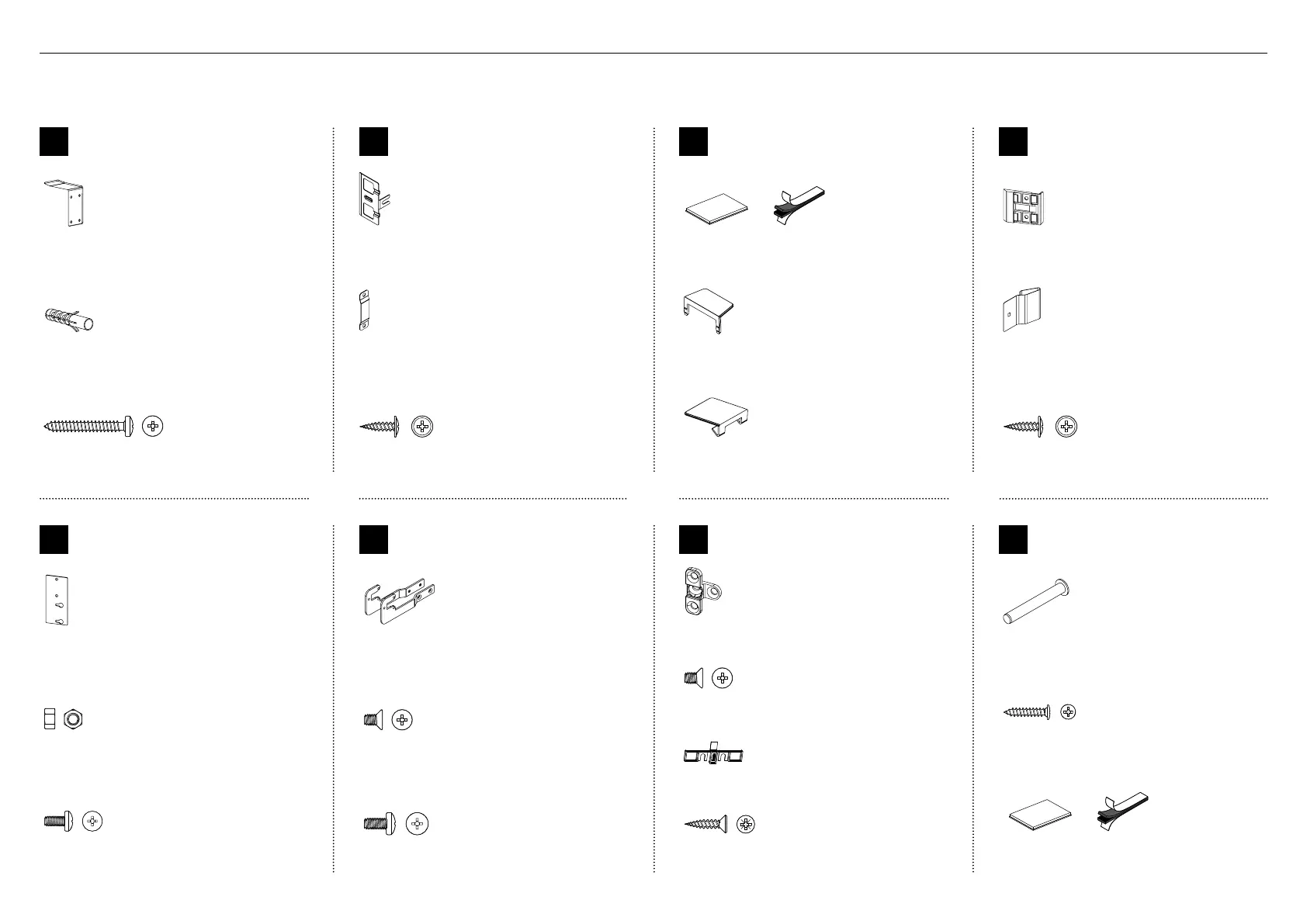

COMPONENTS
Internal box (Installation kit)
Located inside the appliance
E
Top trim
install kit
Cabinet top trim bracket
(2)
M5 Nut
M5 Nut
M5 nut
(4)
M5 x 10 Pan Head Philips Screw
M5 x 10 Pan Head Philips Screw
M5x8 cross-head screw
(4)
G
Fixing bracket
install kit
Fixing bracket
(4)
M5 x 8 Countersunk Philips Screw
M5 x 8
Countersunk
Philips Screw
M5x8 countersunk cross-head screw
(8)
Screw cover
(4)
#8 x 19 Countersunk Twin Thread Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8x19 twin thread screw
(8)
Z
Miscellaneous
components
Hinge limiting pin
(1)
#8 x 5/8 Pan Head Philips Screw
#8 x 5/8 Pan Head Philips Screw
#8x16 panhead screw
(3)
Dual adhesive tabs (6 per each strip)
(6)
F
Side bracket
install kit
Side base brackets (right/left)
(2)
M5 x 8 Countersunk Philips Screw
M5 x 8
Countersunk
Philips Screw
M5x8 countersunk cross-head screw
(4)
M5 x 10 Pan Head Philips Screw
M5 x 10 Pan Head Philips Screw
M5x10 cross-head screw
(10)
A
Anti-tip bracket
assemblykit
Anti-tip bracket
(1)
Masonry plug
(4)
#10x40 Pan Head Philips Screw
#10x40 Pan Head Philips Screw
10x40 cross-head screw
(4)
B
Door panel
attachmentkit
Side bracket
(10)
Side strap
(10)
#8 x 16 Mush Washer Twin Thread Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
8x16 mush washer (Custom) screw
(36)
C
Door/drawer trim
installkit
Dual adhesive tabs (6 per each strip)
(12)
Side cover
(4)
Top cover
(2)
D
Cabinet side trim
installkit
Side trim bracket
(6)
Spring clip
(6)
#8 x 16 Mush Washer Twin Thread Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
8x16 mush washer screw
(12)
